Hbt40.10.60RS Small Diesel Concrete Pump, Trailer Mounted Concrete Pump
HBT Series Trailer Mounted concrete pump Detail parameters No.DescriptionParameters1ModelHBT40.10. 60RS2Dimension (LxWxH)5500mmx1950 mm x2550 mm3Concrete output40m³/h4Concrete pressure10MPa5Diesel powerCummins 60kw6Main pumpKorea Kawasaki 1407Main cylinder stroke1200mm8Main cylinder diamet......
Send Inquiry
Product Description
HBT Series Trailer Mounted concrete pump
Detail parameters
Detail pictures
Characteristics:
1. Main hydraulic pumps: Korea Kawasaki product, all reversing valves, all hydraulic hoses and couplers are imported products. Diesel engine is Cummins 60kw.

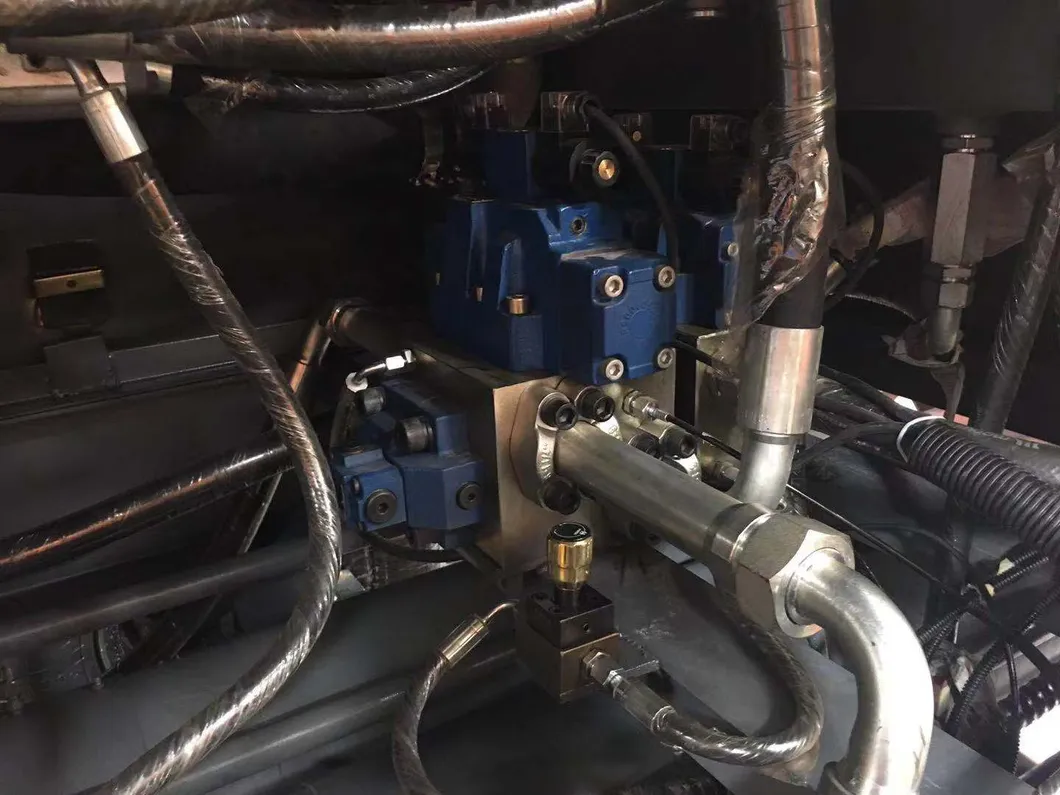

2. The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact.
3. The counter force on specially designed "S" valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
4. Reliable master oil cylinder and concrete cylinder can be normally operated for at least 30,000 m3.
5. Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
6. The open loop of the hydraulic system is air cooled to keep the oil temperature below 60 ºC so as to ensure the stability of the system.
7. Control mode: manual operation and wire remote control.

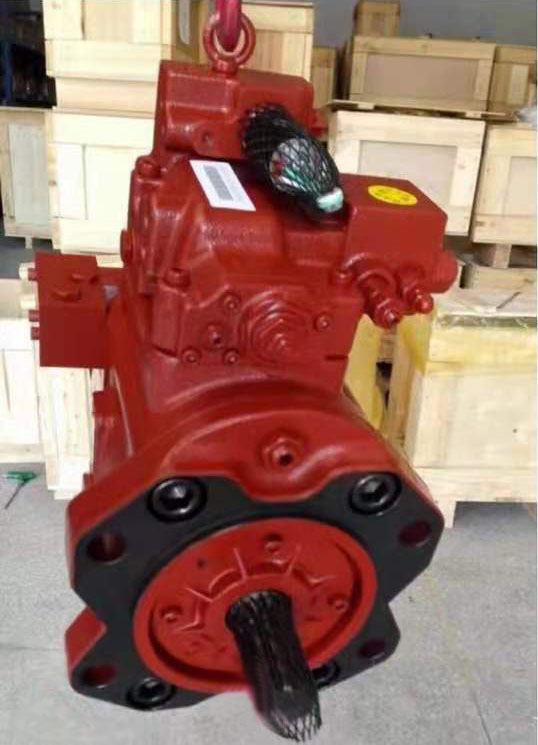

Kawasaki main pump and 60kw Cummins diesel engine
100m pipes is optional.
Shipping and delivery
Detail parameters
| No. | Description | Parameters |
| 1 | Model | HBT40.10. 60RS |
| 2 | Dimension (LxWxH) | 5500mmx1950 mm x2550 mm |
| 3 | Concrete output | 40m³/h |
| 4 | Concrete pressure | 10MPa |
| 5 | Diesel power | Cummins 60kw |
| 6 | Main pump | Korea Kawasaki 140 |
| 7 | Main cylinder stroke | 1200mm |
| 8 | Main cylinder diameter | 100/70mm |
| 9 | Delivery cylinder length | 1200mm |
| 10 | Delivery cylinder diameter | 180mm |
| 11 | Hopper height | 1.5m |
| 12 | Hydraulic circuit form | Opened-circuit |
| 13 | Control model | Manual/remote |
| 14 | Cooling method of hydraulic oil | Air cool + hydraulic drive |

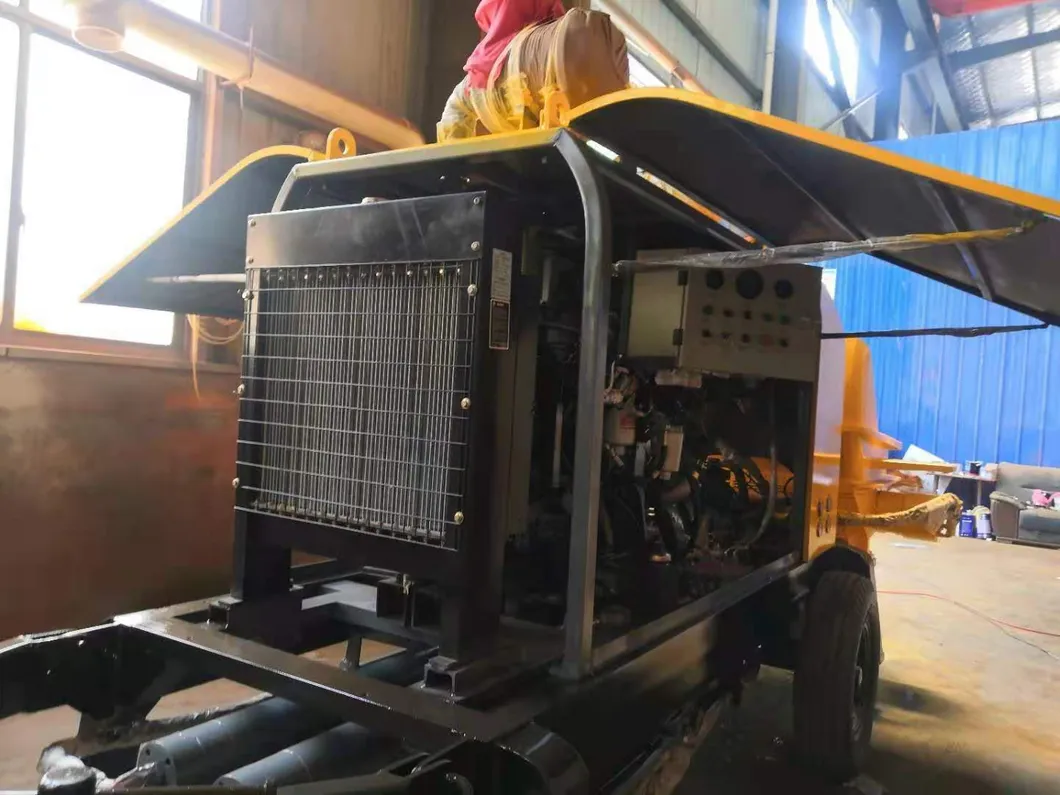

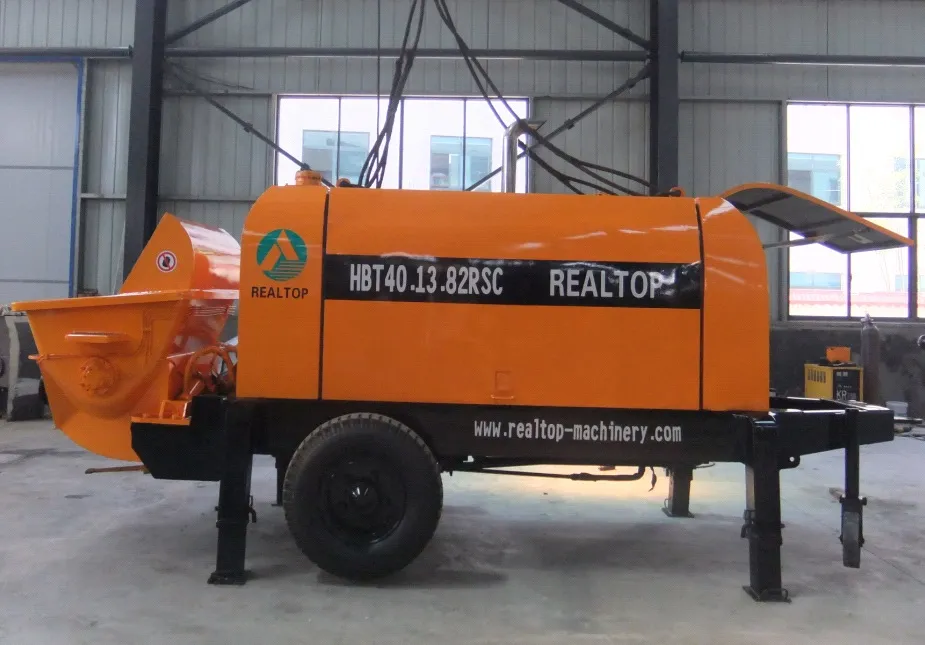

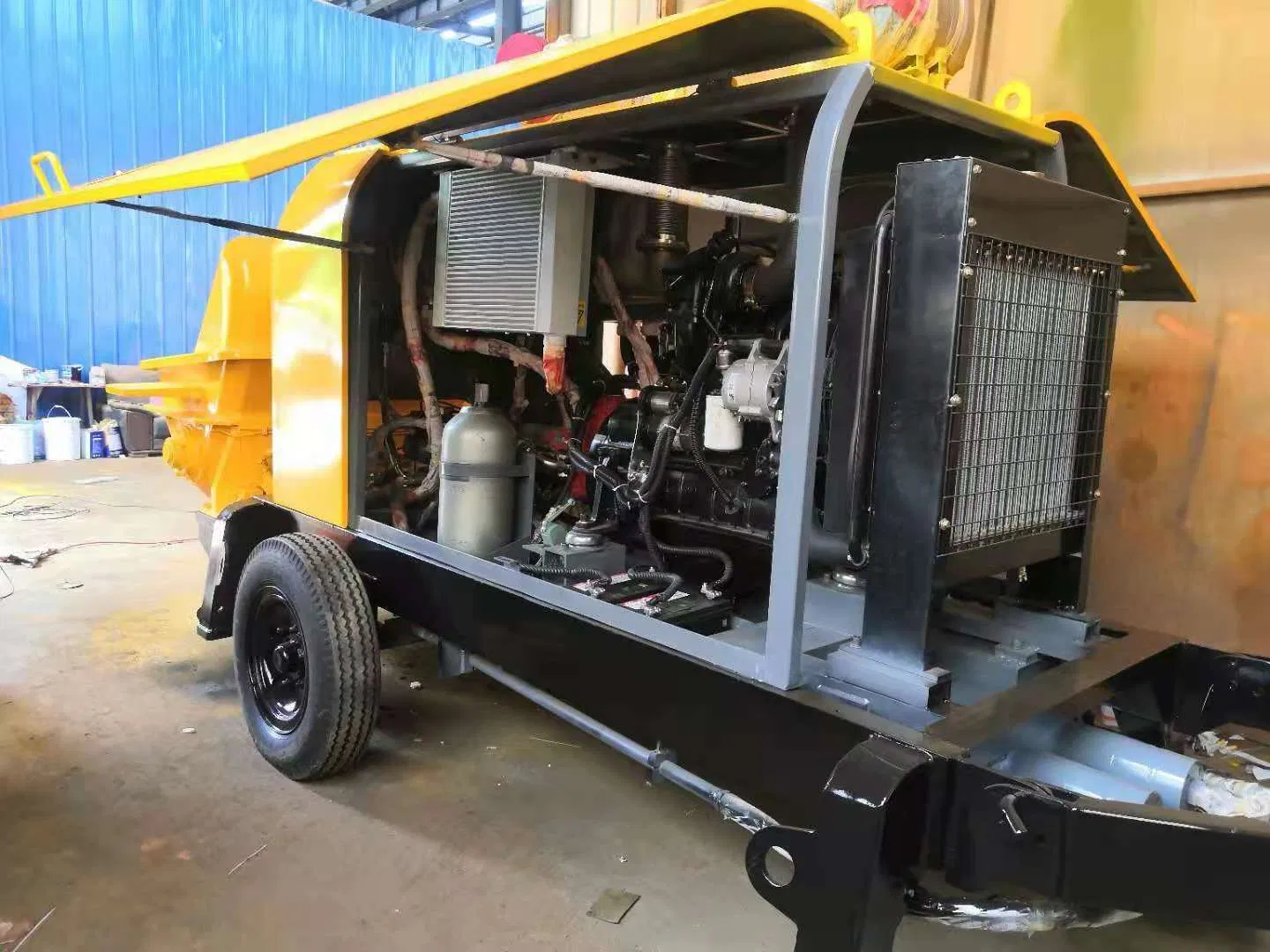

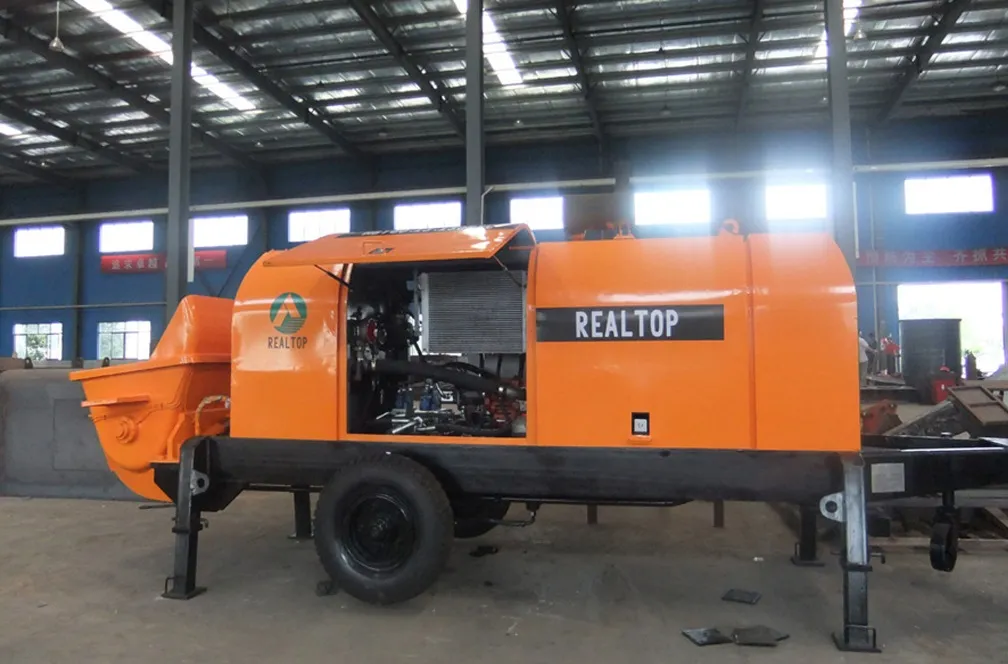

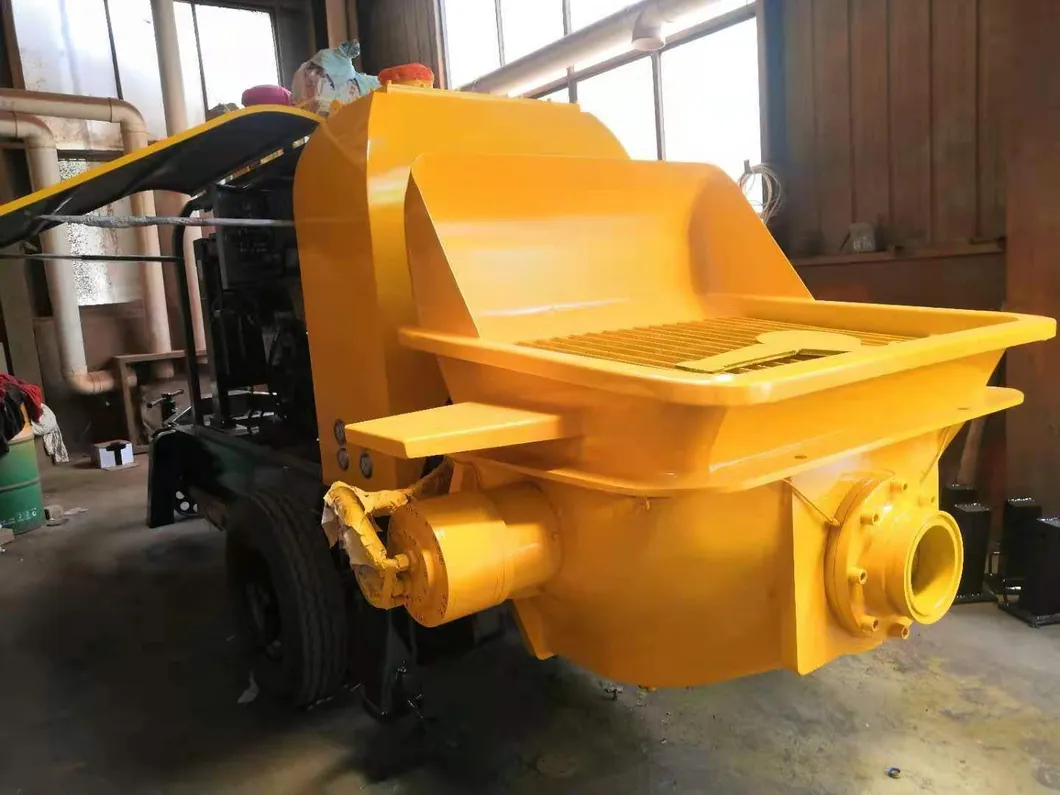

Detail pictures
Characteristics:1. Main hydraulic pumps: Korea Kawasaki product, all reversing valves, all hydraulic hoses and couplers are imported products. Diesel engine is Cummins 60kw.
2. The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact.
3. The counter force on specially designed "S" valve is received by hopper wall to assure the service life of goggle plate and cutting ring.
4. Reliable master oil cylinder and concrete cylinder can be normally operated for at least 30,000 m3.
5. Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
6. The open loop of the hydraulic system is air cooled to keep the oil temperature below 60 ºC so as to ensure the stability of the system.
7. Control mode: manual operation and wire remote control.

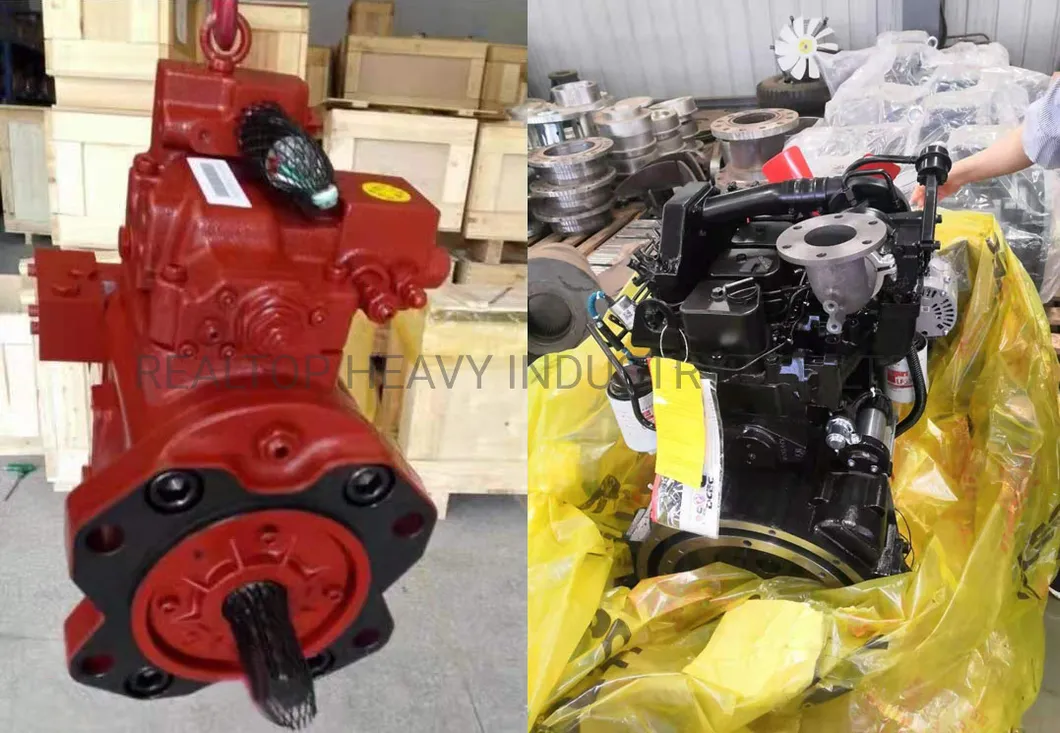

Kawasaki main pump and 60kw Cummins diesel engine100m pipes is optional.| No. | Name | Specificaton | Unit | Qty | Total Length (M) |
| 1 | Straight pipe | ¢125A*3m | Stick | 28 | 84 |
| 3 | ¢125A*2m | Stick | 3 | 6 | |
| 4 | ¢125A*1m | Stick | 3 | 3 | |
| 6 | Hi-pressure Hose | ¢125A*3m | Stick | 1 | 3 |
| 7 | Syphon | ¢125A90 R500 | Stick | 2 | 1 |
| 8 | ¢125A90 R1000 | Stick | 2 | 3 | |
| 10 | ¢125A45 R1000 | Stick | 2 | 2 | |
| 11 | ¢125A30 R500 | Stick | 2 | 0.5 | |
| 12 | ¢125A15 R1000 | Stick | 2 | 0.5 | |
| 13 | Pipe clamp | 125A pipe clamp assembly | Piece | 50 | |
| 14 | Rubber ring | Bag | 1 | 100pcs | |
| 15 | Tapered header | Stick | 1 | 1.2 | |
| Total length | 104.2 | ||||

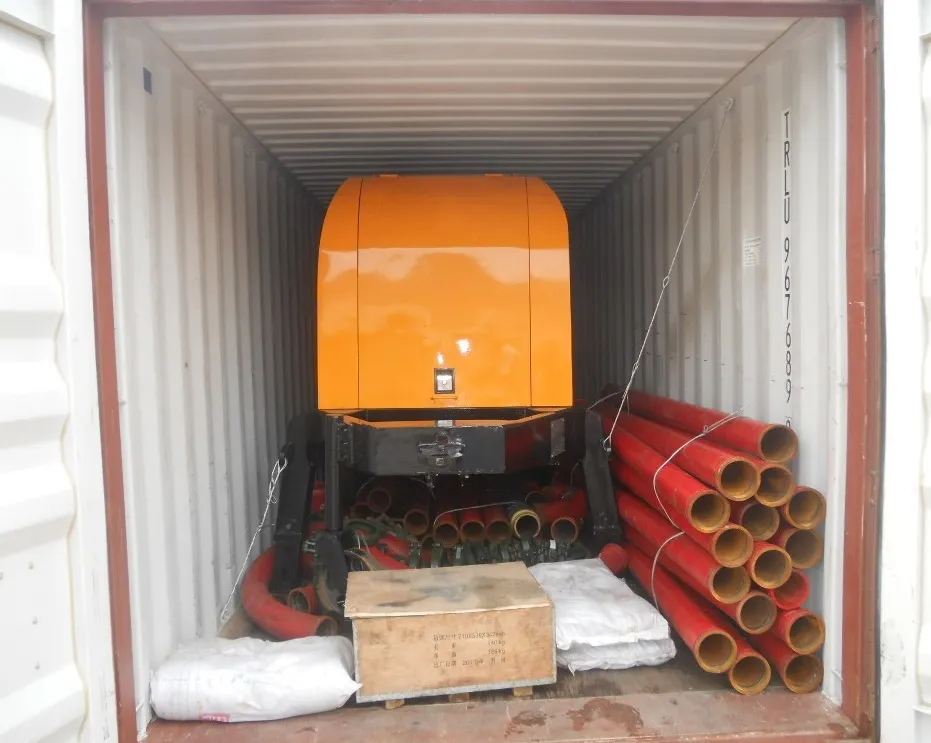

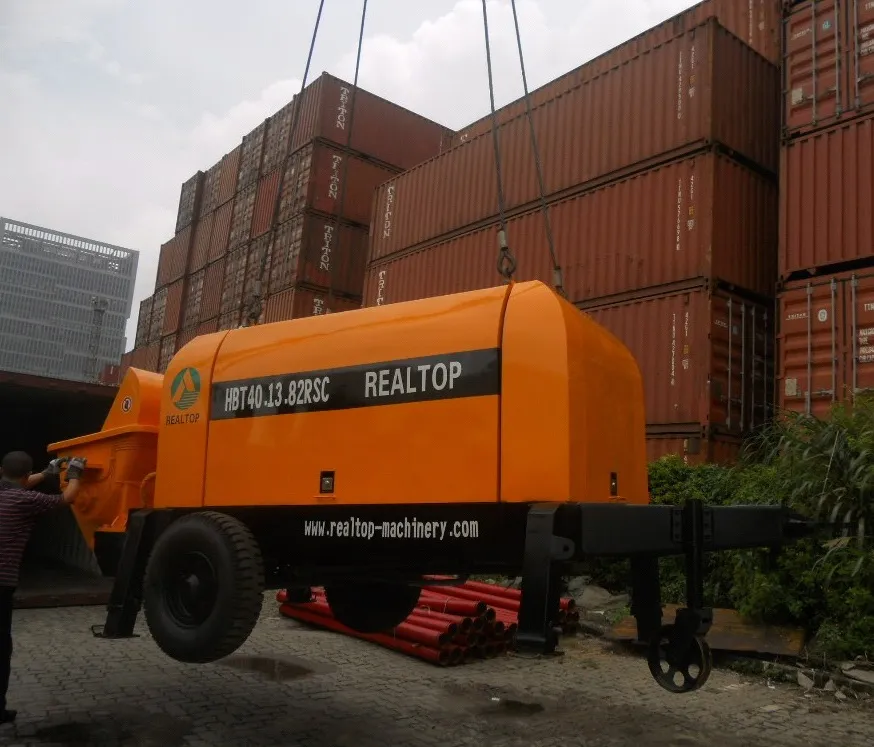

Shipping and delivery
