Product Description

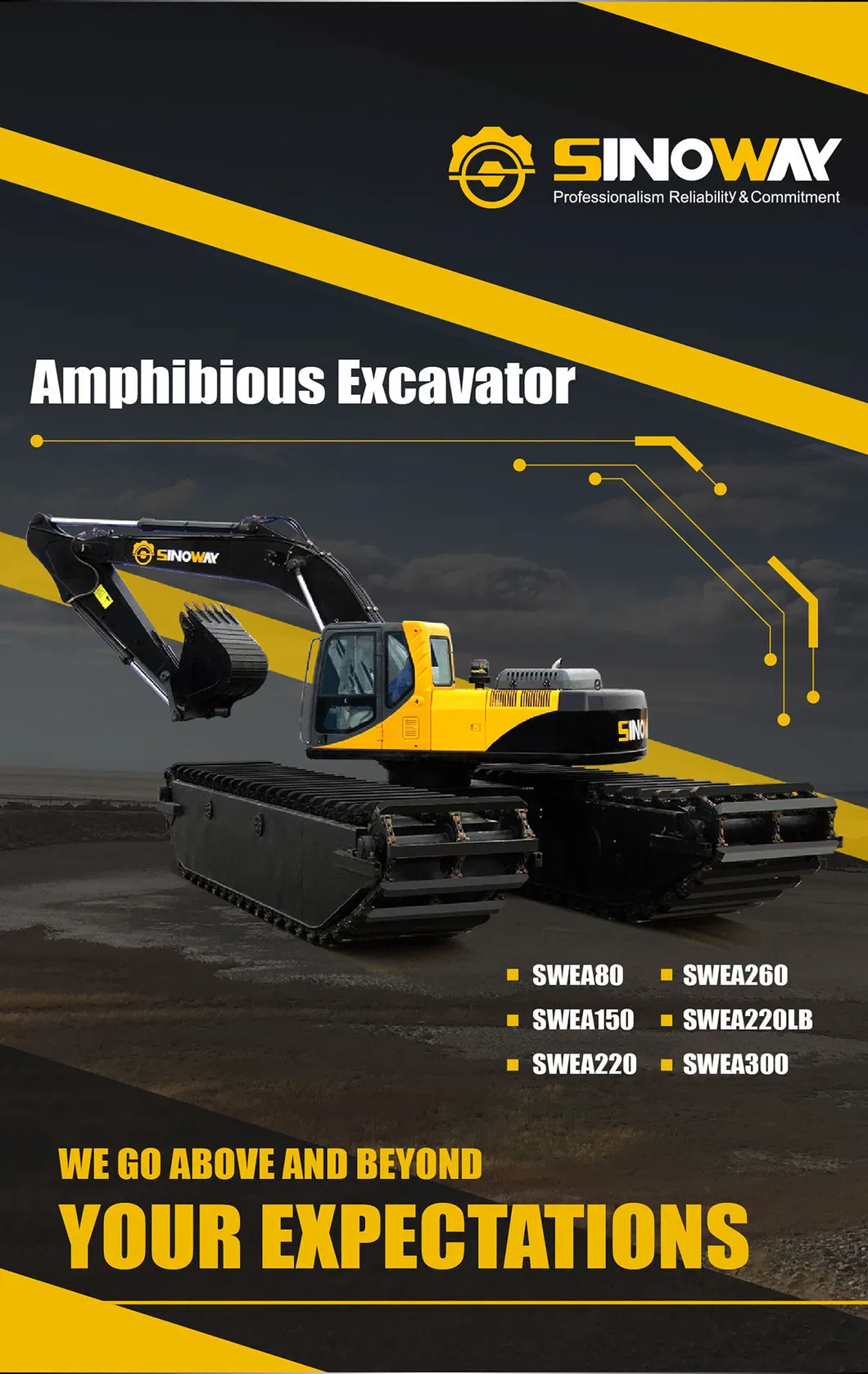

SINOWAY Marsh Excavator

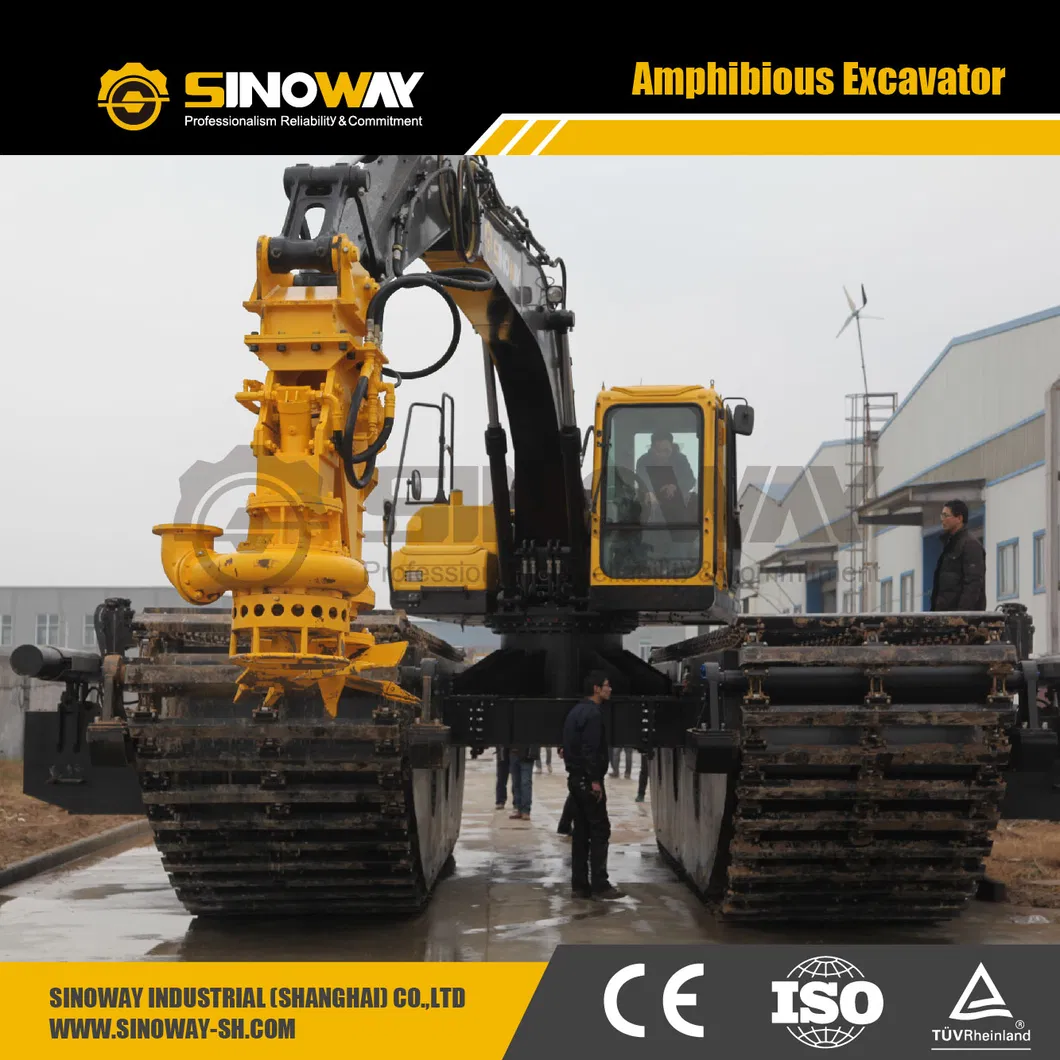

New Crawler Floating Excavator with Dredging Pump and Hydraulic Spud Piles

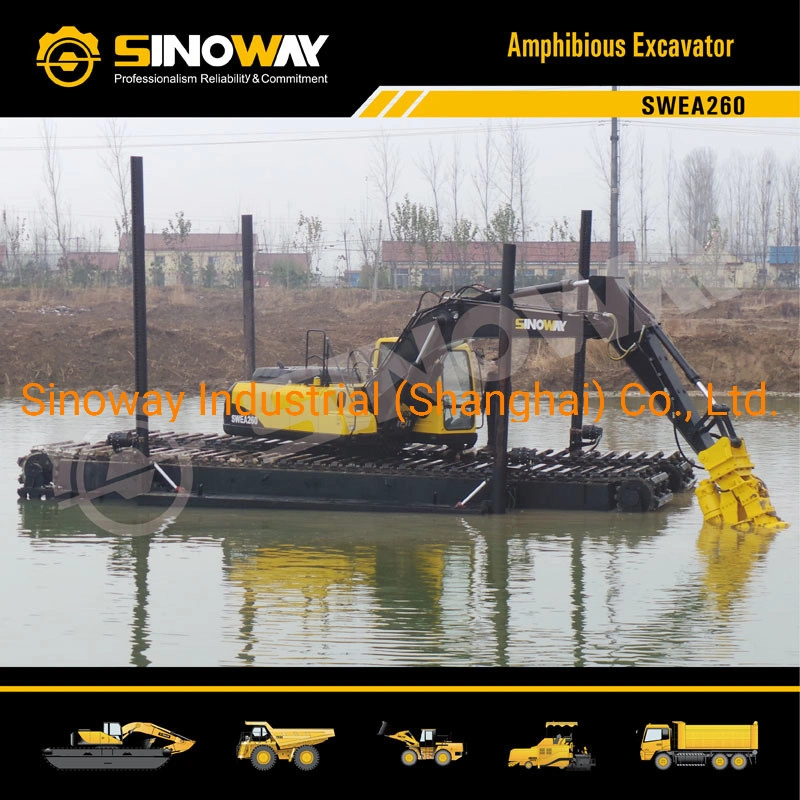

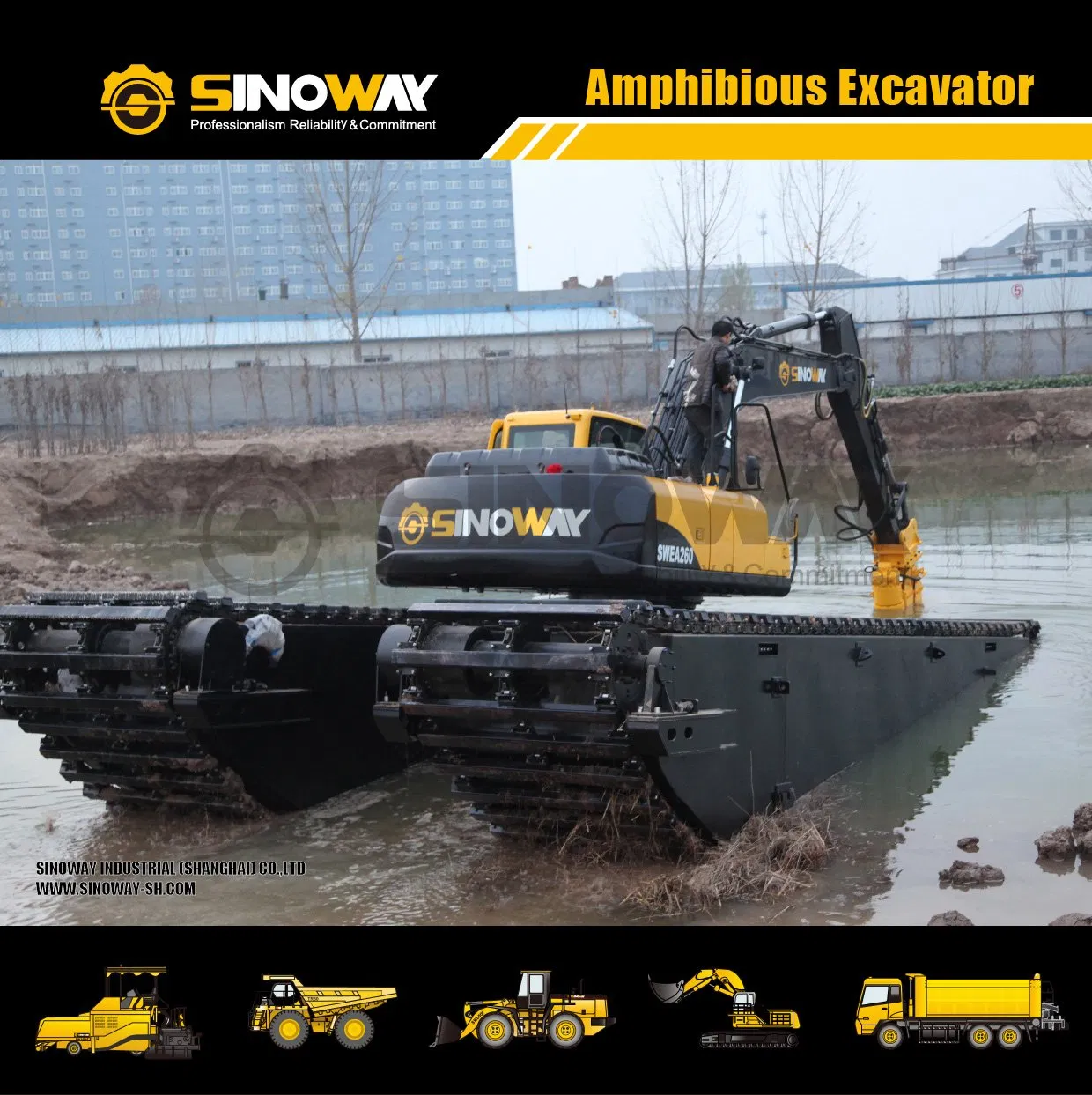

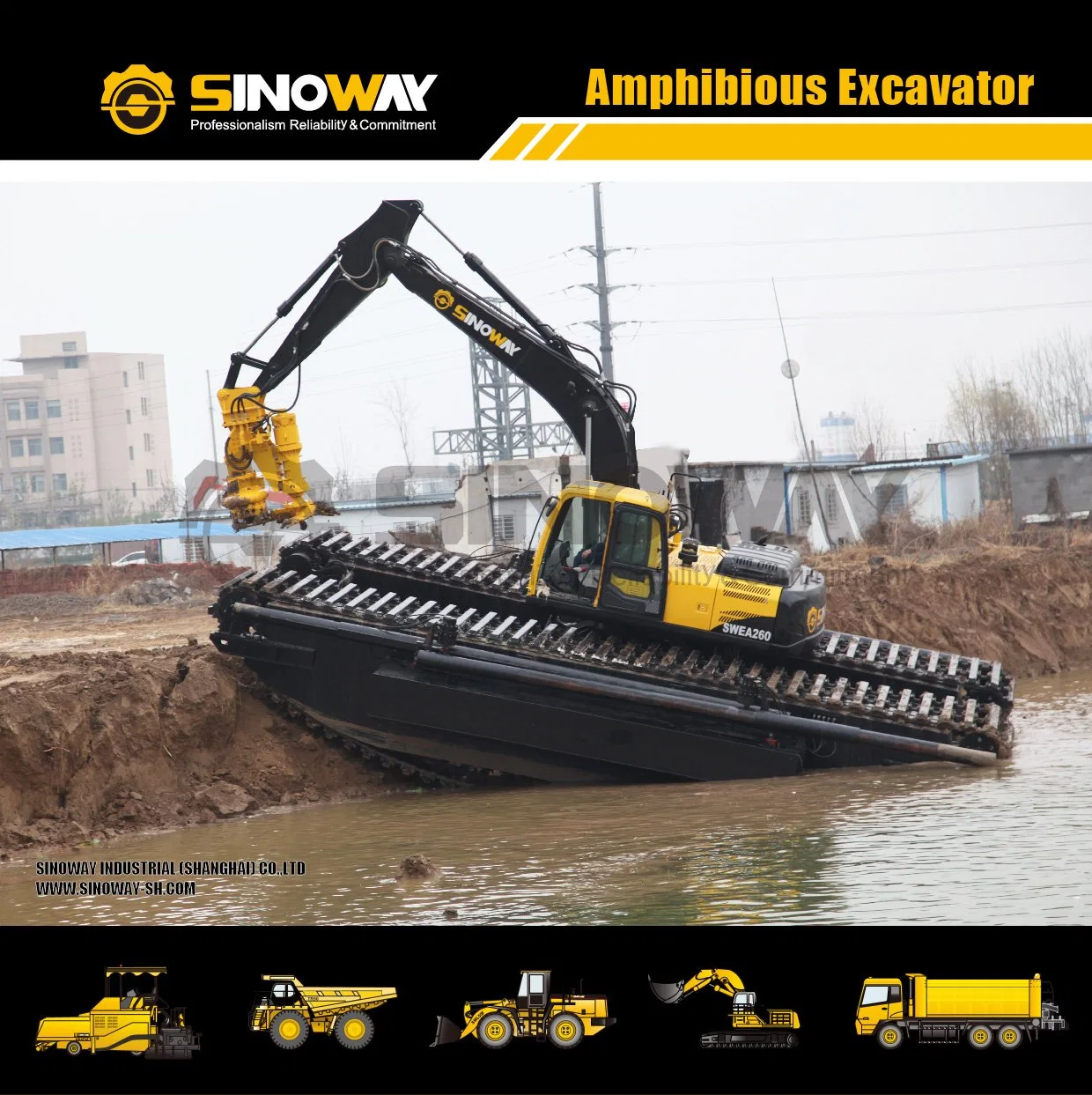

Product Show

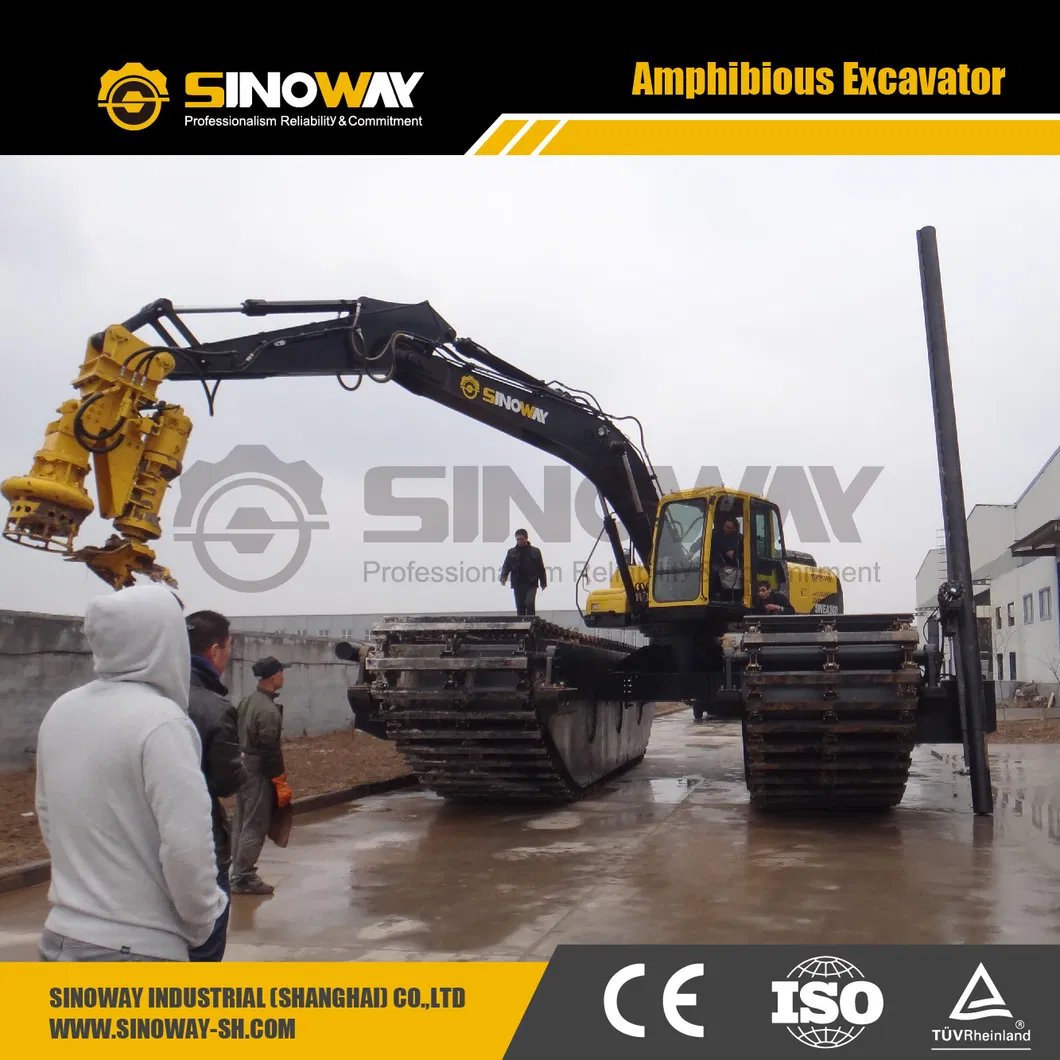

New Crawler Floating Excavator with Dredging Pump and Hydraulic Spud Piles
New Crawler Floating Excavator with Dredging Pump and Hydraulic Spud Piles

Machine Introduction

New Crawler Floating Excavator with Dredging Pump and Hydraulic Spud Piles
New Crawler Floating Excavator with Dredging Pump and Hydraulic Spud Piles

Specifications

Engine
ModelCummins/Isuzu
TypeSix-cylinder,water-cooled turbocharged,mechanical injection
Rated power125KW
Rated speed2100rpm
Main Technical Specification
Operating weight42000Kg
Standard bucket capacity1.1m³
Slewing speed 11rpm11rpm
Stick digging force110KN
Bucket digging force150KN
Main Features
Tracked pontoon structure
Big torque travelling device
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pumpKAWASAKI
Main valveKAWASAKI
MotorKAWASAKI
Hydraulic flow rate2x235L/min
Hydraulic pressure32MPa
Travelling System
Travelling speed0~5.4km/h
Grade ability65%
Ground pressure0.0135MPa
No. of chains3
Dimensions
Overall length12100mm
Overall width6000mm
Overall height3900mm
Ground clearance1192mm
Length of pontoon10200mm
Width of pontoon1760mm
Height of pontoon1700mm
Operating Scope
Stick length3000mm
A: Max. cutting height10980mm
B: Max. dumping height8140mm
C: Max. digging depth6940mm
D: Max. reach10290mm
