C6246ex1500- 460X1500mm Universal Heavy Duty Big Bore Horizontal Economic Lathe Machine
1.Pictures2. ParametersSPECIFICATIONC6246E/1500MMCAPACITYMax.swing over bed460mmMax.swing over cross slide230mmMax.swing over gap570mmEffective length of gap200mmCenter Distance1500mmBed Width360mmHEADSTOCKSpindle hole80mmSpindle noseD1-8Spindle taperMT7Spindle speed(Number)(12steps)40-2000rpmFEEDS ......
Send Inquiry
Product Description

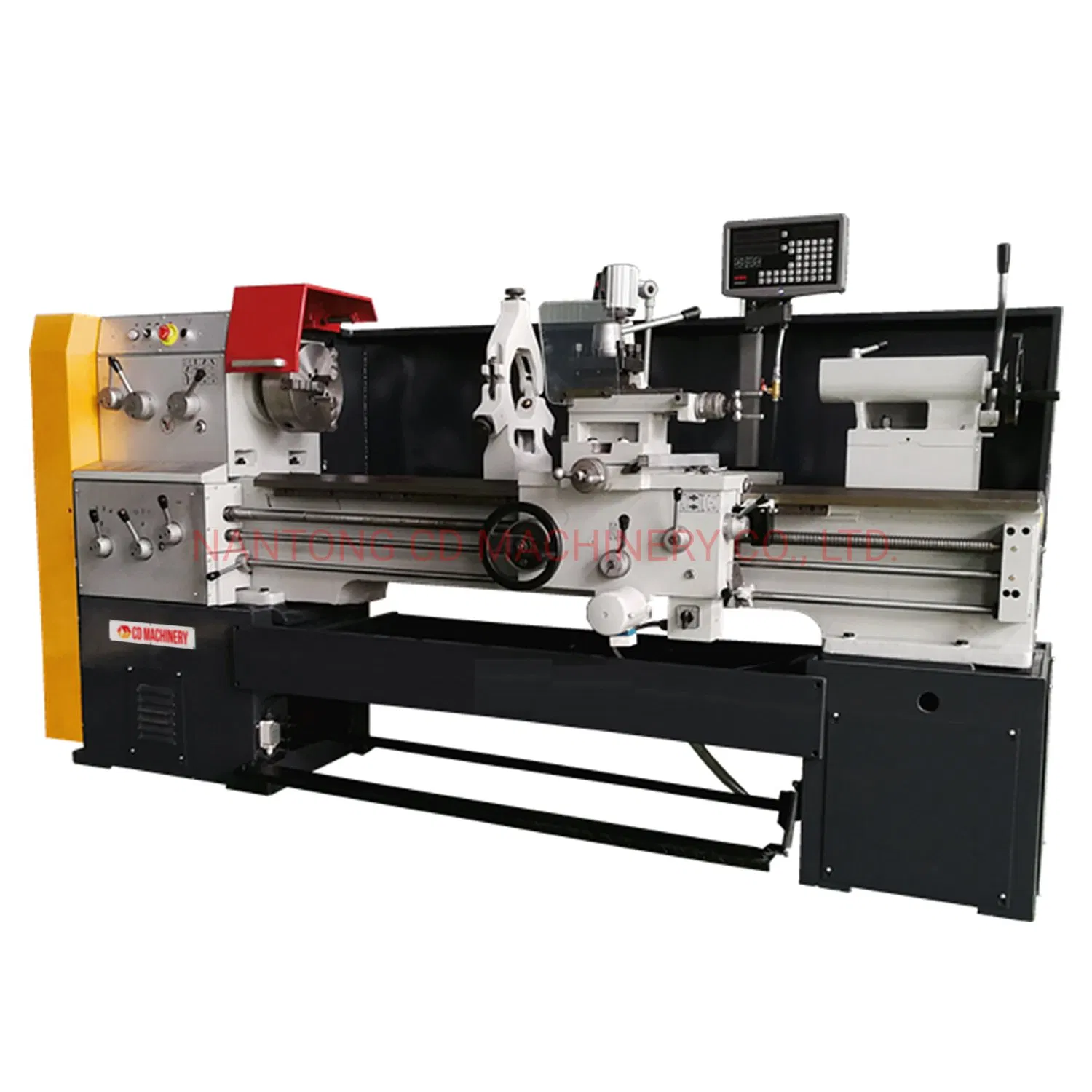

1.Pictures
2. Parameters
3. Accessories
4. Feature
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
*GEARS PRECISELY GROUND TO REDUCE NOISE.
*SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.
*RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
*INTEGRAL CASTING BASE.
5. Dellivery Picture
6.Company & Factory
Nantong CD Machinery Co., Ltd. is located in the beautiful city of Nantong, about 100 kilometers away from Shanghai.Our main products are : CNC grinding Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO certificates .
Our company formed a good win-win relationship with domestic and foreign sales agents.Our company not only has formed a mature sales network in China, but also signed sales agency contracts with copanies from more than 30 foreign countries, and our machines has been exporting to Europe, Asia, Africa, South America, North America, Australia and other zones ,and have been trusted and praised by vast number of users.
Our company focuses on strict and effective management,system, strict audit machines' quality ,try not to let out a detail, and make the machines more refined and finer .Service is our eternal theme of the pursuit.
Our company can also procide OEM and ODM service .Is always adhering to the "QUALITY IS THE FIRST" purposes, to provide better quality machines ,more efficient and thoughtful after-sale service to customers . With your support, we will make great progress. Let's join hands and create a better future!
Welcome to visit us!
7. FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10~20 days if the goods are in stock.Or it is 30~60 days if the goods aer not in stock,according to your quantity.
Q: Do you provide samples?is it free or extra?
A: Yes,we could offer the sample,but need extra cost.
Q: What is your terms or payment?
A: 30% T/T in advance,balance before shippment.
2. Parameters
| SPECIFICATION | C6246E/1500MM | ||
| CAPACITY | Max.swing over bed | 460mm | |
| Max.swing over cross slide | 230mm | ||
| Max.swing over gap | 570mm | ||
| Effective length of gap | 200mm | ||
| Center Distance | 1500mm | ||
| Bed Width | 360mm | ||

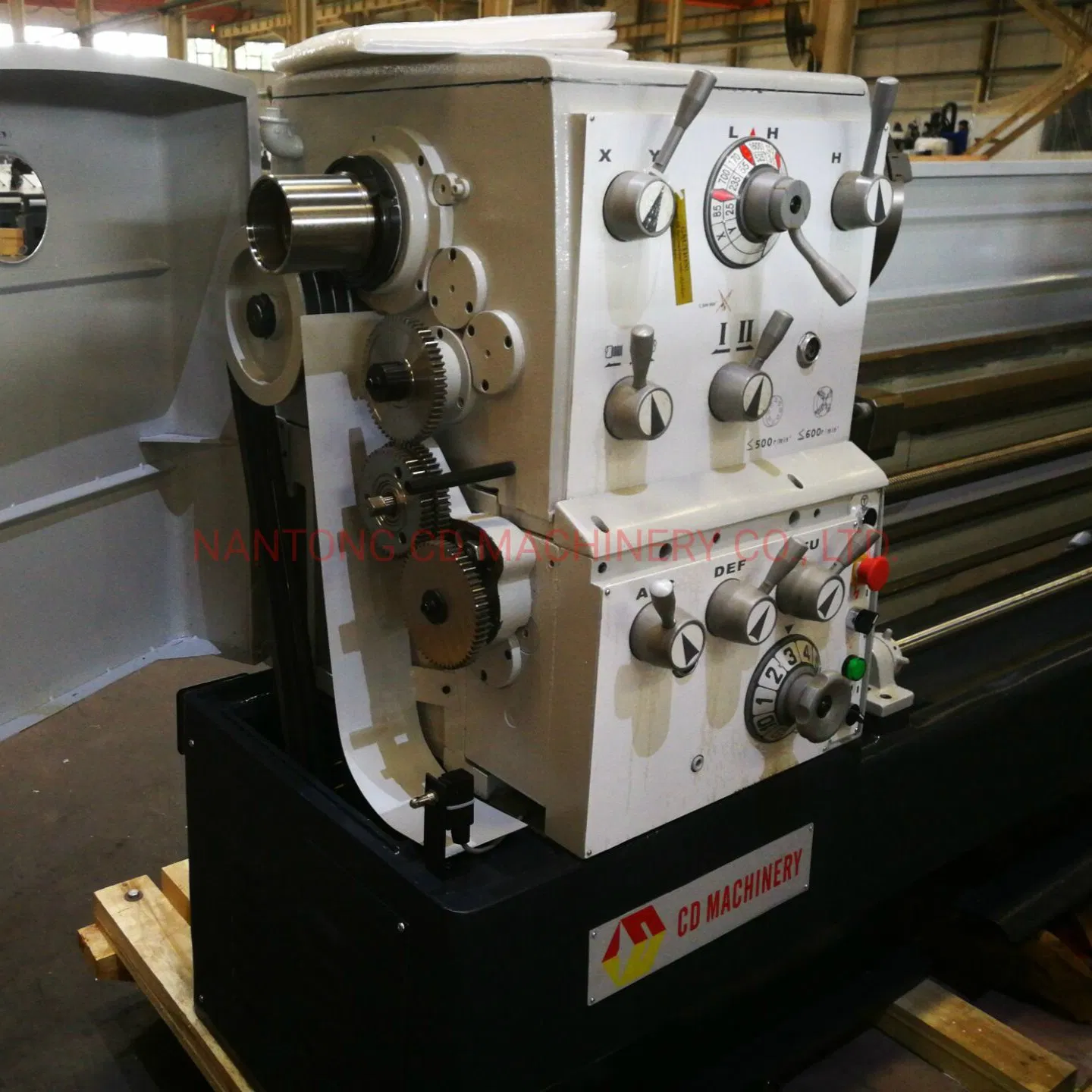

| HEADSTOCK | Spindle hole | 80mm | |
| Spindle nose | D1-8 | ||
| Spindle taper | MT7 | ||
| Spindle speed(Number) | (12steps)40-2000rpm | ||

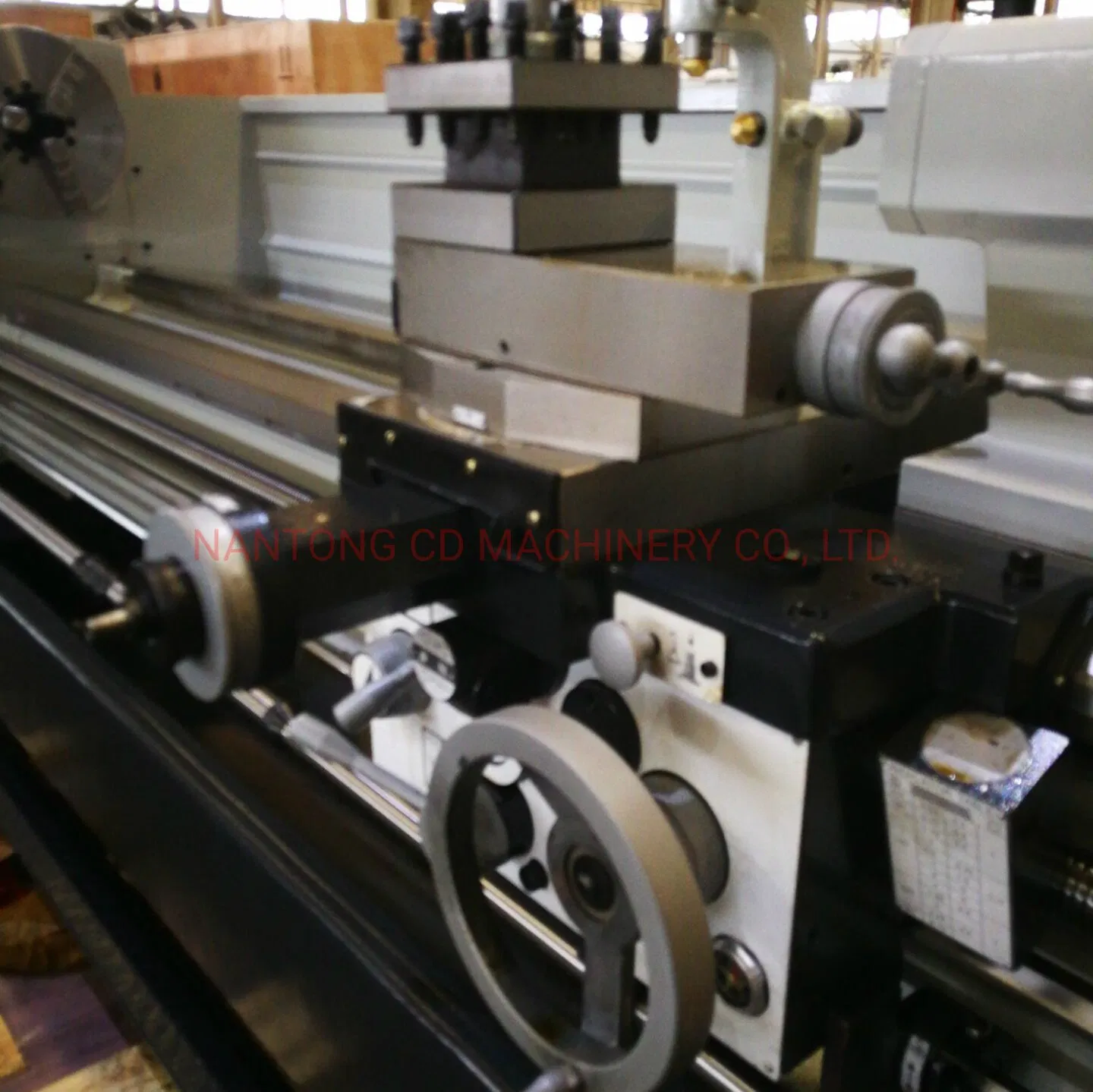

| FEEDS AND THREADS | Max.travel of top slide | 95mm | |
| Max.travel of cross slide | 200mm | ||
| Max.size of toolshank | 20*20mm2 | ||
| Longitudinal feeds range | 36kinds 0.0832-4.66mm/r | ||
| Cross feeds range | 36 kinds 0.048-2.69mm/r | ||
| Metric threads range | 29kinds 0.25-14mm | ||
| Inch threads range | 33kinds 2-40inch | ||
| Moudle threads range | 17kinds 0.5-3.5mπ | ||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | |
| Taper of tailstock sleeve | MT4 | ||
| Max.travel of tailstock | 140mm | ||
| MOTOR | Main drive motor | 4KW | |
| Coolant pump motor | 90W | ||
| PACKING | L*W*H(1000mm) | 243*113*175cm | |
| WEIGHT | N.W/G.W(1000mm) | 1600/1900kgs | |
3. Accessories
| ACCESSORIES | |||
| STANDARD ACCESSORIES | |||
| PART:INSTALL ON THE LATHE | |||
| Work lamp | |||
| Coolant system | |||
| Thread-cutting dial | |||

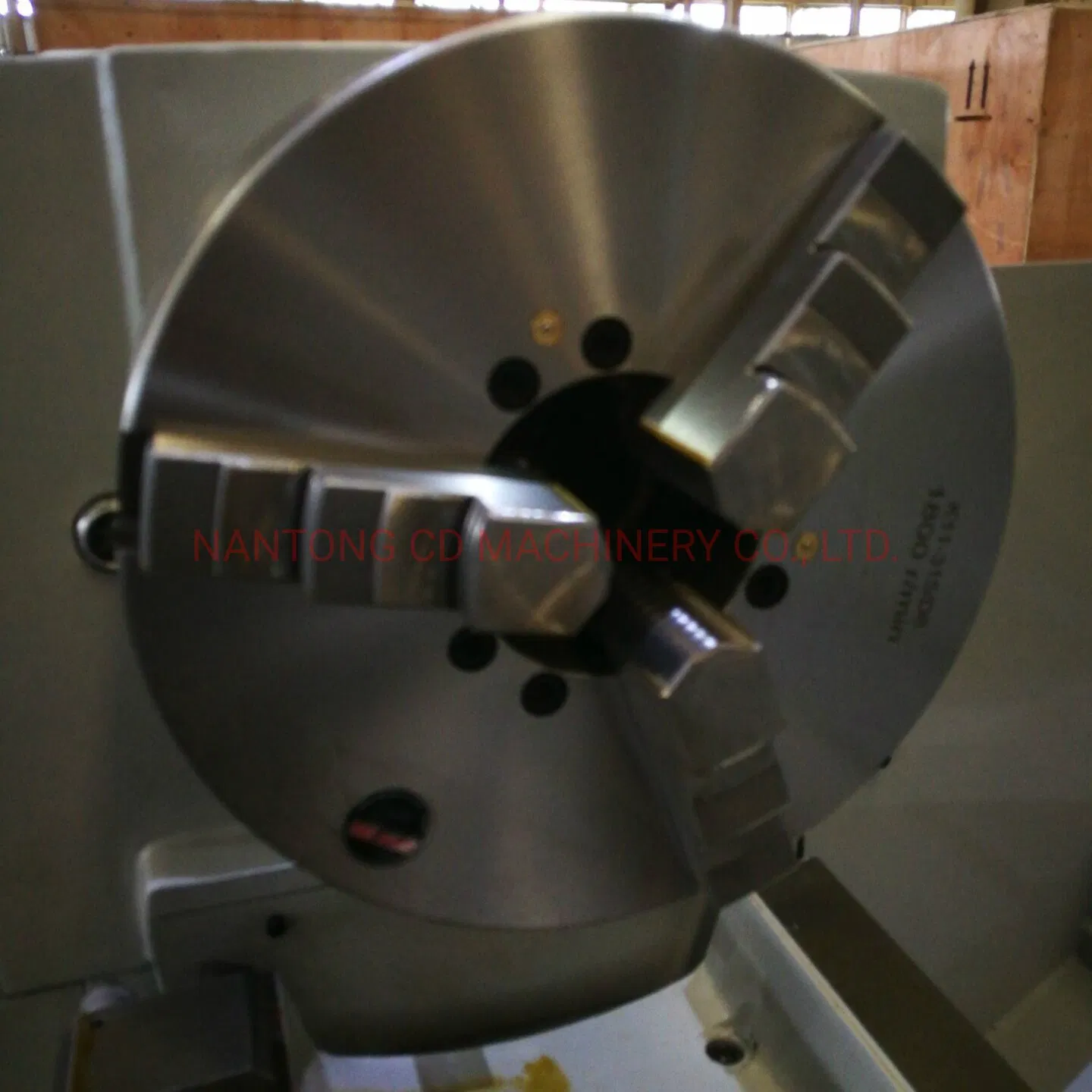

| 3-jaw chuck(Φ200mm) | |||
| Longitudinal touch stop | |||
| Steady rest & follow rest | |||
| Full-length splash guard | |||
| Foot brake and brake ribbon | |||

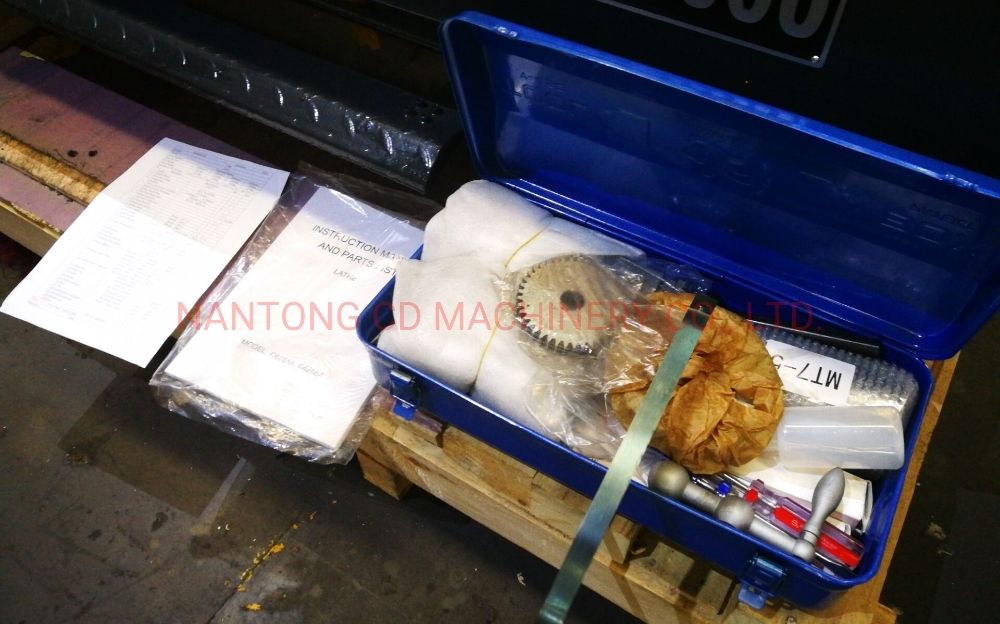

| PART:INSIDE THE PACKAGE WITH THE LATHE | |||
| Oil gun | |||
| Paddings | |||
| Face plate | |||
| Drive plate | |||
| Change gears | |||
| 4-jaw chuck (Φ250mm) | |||
| Dead centre and centre sleeve | |||
| One whole set spanner and tool box | |||
| Operation manual | |||
| SPECIAL USE ACCESSORIES(OPTIONAL PIRCE) | |||
| Rapid travel | |||
| Drill chuck set | |||
| Live centre(MT4) | |||
| Taper cutting function | |||
| 2axis or 3axis Digital readouts(SINO) | |||
| USA type Quick change tool post | |||
| Europe type Quick change tool post | |||
| Italy type Quick change tool post | |||
| CE-conformity(Chuck guard,Toolpost guard and leadscrew guard) | |||
| Cutting tool holders set(7pcs or 9pcs) |
4. Feature
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
*GEARS PRECISELY GROUND TO REDUCE NOISE.
*SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.
*RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
*INTEGRAL CASTING BASE.

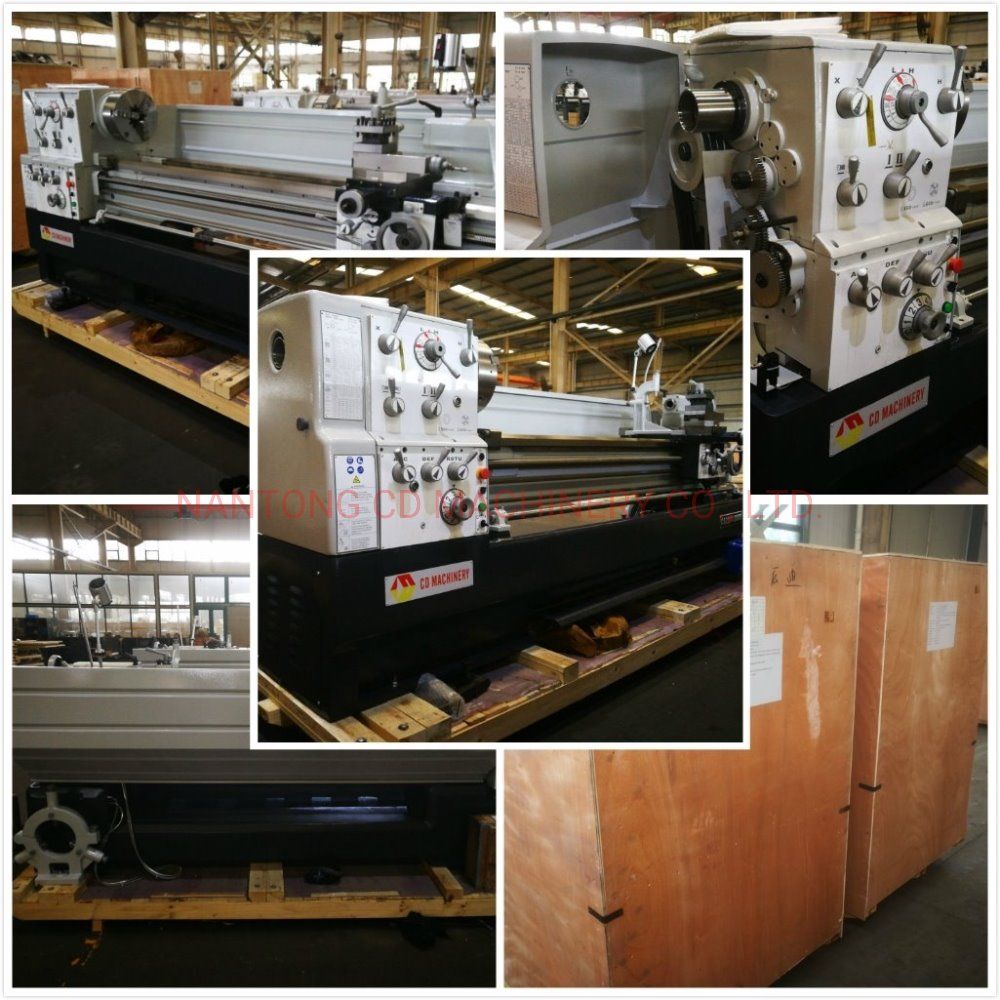

5. Dellivery Picture

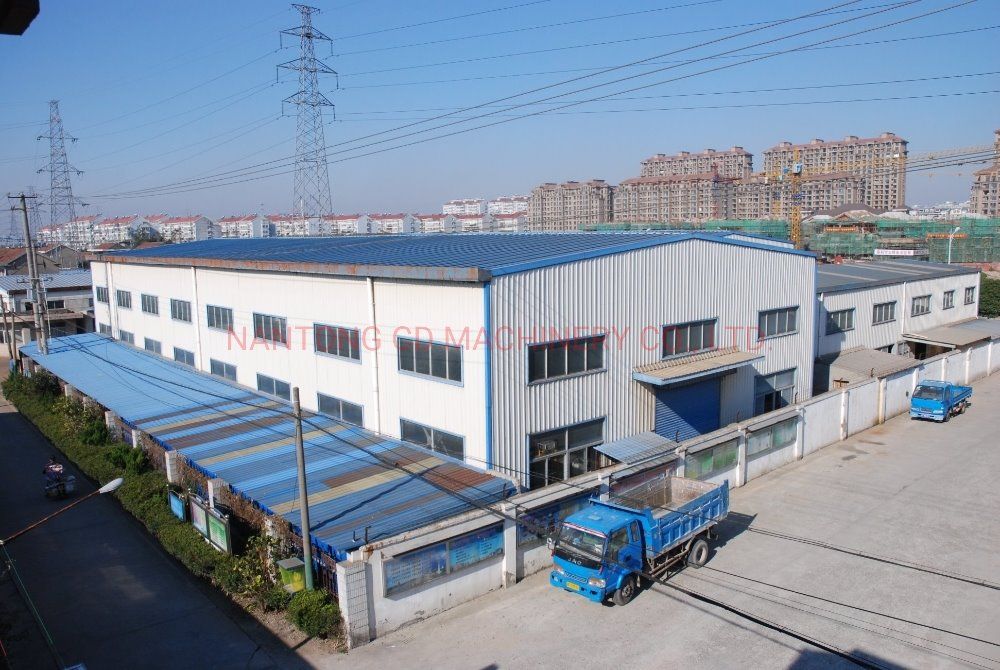

6.Company & Factory
Nantong CD Machinery Co., Ltd. is located in the beautiful city of Nantong, about 100 kilometers away from Shanghai.Our main products are : CNC grinding Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO certificates .
Our company formed a good win-win relationship with domestic and foreign sales agents.Our company not only has formed a mature sales network in China, but also signed sales agency contracts with copanies from more than 30 foreign countries, and our machines has been exporting to Europe, Asia, Africa, South America, North America, Australia and other zones ,and have been trusted and praised by vast number of users.
Our company focuses on strict and effective management,system, strict audit machines' quality ,try not to let out a detail, and make the machines more refined and finer .Service is our eternal theme of the pursuit.
Our company can also procide OEM and ODM service .Is always adhering to the "QUALITY IS THE FIRST" purposes, to provide better quality machines ,more efficient and thoughtful after-sale service to customers . With your support, we will make great progress. Let's join hands and create a better future!
Welcome to visit us!
7. FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10~20 days if the goods are in stock.Or it is 30~60 days if the goods aer not in stock,according to your quantity.
Q: Do you provide samples?is it free or extra?
A: Yes,we could offer the sample,but need extra cost.
Q: What is your terms or payment?
A: 30% T/T in advance,balance before shippment.
