Mini Type Drilling & Milling Machine Bench Drilling Machine/ 10" Bench Table Drilling Machine Floor Type Manual Bench Driller
Mini Type Drilling & Milling Machine Bench Drilling Machine/ 10" Bench Table Drilling Machine Floor Type Manual Bench Driller SpecificationZx16Zx20Max. Drilling dia mm1620Max.vertical milling dia mm1012Max.end milling dia. mm4050Spindle hole taperMT2MT2Spindle travel85100Distance spindle ax......
Send Inquiry
Product Description

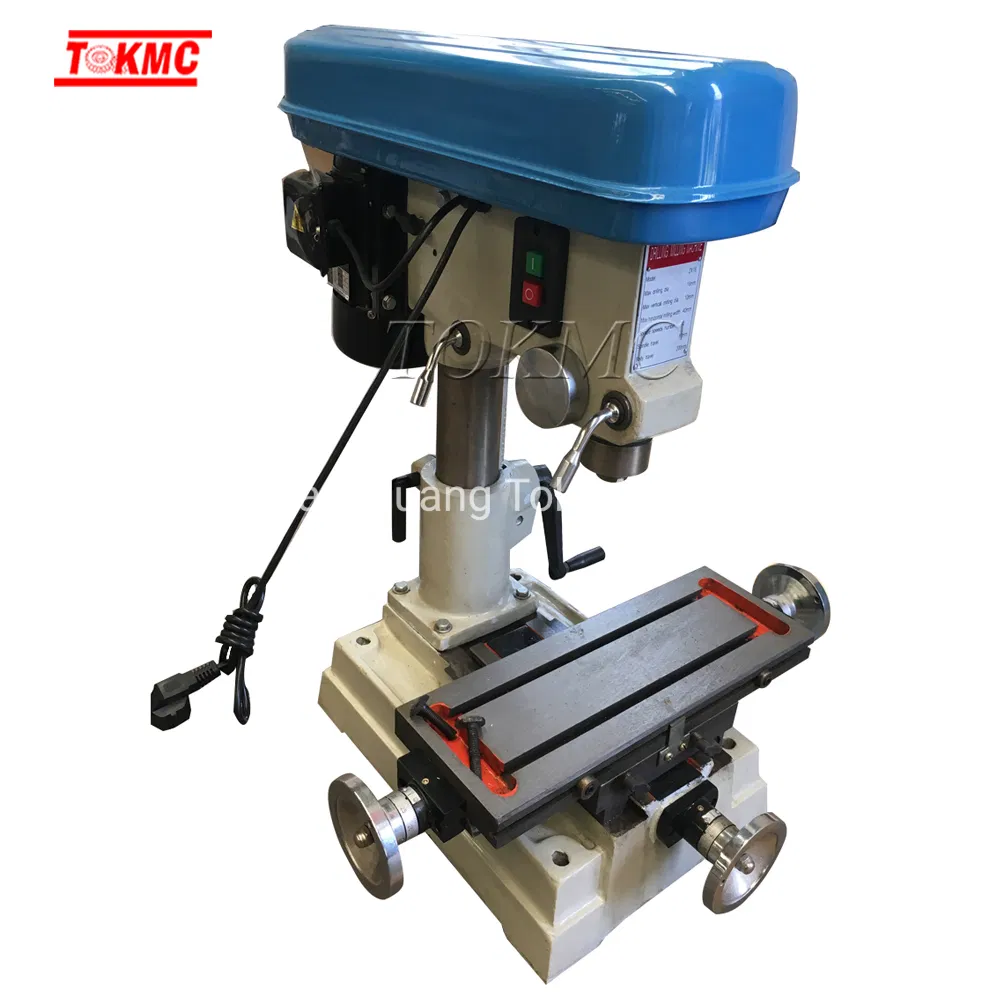

Mini Type Drilling & Milling Machine Bench Drilling Machine/ 10" Bench Table Drilling Machine Floor Type Manual Bench Driller

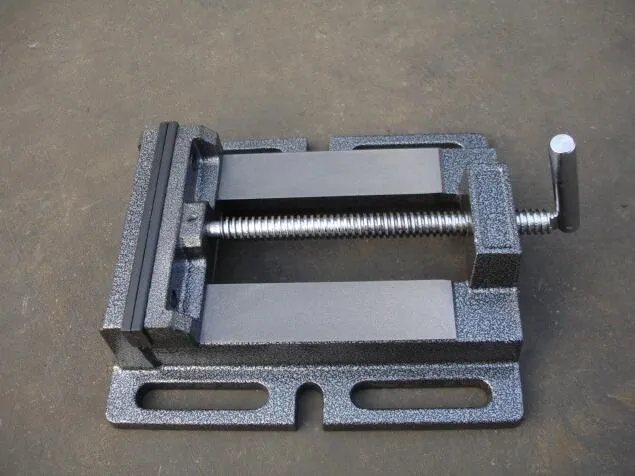

Milling drilling machine vice
| Specification | Zx16 | Zx20 |
| Max. Drilling dia mm | 16 | 20 |
| Max.vertical milling dia mm | 10 | 12 |
| Max.end milling dia. mm | 40 | 50 |
| Spindle hole taper | MT2 | MT2 |
| Spindle travel | 85 | 100 |
| Distance spindle axis to column | 182 | 200 |
| Column size | 72mm | 78mm |
| Distance spindle nose to table surface | 60-400 | 70-410 |
| Table size | 230x150 | 500x200 |
| Table travel longitudinal and transwerse | 230x150 | 300x150 |
| Body travel | 200 | 250 |
| Spindle speeds series | 12 | 12 |
| Spindle speed ranges 50hz r.p.m | 250-3200 | 250-3200 |
| Motor watt | 370 | 550 |
| Net weight/Gross weight kgs | 105/120 | 160/184 |
| Package size mm | 550x580x610 550x430x420 | 710x680x620 640x490x430 |
Milling drilling machine vice
