Product Description

Description:
YKR and ZKR Series Vibrating Screen is designed basing on our over twenty years' practical experience and local conditions. It's widely used in screening and classifying application for unconsolidated minerals and rocks in mining, building and building materials industrials. ZKR Series Vibrating Screen is usually used in materials' dehydration and desliming. The single deck, double decks, triple decks or multiple decks vibrating screens can be supplied and used for dry or wet screening applications according to different customer requests. This series of screens has advantages of smart structure, high screening efficiency and high throughput capacity, which has been proved by production practices.

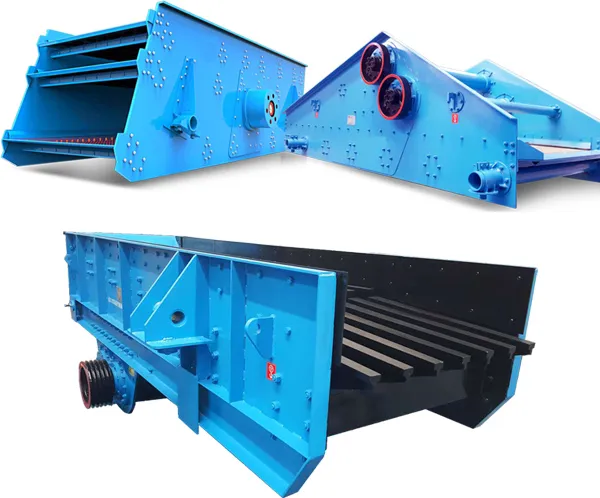

High Quality Vibrating Screen/Vibrating Feeder Mining Machine China Manufacturer

Features:
The frequency, amplitude and vibrating screen can be adjusted, which increases screening efficiency.
It can use the wire screen or polyurethane screen (tension type and modular type) with different mesh size.
The vibration exciter has been designed with eccentric, external modular and integrated, and can be lubricated by oil lubrication or thin oil automatic lubrication.
Flanged side plate, beam and supporting base are connected with high-strength bolts. So that there is no welding stress existed.
Elimination of vibration technology is applied to avoid horizontal shaking caused by sympathetic vibration when start or stop the machine.
The composite rubber spring are used with features of stable vibration and low noise.
It is optional to use the dust-proof sealing device for the vibrating screen according to customers' request.

Technical Specifications:

ZKR Model	Decks Quantity	Mesh Size (mm)	Double Amplitude (mm)	Vibrating Frequency (r/min)	Max. Feed Size (mm)	Capacity (t/h)	Power (kw)
ZKR1230	1	0.25-50	6-9	970	≤150	7-144	2x4
ZKR1245	1	0.25-50	6-9	970	≤150	10-200	2x5.5
ZKR1260	1	0.25-50	6-9	970	≤150	12-280	2x11
ZKR1437	1	0.25-50	6-9	970	≤150	10-210	2x5.5
ZKR1836	1	0.25-50	6-9	970	≤150	13-250	2x7.5
ZKR1845	1/2	0.25-50	6-9	970	≤150	16-324	2x11/15
ZKR1860	1/2	0.25-50	6-8	970	≤150	10-360	2x15/22
ZKR2160	1/2	0.25-50	6-8	970	≤150	28-400	2x15/30

YKR Model	Decks Quantity	Mesh Size (mm)	Double Amplitude (mm)	Vibrating Frequency (r/min)	Max. Feed Size (mm)	Capacity (t/h)	Power (kw)
YKR1845	1/2/3	3-150	7-8	800	≤200	55-450	22/30
YKR1854	1/2/3/4	3-150	7-8	800	≤200	60-480	22/30/30/37
YKR1860	1/2/3	3-150	7-8	800	≤200	80-500	22/30/37
YKR2160	1/2/3/4	3-150	7-8	800	≤200	100-750	30/37/45/37
YKR2460	1/2/3	3-150	7-8	800	≤200	120-880	30/37/45
YKR2475	2/3	3-150	7-8	800	≤200	150-950	37/45/55
YKR2773	2/3	3-150	7-8	800	≤200	150-1000	45/55
YKR3060	2/3	3-150	7-8	800	≤200	150-900	45/45/55
YKR3073	1/2/3	3-150	7-8	800	≤200	150-1100	45/55/2x30
YKR3675	1/2/3	3-150	7-8	800	≤200	200-1200	2x(22/37/45)

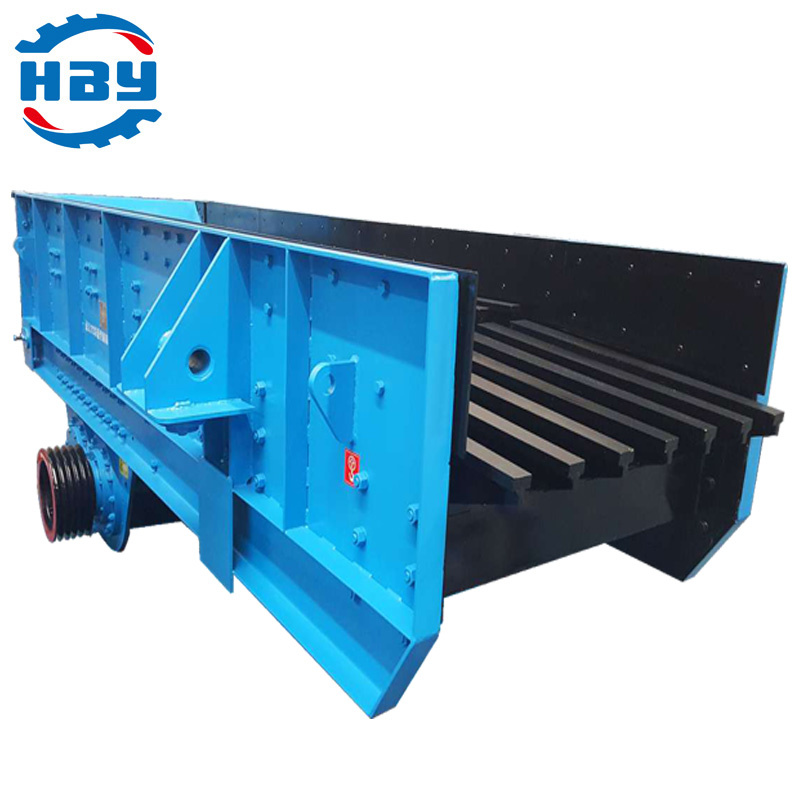

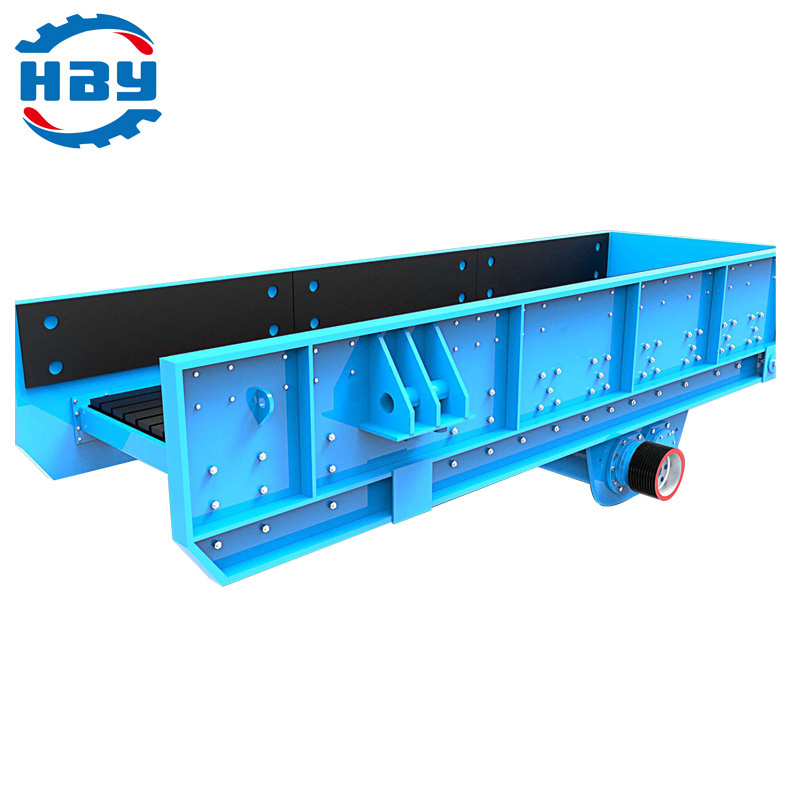

Model	Max. Feeding Size (mm)	Speed(r/min)	Capacity(t/h)	Power(kw)	Dimensions(mm)
ZSW380x95	500	500-800	150	11	3970x2259x1880
ZSW420x110	580	500-800	150-280	15	4392x2519x2003
ZSW490x110	580	500-800	150-350	18.5	5093x2545x2014
ZSW600x130	750	500-800	220-560	30	6124x2863x2051
ZSW600x150	900	500-800	260-620	37	6271x2369x2698
ZSW600x180	1050	600-850	400-1000	45	6375x2653x2913
ZSW600x210	1200	600-850	550-1250	45	6417x2880x3159
