Jerry Can Blow Molding Machine 10L 15L 20L 30L 40L ( ABLD80 )

Product Description

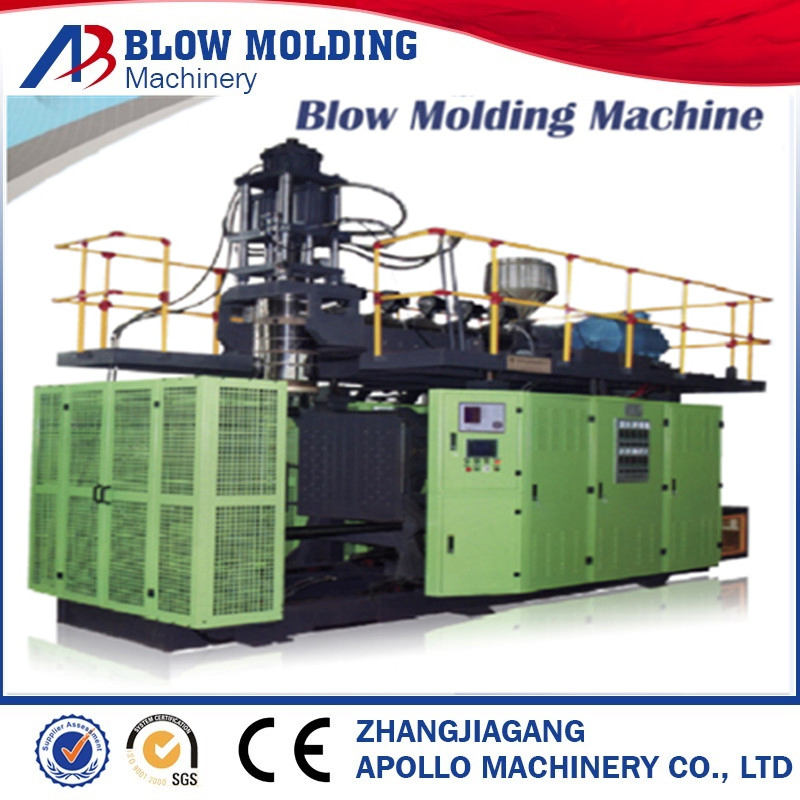

HDPE jerry cans blow molding machine

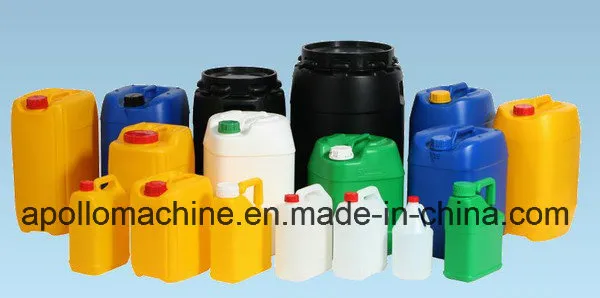

ABLD80 plastic drum making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys, tool boxes and other plastic containers not over 50L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 50L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

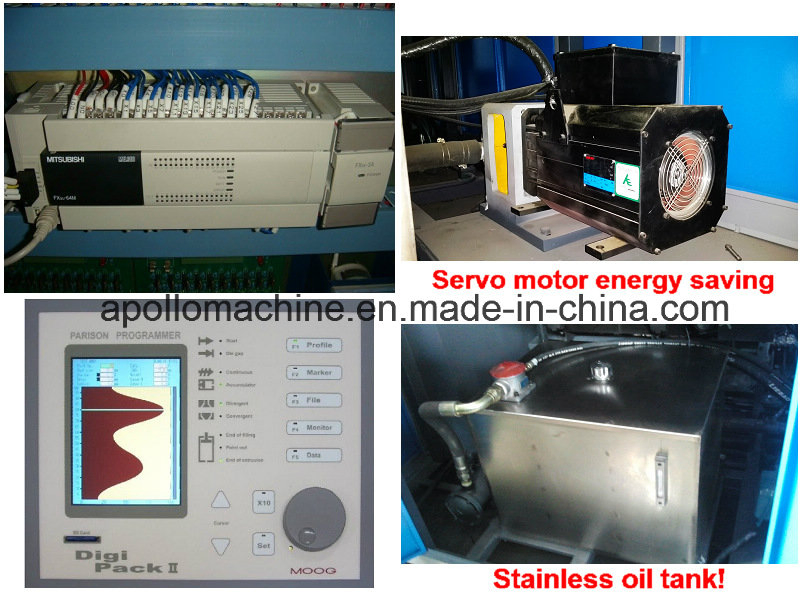

(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

Max. Product volume	30 liters
Output capacity	60~80pc/h
Screw diameter	80mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	11 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	15 KW
Clamping force	260 KN
Max.size of mold	700X950mm
Mold stroke	450-1000mm
Max.die diameter	340mm
Die heating power	7.6 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	1.0 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
