24inch Gasoline Edging Power Trowel for Finishing Concrete Floor Gyp -424
24inch Hand push edging power trowel for finishing corner and edge GYP-424A power trowel (also known as a "power float", "helicopter" or "trowel machine" or "whirlybird") is a piece of light construction equipment used by construction companies and contractors......
Send Inquiry
Product Description

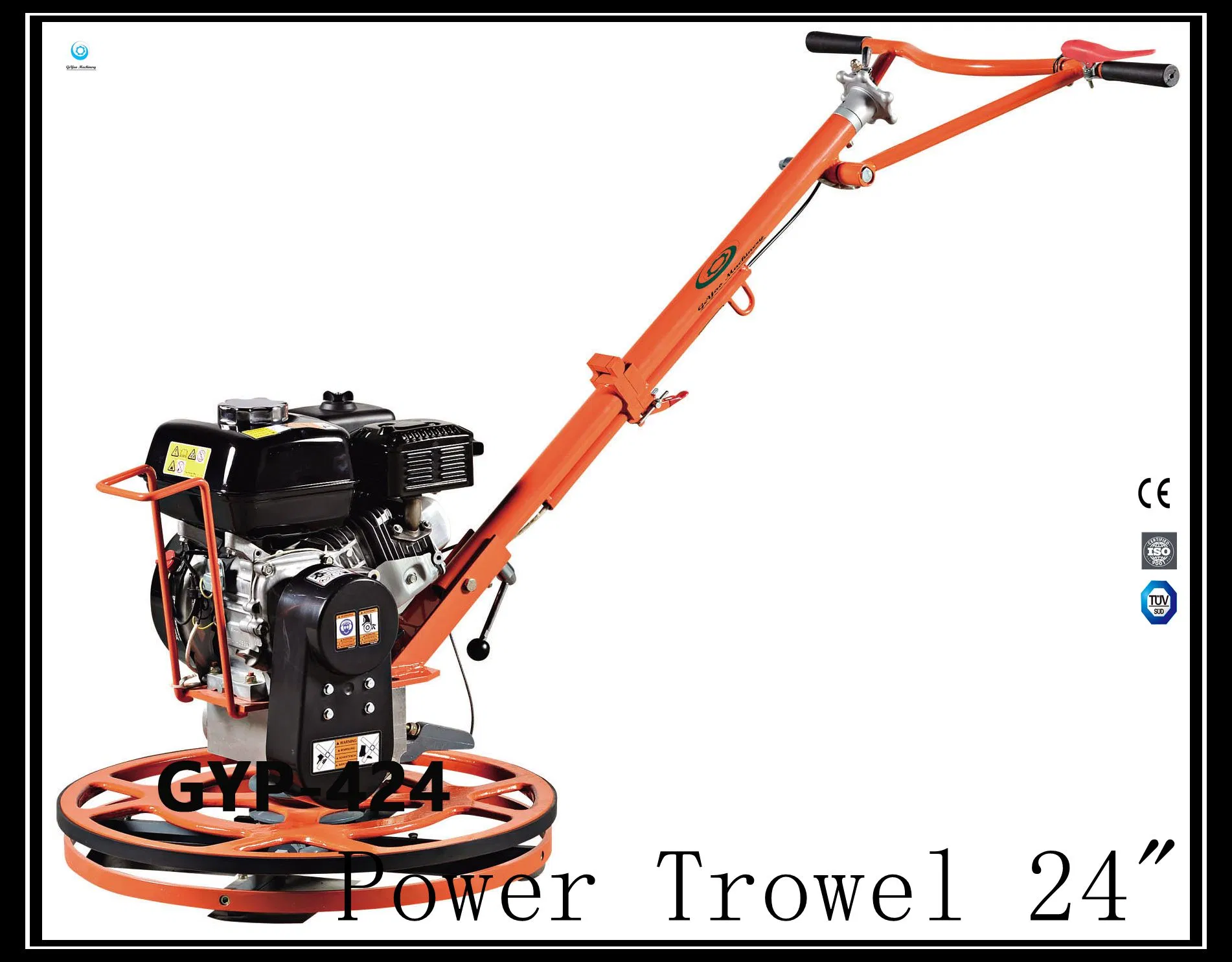

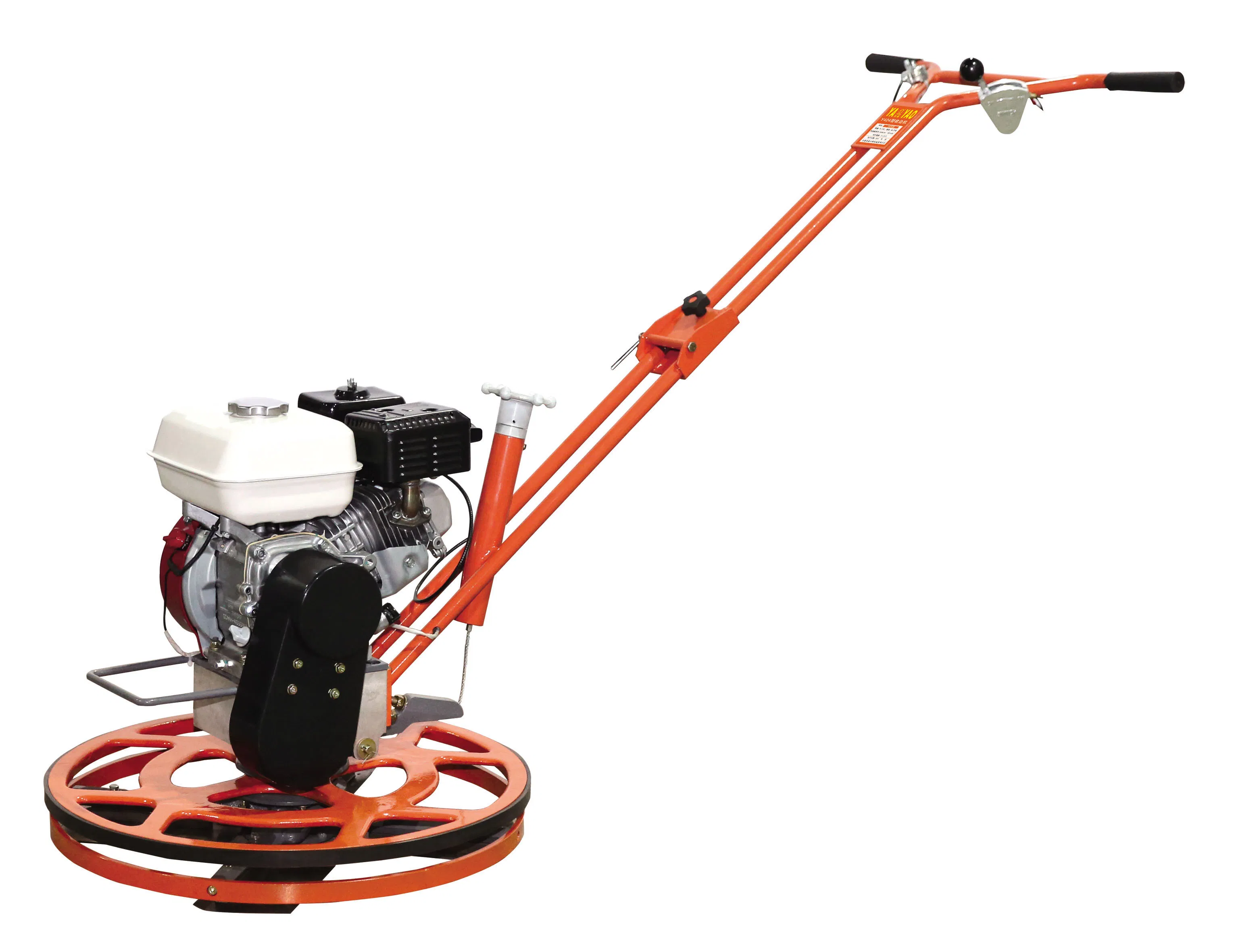

24inch Hand push edging power trowel for finishing corner and edge GYP-424
A power trowel (also known as a "power float", "helicopter" or "trowel machine" or "whirlybird") is a piece of light construction equipment used by construction companies and contractors, to apply a smooth finish to concrete slabs.
There're ride on power trowel and walk behind power trowel.
Technical Specification:
Features:
1.Independent rotating flywheel, allowing operation in tight corners and in confined spaces
2.Foldable handle makes it easier for transportation and storage
3Over-built gearbox assures long service life
4.Heavy-weight design to assure a superior finish
5.Height adjustable handle, assures operator comfort & easy control
6.Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the people
7.Screw control ensures precise blade adjustment
8.Lifting hook for easy transport as standard
Option:
Throttle Control
Lifting hook for easy transport as standard.Foldable handle easy for transportation and storage.
Option:Imported nylon resin blade

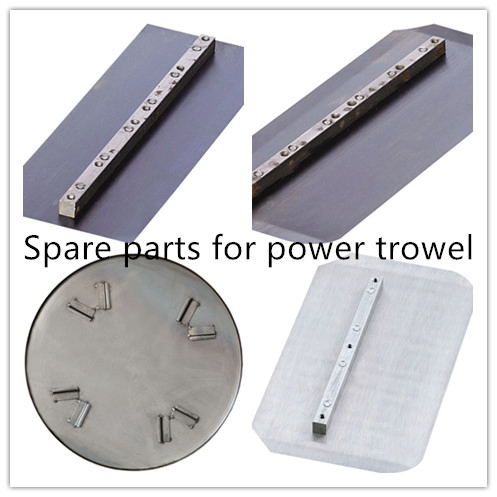

We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel.
All blades can fit most other brands of power trowels.
Specifications:
Applications :
power trowels are used to create a smooth surface after wet concrete has been vibrated with a poker and leveled with a leveling beam. They are ideal for concrete slabs, industrial warehouse floors, residential housing, parking lots and alleys - or anywhere concrete slabs are poured.
We shall promptly response to you in 24h*7.

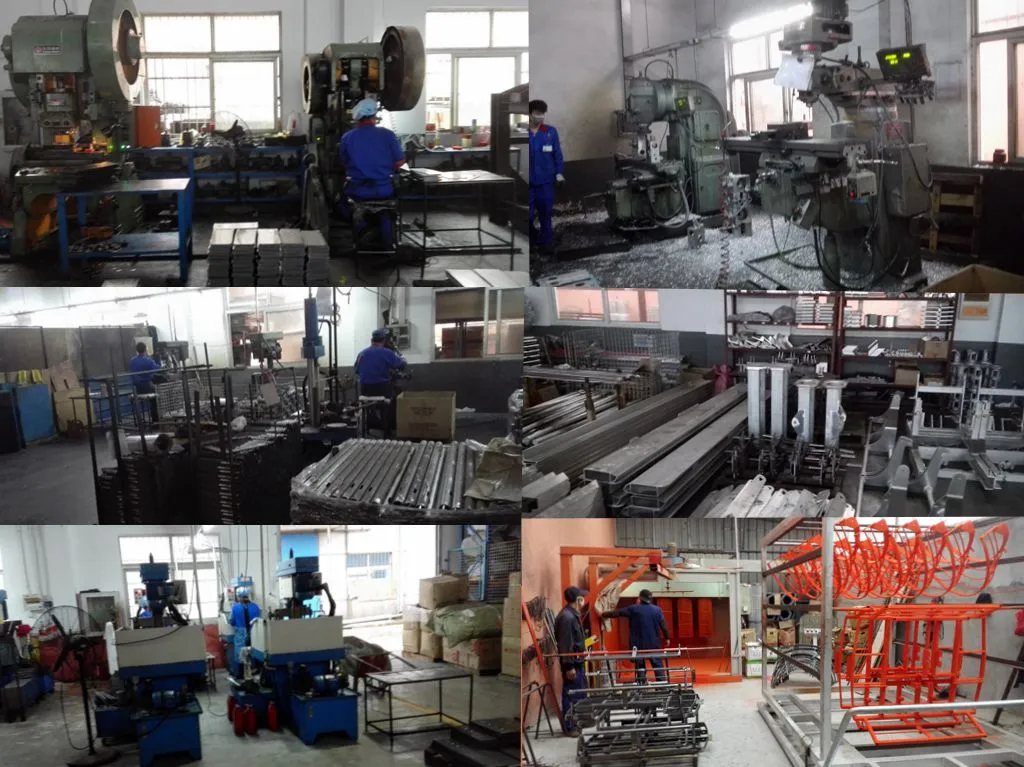

Machinery Operation Processing

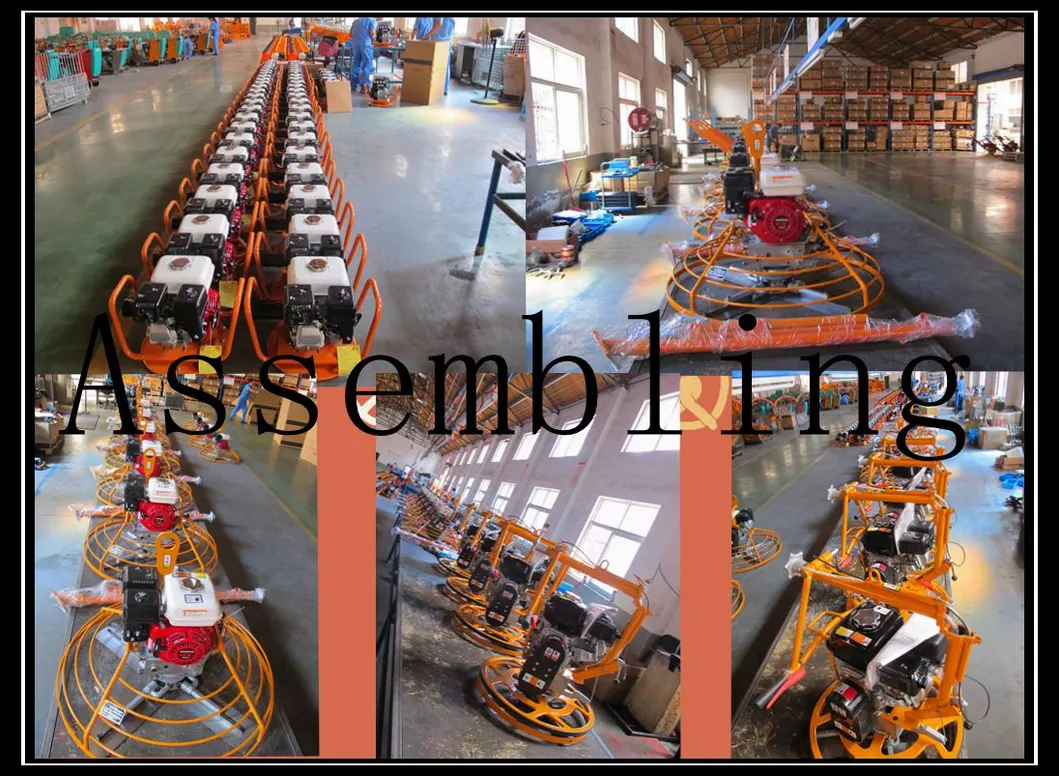

Assembling

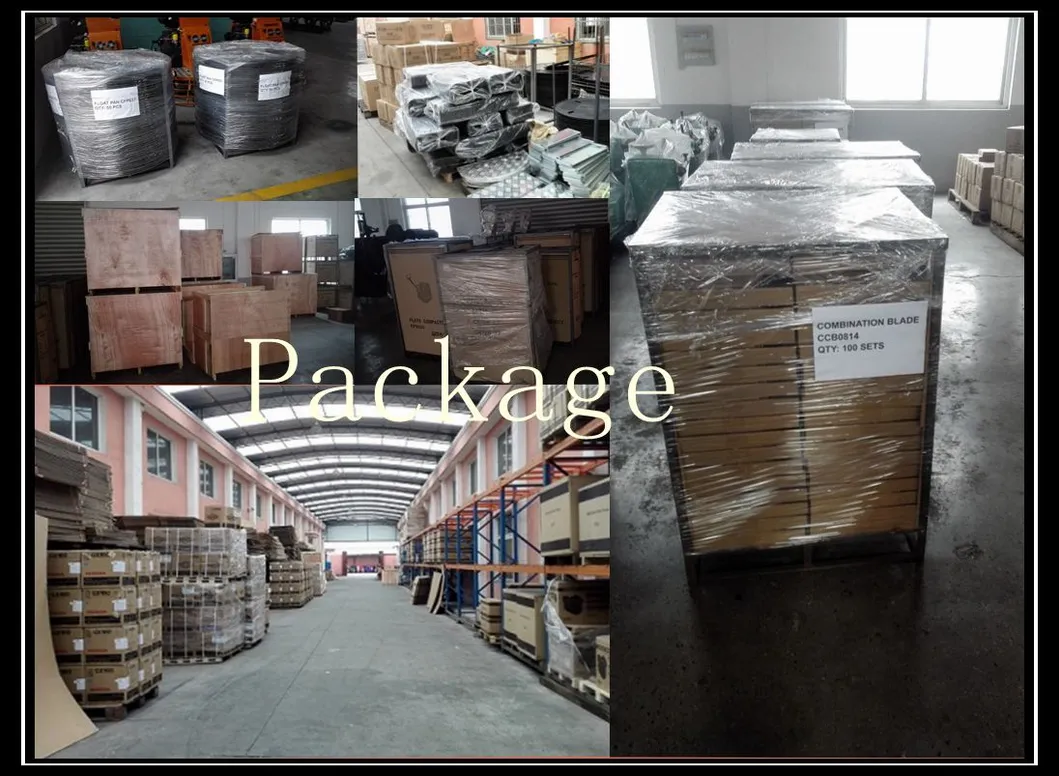

Package
Performance
A power trowel (also known as a "power float", "helicopter" or "trowel machine" or "whirlybird") is a piece of light construction equipment used by construction companies and contractors, to apply a smooth finish to concrete slabs.
There're ride on power trowel and walk behind power trowel.
Technical Specification:
| Model | GYP-424-2 | GYP-424-3 | GYP-424-4 | |
| Engine Type | Chinese Petrol Engine | Robin EX13 | Honda GX160 | |
| Power kw(hp) | 4.0(5.5) | 3.2(4.2) | 4.0(5.5) | |
| Weight kg(lbs) | 60(131) | 59(130) | 59(130) | |
| Blade Speed rpm | 70-150 | |||
| Rotor Dia. Cm(in) | 60(24) | |||
1.Independent rotating flywheel, allowing operation in tight corners and in confined spaces
2.Foldable handle makes it easier for transportation and storage
3Over-built gearbox assures long service life
4.Heavy-weight design to assure a superior finish
5.Height adjustable handle, assures operator comfort & easy control
6.Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the people
7.Screw control ensures precise blade adjustment
8.Lifting hook for easy transport as standard
Option:
Throttle Control
Lifting hook for easy transport as standard.Foldable handle easy for transportation and storage.
Option:Imported nylon resin blade
We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel.
All blades can fit most other brands of power trowels.
Specifications:
| Standard | Super-blue | Plastic | Thickness mm | Dimension | Correspondent to |
| GFB061016 | / | / | 1.6 | 6"*10.5" | GYP-830 series |
| GFB061020 | SFB061020 | / | 2.0 | ||
| GFB061416 | / | / | 1.6 | 6"*14" | GYP-836 /436 series |
| GFB061420 | SFB061420 | / | 2.0 | ||
| GFB061616 | / | / | 1.6 | 6"*16" | GYP-442/846 series |
| GFB061620 | SFB061620 | / | 2.0 | ||
| GFB061816 | / | / | 1.6 | 6"*18" | GYP-446/848/1046 series |
| GFB061820 | SFB061820 | / | 2.0 |
Applications :
power trowels are used to create a smooth surface after wet concrete has been vibrated with a poker and leveled with a leveling beam. They are ideal for concrete slabs, industrial warehouse floors, residential housing, parking lots and alleys - or anywhere concrete slabs are poured.
We shall promptly response to you in 24h*7.
Machinery Operation Processing
Assembling
Package
Performance
