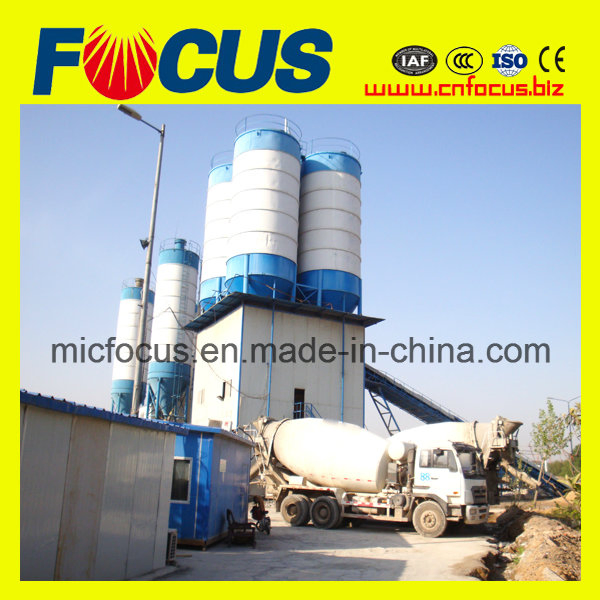

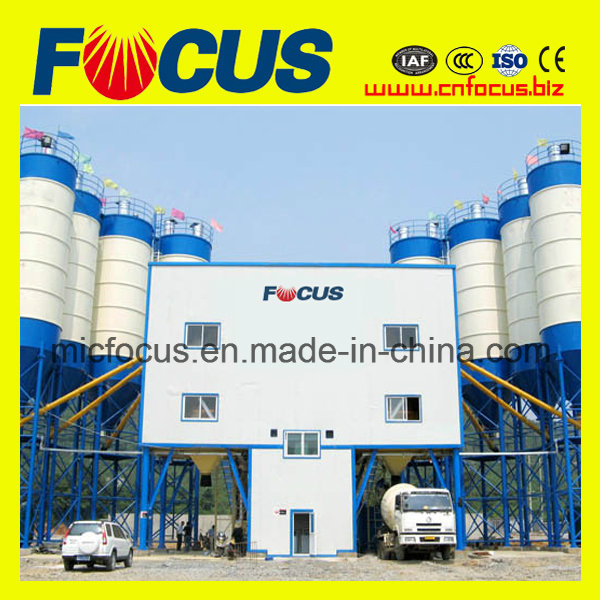

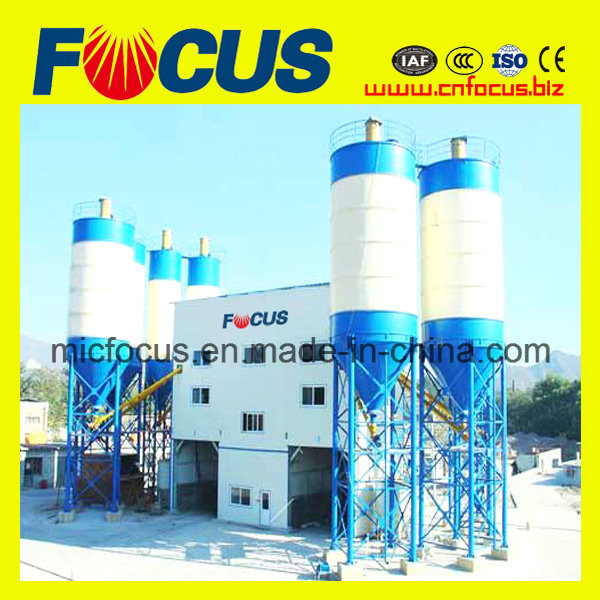

Capacity 180m3/H Hzs Concrete Mixing Plant on Sale

Product Description

Capacity 180m3/H Hzs Concrete Mixing Plant on Sale

Sizes of FOCUS Concrete batching & mixing system:
Skip bucket type:
HZS25 25cbm/h Concrete batching & mixing system, HZS35 35cbm/h Concrete batching & mixing system, HZS50 50cbm/h Concrete batching & mixing system, HZS75 75cbm/h Concrete batching & mixing system

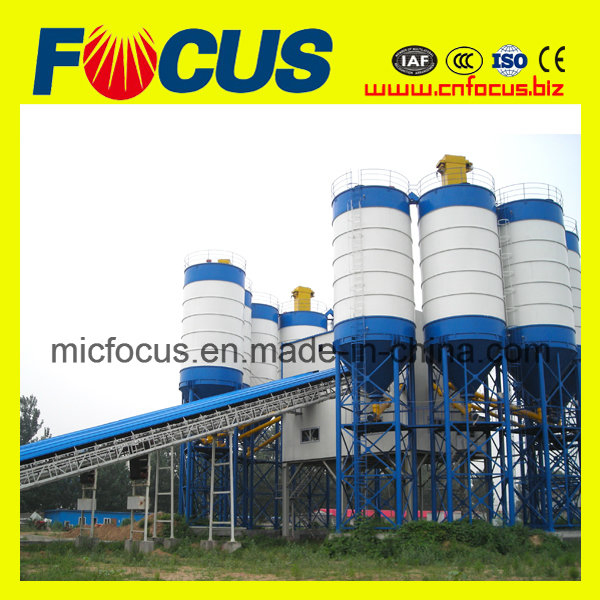

Conveyor belt type:
HZS60 60cbm/h Concrete batching & mixing system, HZS90 90cbm/h Concrete batching & mixing system, HZS120 120cbm/h Concrete batching & mixing system, HZS180 180cbm/h Concrete batching & mixing system
Capacity 180m3/H Hzs Concrete Mixing Plant on Sale

Why would our clients choose FOCUS 35cbm/h Concrete batching & mixing system?
On the basis of combining advantages of various foreign Concrete batching & mixing system and advanced technology, FOCUS HZS Concrete batching & mixing system adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS Concrete batching & mixing system?

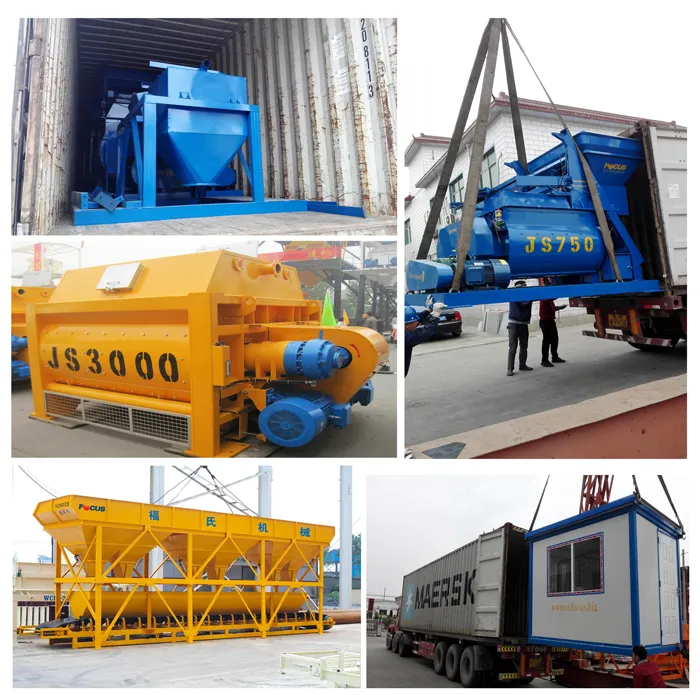

1. Adopting twin-shaft compulsory concrete mixer, FOCUS Concrete batching & mixing system mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
3. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45° By adopting trough(groovy) belt when the ground area is limited for the 35cbm/h bucket type Concrete batching & mixing systems;
4. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole 35cbm/h bucket type Concrete batching & mixing system is all in closed state;
5. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
6. Heating system and ice plant could be adopted into this Concrete batching & mixing system in severely cold and hot environment.
Capacity 180m3/H Hzs Concrete Mixing Plant on Sale

model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical output(m ³ /h)	60	90	120	180	240
Mixer model	JS1000	JS1500	JS2000	JS3000	JS4000
Output per batch(m ³ )	1	1.5	2	3	4
Aggregate batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total power(KW)	110	145	160	205	340
Aggregate weighing accuracy(%)	( 0-3000 ) kg ±2%	( 0-4000 ) kg ±2%	( 0-4500 ) kg ±2%	( 0-4500 ) kg ±2%	( 0-6000 ) kg ±2%
cement weighing accuracy(%)	( 0-600 ) kg ±1%	( 0-1000 ) kg ±1%	( 0-1200 ) kg ±1%	( 0-1800 ) kg ±1%	( 0-2400 ) kg ±1%
water weighing accuracy(%)	( 0-400 ) kg ±1%	( 0-400 ) kg ±1%	( 0-600 ) kg ±1%	( 0-800 ) kg ±1%	( 0-1000 ) kg ±1%
fly ash weighing accuracy(%)	( 0-400 ) kg ±1%	( 0-400 ) kg ±1%	( 0-600 ) kg ±1%	( 0-800 ) kg ±1%	( 0-700 ) kg ±1%
additive weighing accuracy(%)	( 0-40 ) kg ±1%	( 0-40 ) kg ±1%	( 0-50 ) kg ±1%	( 0-50 ) kg ±1%	( 0-120 ) kg ±1%
Discharge height(m)	3.8-4.2
Max. aggregate dia.(mm)	80-100
Cement silo and screw conveyor	On request
Total weight (ton)	46	60	71	87	112
Overall dimension(LxWxH)(m)	33.8x14.8x19.4	38x16x19.4	44x18x19.4	58.5x23.5x22	60x25x22
