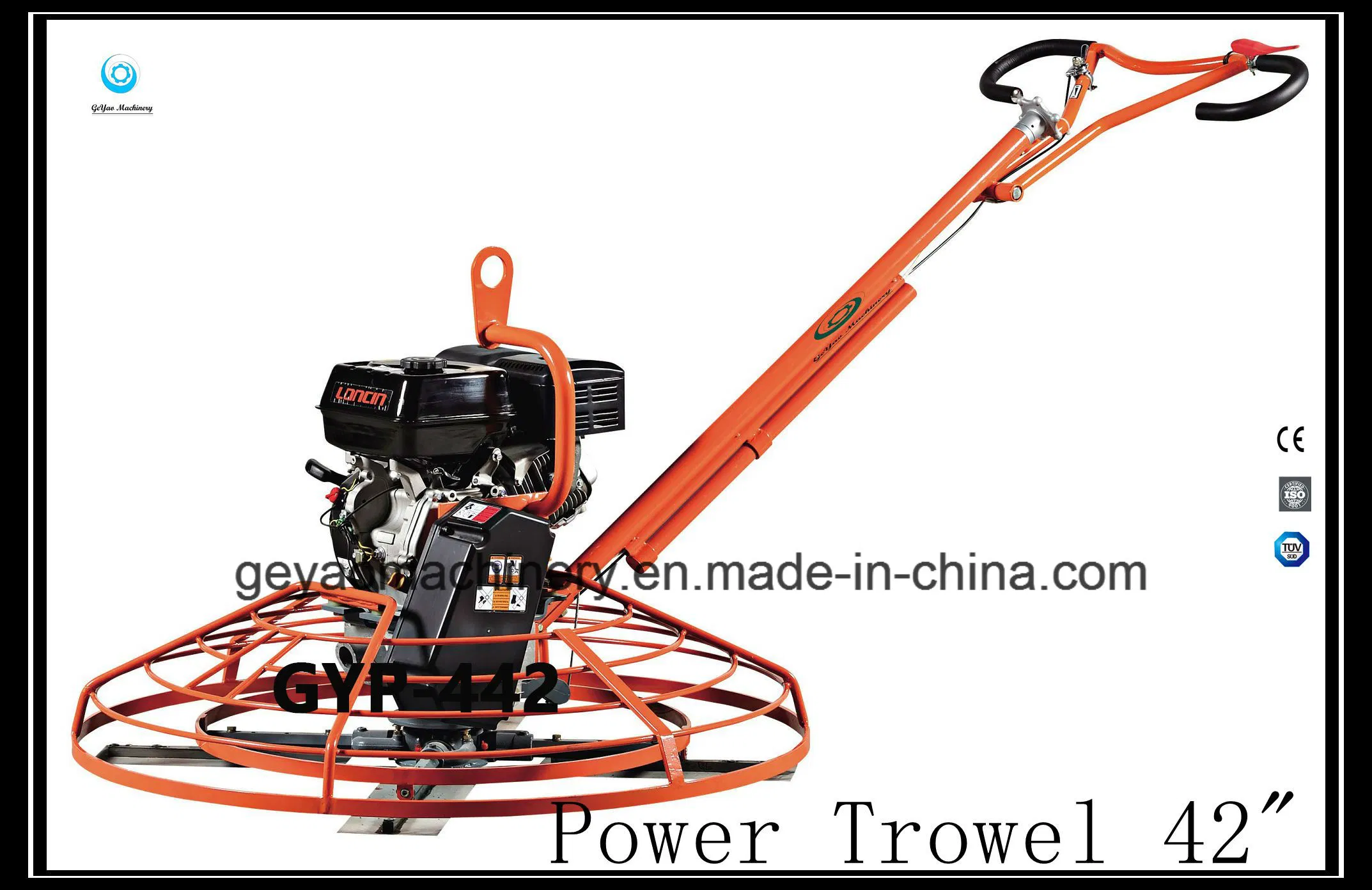

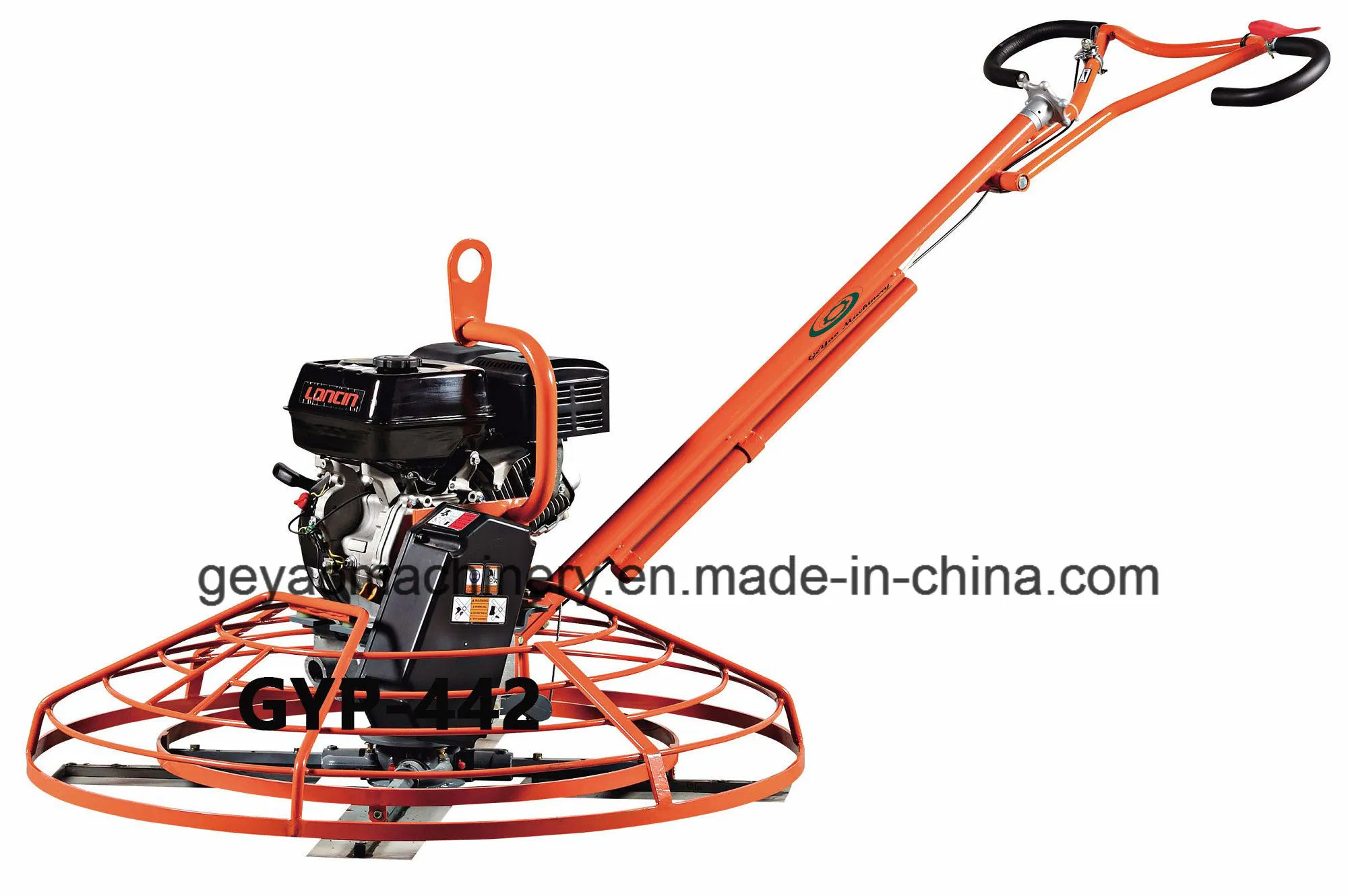

Concrete Machine Gasoline Power Trowel with Centrifugal Safety Switch Gyp -442
Walk behind gasoline Power Trowel machine gyp-442 Series With Centrifugal Safety SwitchA power trowel (also known as a "power float", "helicopter" or "trowel machine" or "whirlybird") is a piece of light construction equipment used by construction companies an......
Send Inquiry
Product Description
A power trowel (also known as a "power float", "helicopter" or "trowel machine" or "whirlybird") is a piece of light construction equipment used by construction companies and contractors, to apply a smooth finish to concrete slabs.
There're ride on power trowel and walk behind power trowel.
Technical Specification
Model | GYP-442-1 | GYP-442-2 | GYP-442-3 | |
Engine Type | Chinese Petrol Engine | Robin EX27 | Honda GX270 | |
Power kw(hp) | 6.6(9.0) | 6.6(9.0) | 6.6(9.0) | |
Weight kg(lbs) | 98(216) | 94(207) | 98(216) | |
Blade Speed rpm | 70-145 | |||
Rotor Dia. Cm(in) | 110(42) | |||
Features:
1.Over-built gearbox assures long service life
2.Heavy-weight design to assure a superior finish
3.Height adjustable handle, assures operator comfort & easy control
4.Lifting tube as standard feature allows trowel to be transported on the job-site with only two people
5.Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit
6.Screw control ensures precise blade adjustment
7.Safety designed guard ring
8.Stabilizer Ring
Option:
Lifting Hook
Throttle Control
Long Handle
Trolley Wheel

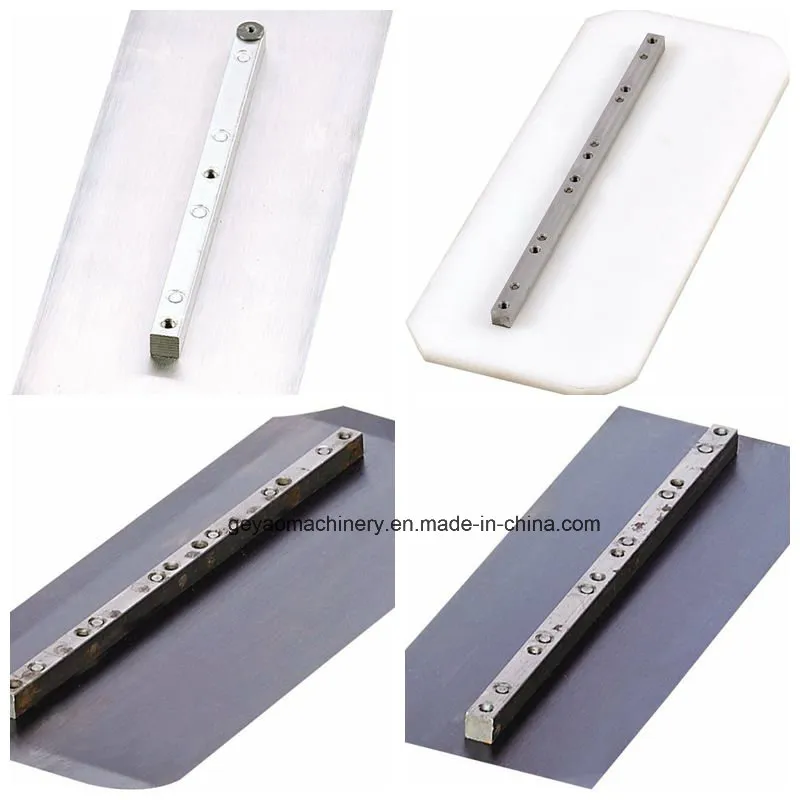

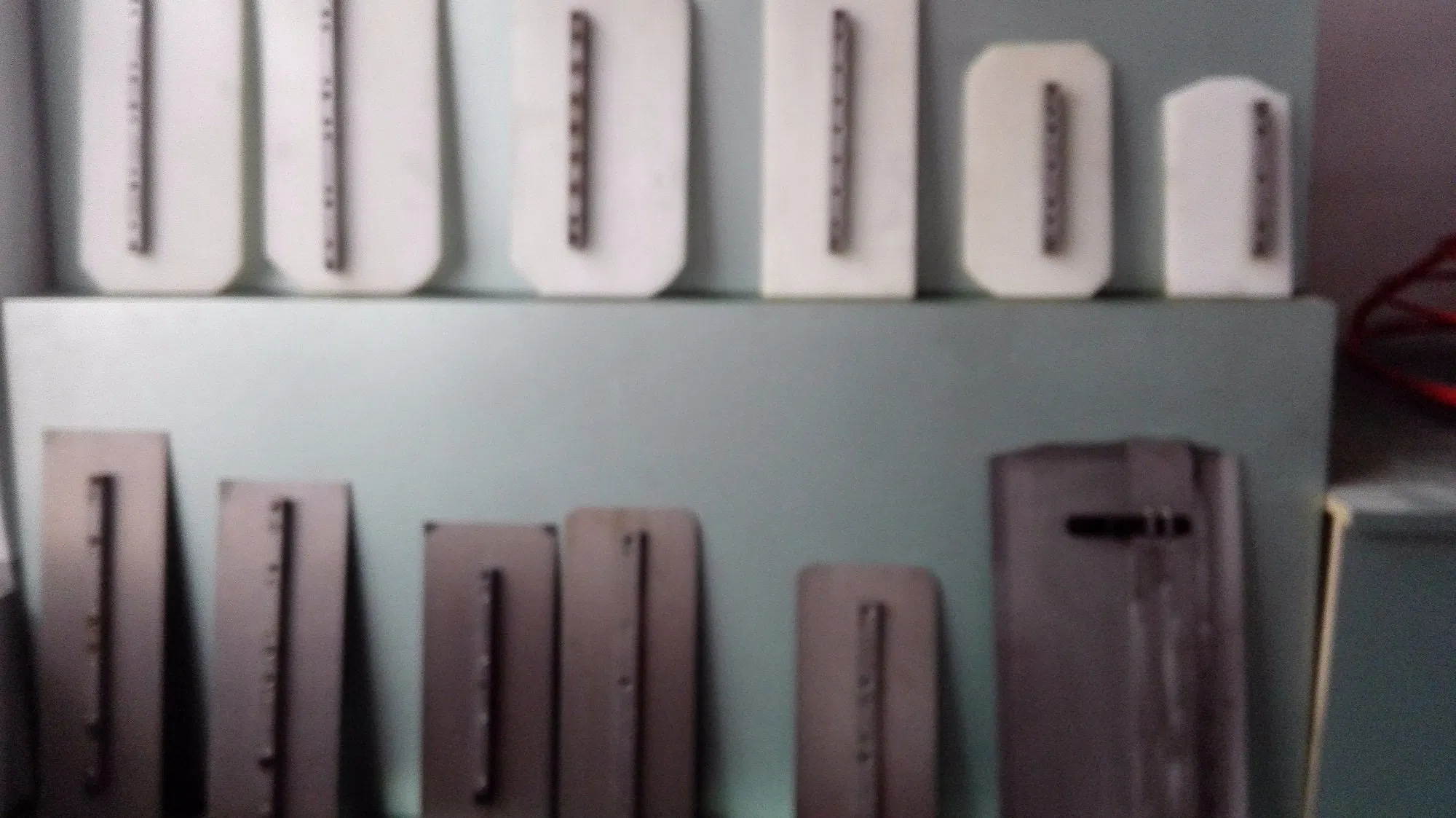

- We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel.
- All blades can fit most other brands of power trowels.
Specifications:
| Standard | Super-blue | Plastic | Thickness mm | Dimension | Correspondent to |
| GFB061016 | / | / | 1.6 | 6"*10.5" | GYP-830 series |
| GFB061020 | SFB061020 | / | 2.0 | ||
| GFB061416 | / | / | 1.6 | 6"*14" | GYP-836 /436 series |
| GFB061420 | SFB061420 | / | 2.0 | ||
| GFB061616 | / | / | 1.6 | 6"*16" | GYP-442/846 series |
| GFB061620 | SFB061620 | / | 2.0 | ||
| GFB061816 | / | / | 1.6 | 6"*18" | GYP-446/848/1046 series |
| GFB061820 | SFB061820 | / | 2.0 |
Applications :
power trowels are used to create a smooth surface after wet concrete has been vibrated with a poker and leveled with a leveling beam. They are ideal for concrete slabs, industrial warehouse floors, residential housing, parking lots and alleys - or anywhere concrete slabs are poured.

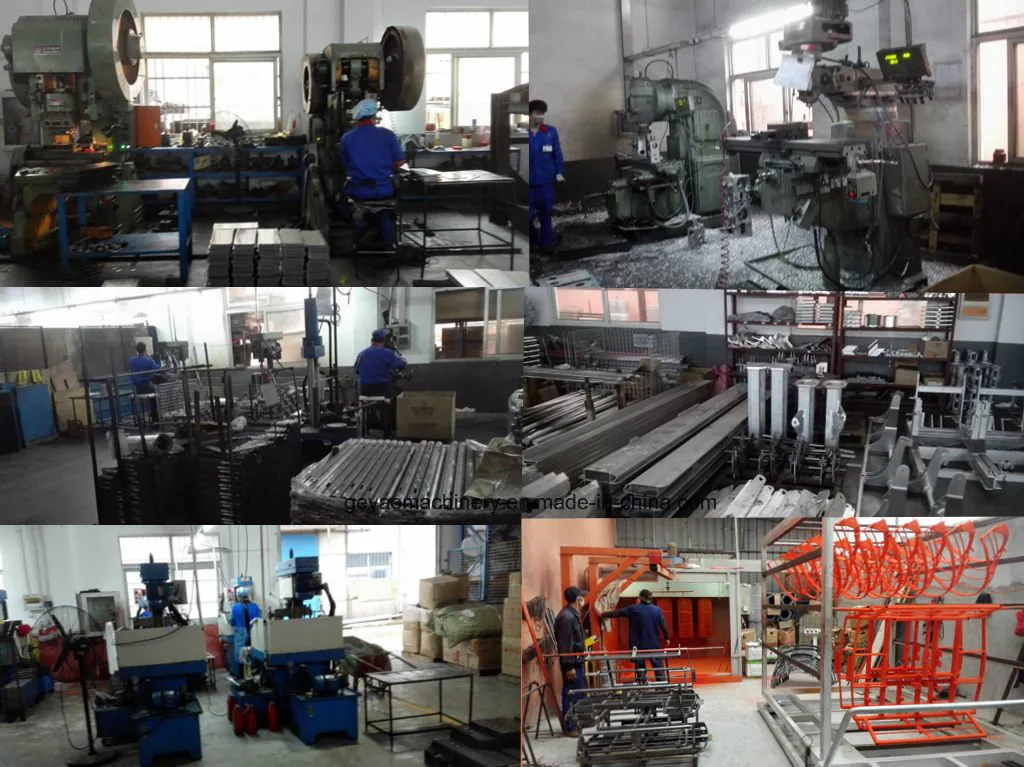

MACHINERY OPERATION PROCESSING

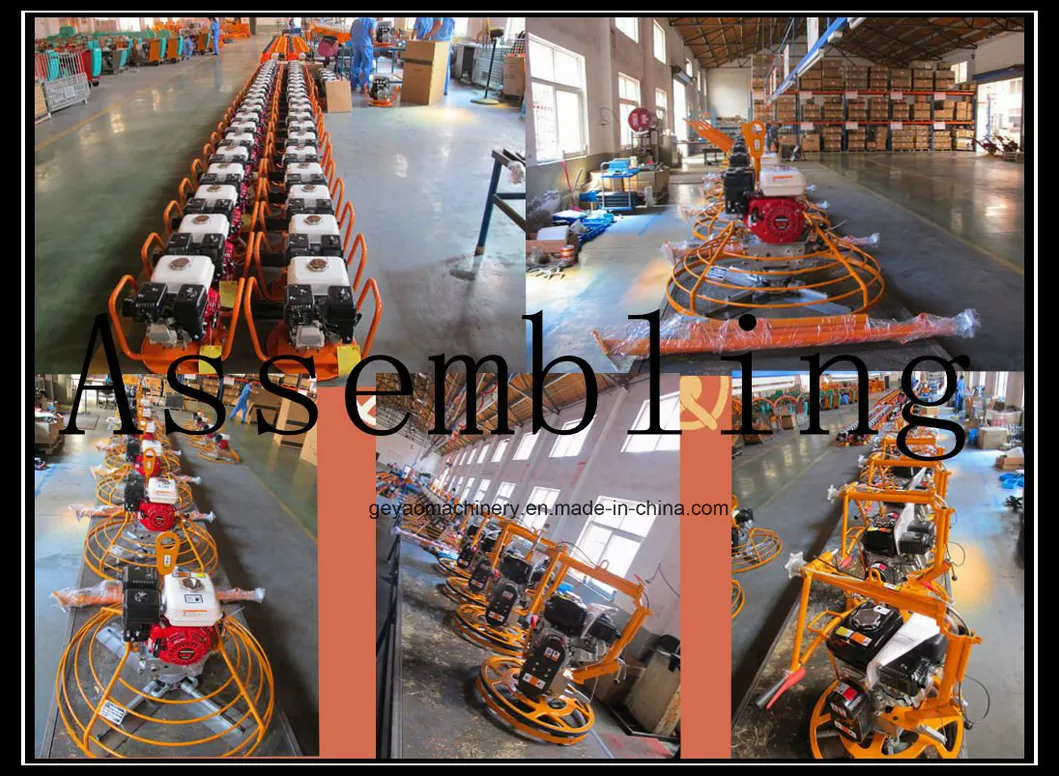

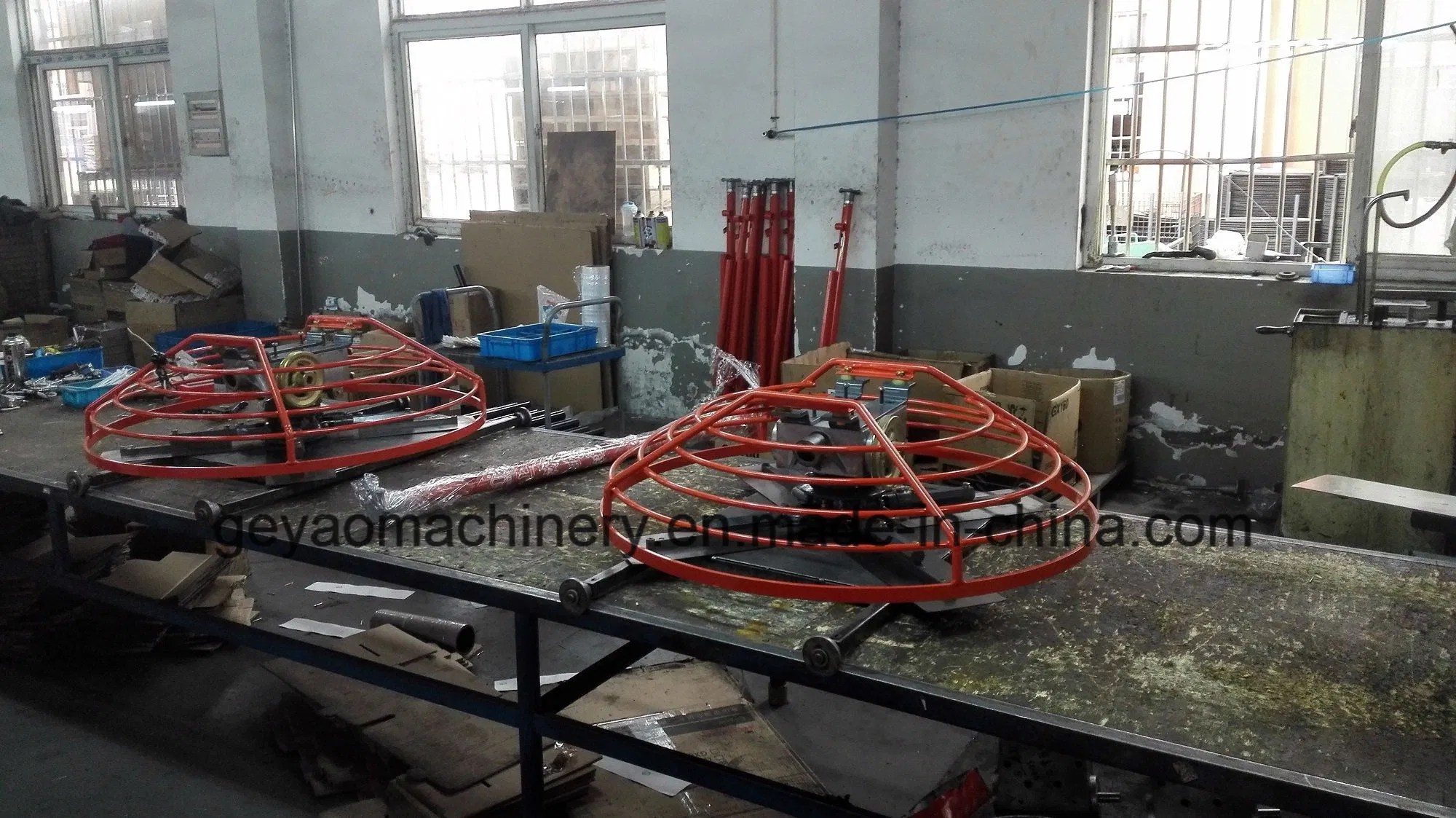

ASSEMBLING

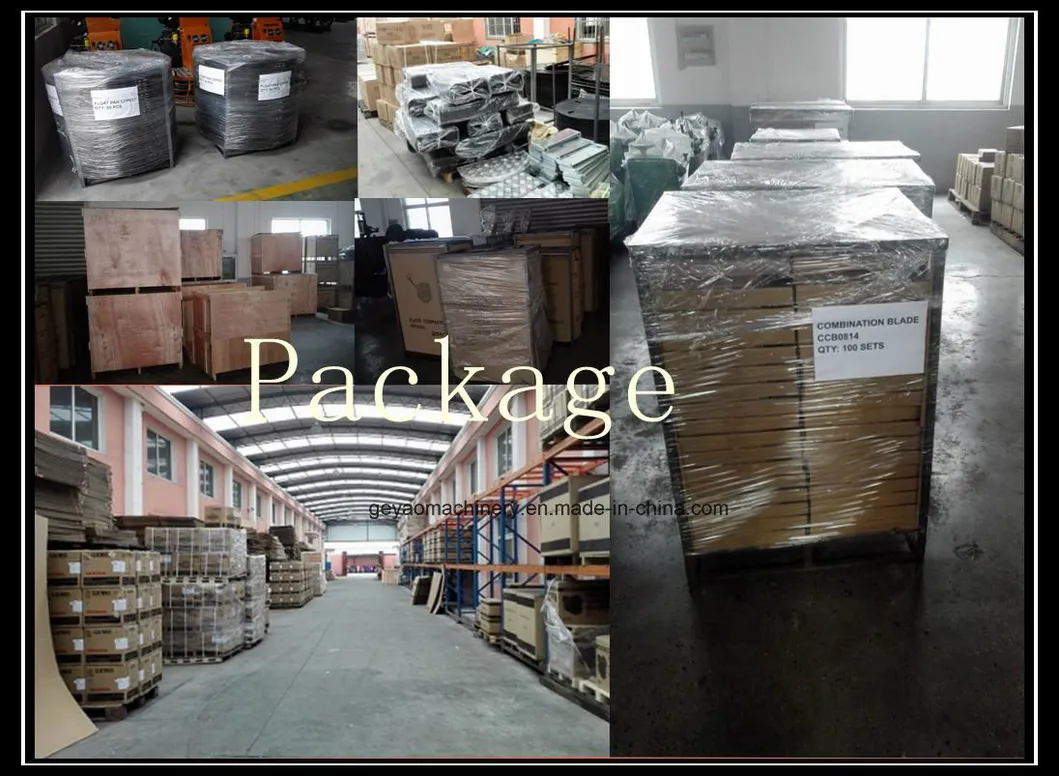

PACKAGE

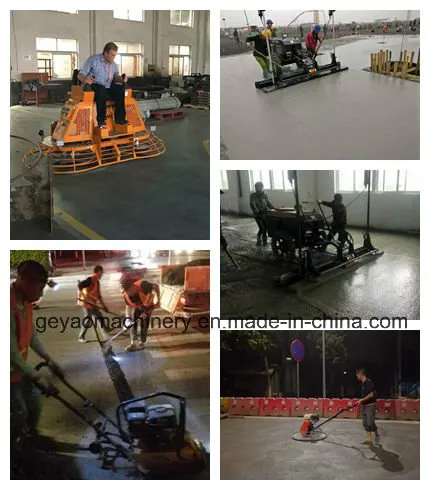

PERFORMANCE
Our customer service team will make response to you promptly in 24h*7.
