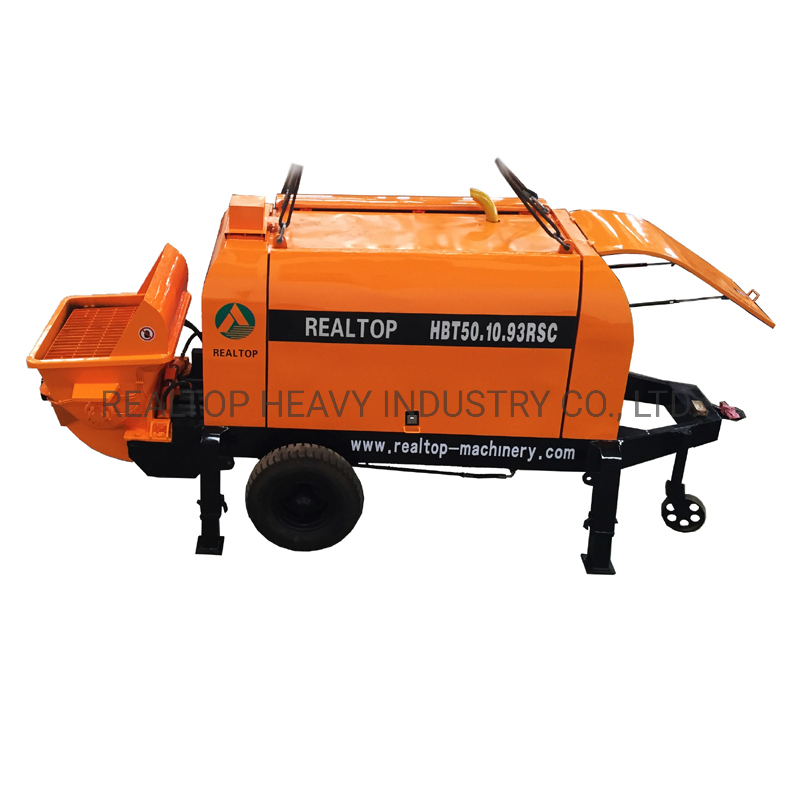

Diesel Type Trailer Mounted Concrete Pump 80m3/H
HBT series Trailer Mounted concrete pump ModelsRealtop offers Stationary concrete pump model HBT30 to HBT80, with diesel engine or eletric motor, single/dual engine or motor, and Main oil pump, diesel engines, valves with famous brands worldwide.Hydraulic System-Hydraulic system with daul pump and ......
Send Inquiry
Product Description
HBT series Trailer Mounted concrete pump
Models
Realtop offers Stationary concrete pump model HBT30 to HBT80, with diesel engine or eletric motor, single/dual engine or motor, and Main oil pump, diesel engines, valves with famous brands worldwide.
Hydraulic System
-Hydraulic system with daul pump and daul open-circle ensure long-lifespan.
-Double filtration technology to ensure hydraulic elements high reliability.
Pumping System
-Imported oil pump, eg. Rexroth, Kawasaki, Handock, strong pumping ability high reliability.
-Hard alloy eye board and cutting ring.
Detail parameters

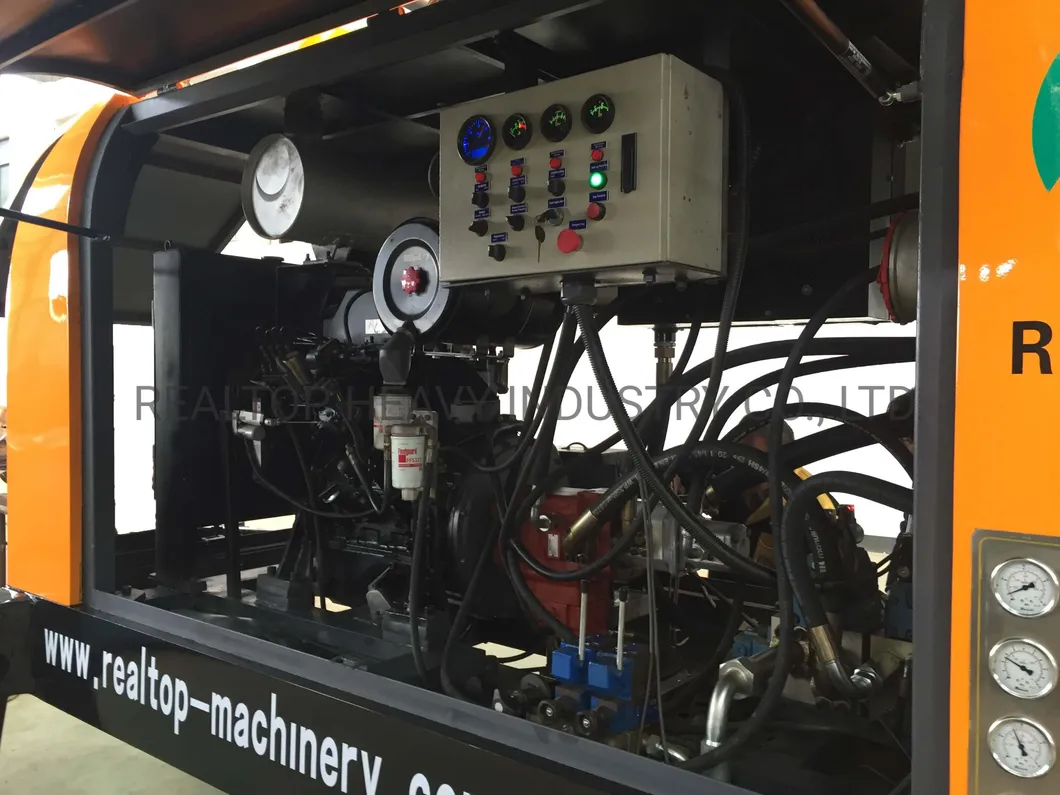

Detail pictures

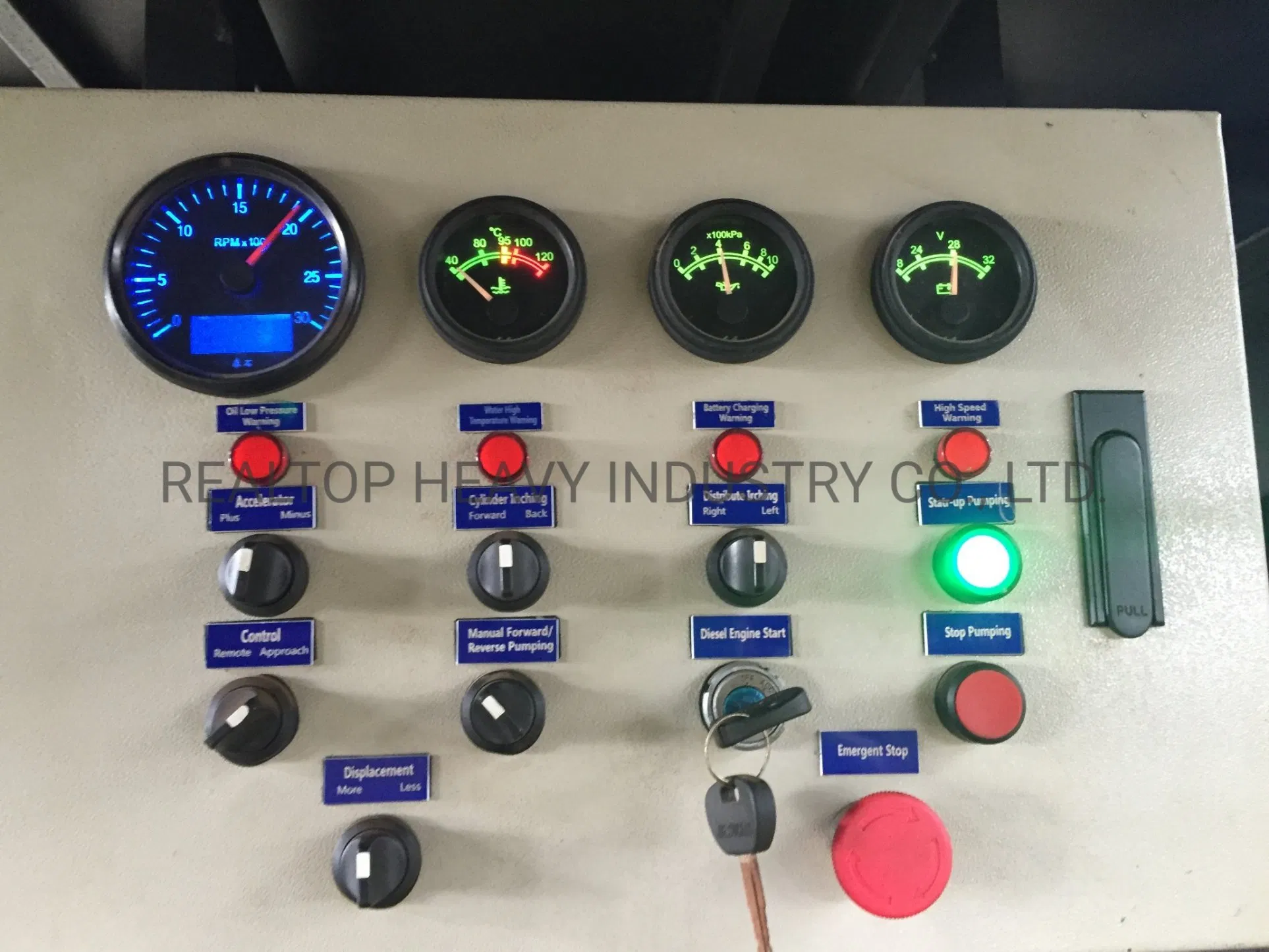

Eletric system
-Imported eletric elements (eg. Mitsubishi) to ensure high reliablity & low failure.
-Low voltage start, multi-protection for short circuit, overloading, failure warning.
-Automatic-controlling technology for engine throttle.
Driven System
Diesel engines, under famous brand Germany Deutz, Weichai Deutz, Weichai Style.
Lubrication System
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
Cooling System
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60ºC,that ensures the whole hydraulic system works at normal status.
Cleaning Device
Customers can choose to equip water pump to make the cleaning and maintaining an easy job.

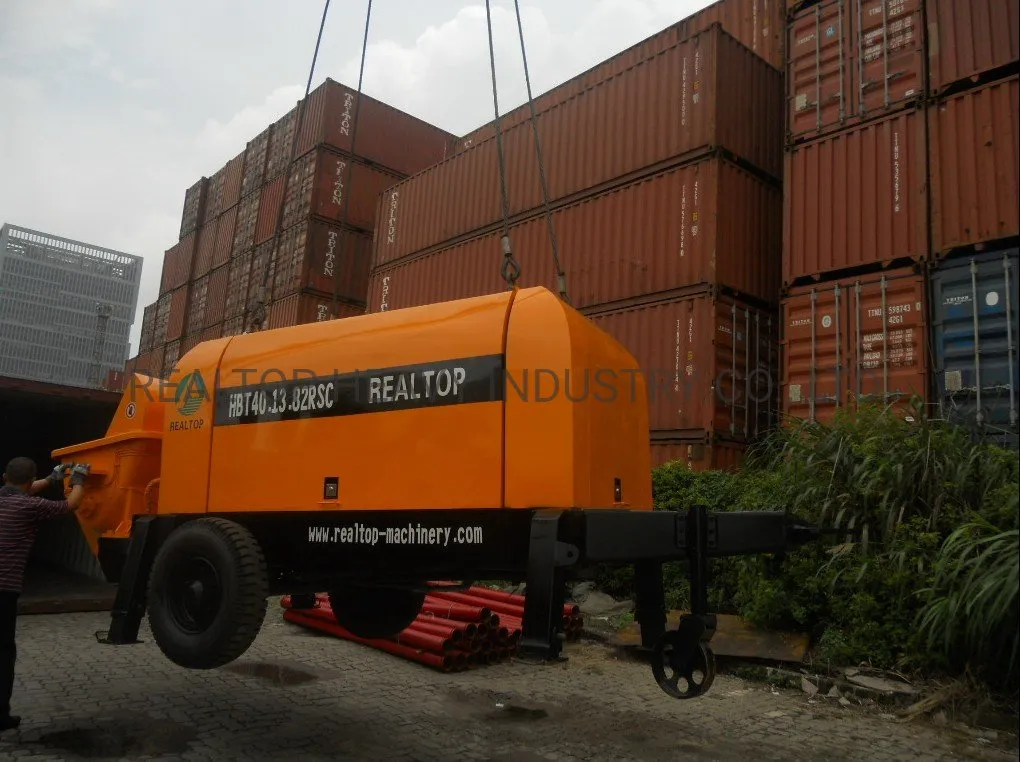

Shipping and delivery
Models
Realtop offers Stationary concrete pump model HBT30 to HBT80, with diesel engine or eletric motor, single/dual engine or motor, and Main oil pump, diesel engines, valves with famous brands worldwide.
Hydraulic System
-Hydraulic system with daul pump and daul open-circle ensure long-lifespan.
-Double filtration technology to ensure hydraulic elements high reliability.
Pumping System
-Imported oil pump, eg. Rexroth, Kawasaki, Handock, strong pumping ability high reliability.
-Hard alloy eye board and cutting ring.
Detail parameters
| Models | Unit | HBT80.13.130RS |
| Max. Theor. Concrete Output | m³/h | 100/60 |
| Concrete Pressure | mpa | 13/7.5 |
| Theor. Max. Vertical Delivery Distance | m | 270 |
| Theor. Max. Horizontal Delivery Distance | m | 1300 |
| Allowable concrete slump | mm | 100-230 |
| Max. Grain Diameter | mm | Pebble:50 /Crushed Stone:40 |
| Hopper Capacity | Lm³ | 0.74 |
| Hopper Height | mm | 1400 |
| Main Pump | REXROTH | |
| Concrete Cylinder Bore × Stroke | mm | φ200×1800 |
| Cylinder Diameter/Rod D × Stroke | mm | Φ125/80×1800 |
| Diesel Engine Brand | Weichai Deutz | |
| Engine Model | 226B | |
| Rated Power | kw | 130 |
| Diesel Consumption | g/h*kw | 190 |
| Hydraulic Circuit Form | Opened-circuit | |
| Delivery Valves Style | S-valve | |
| Main oil pump brand | REXROTH | |
| Main oil pump displacement | ml/r | 190 |
| Hydraulic Oil Tank Capacity | L | 500 |
| Radiator flow | L/min | 315 |
| Concrete delivery pipe diameter | mm | Φ150/ Φ125 |
| Out Dimension | mm | 6250×1950×2650 |
| Total Weight | kg | 6500 |

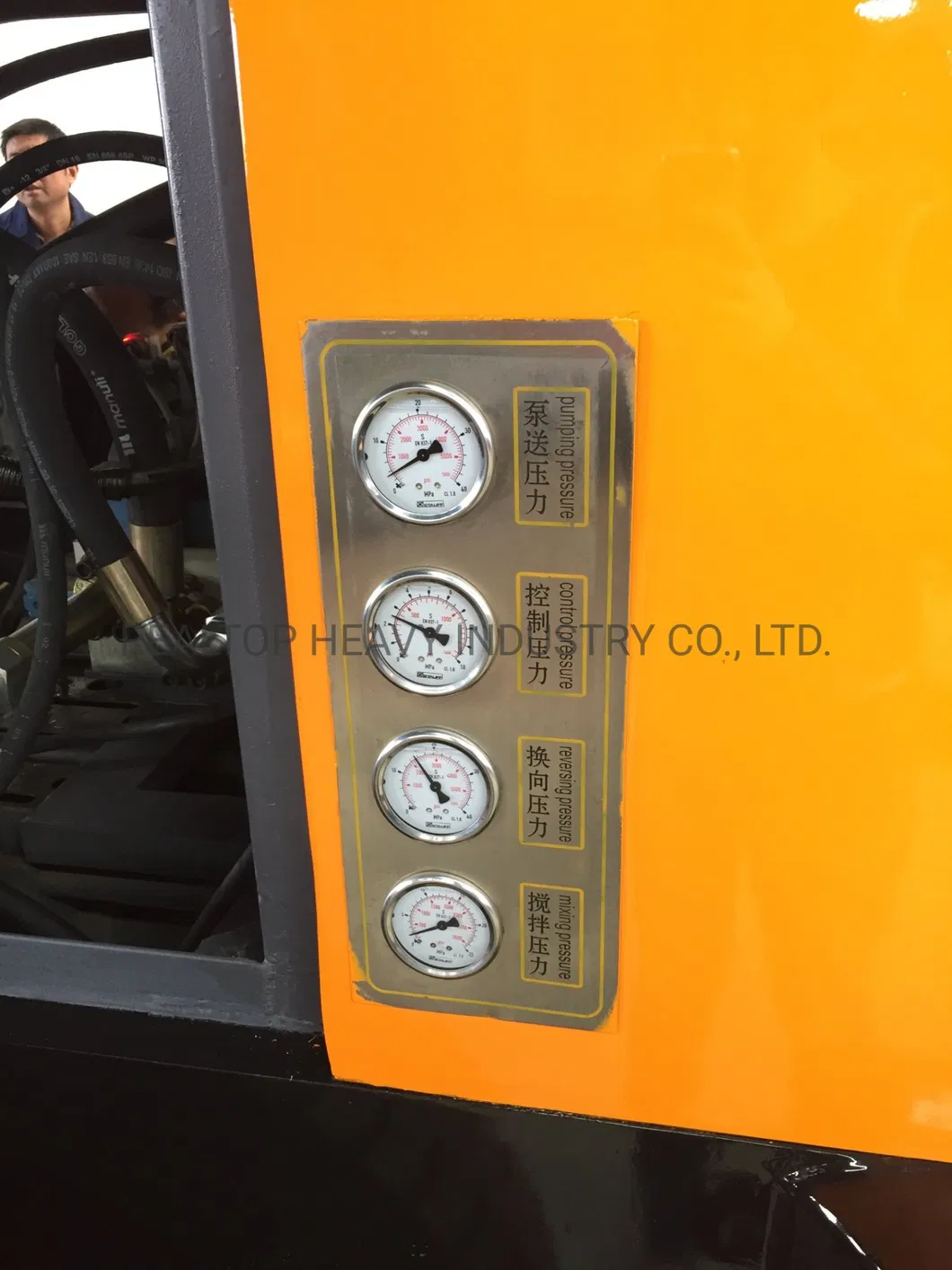

Detail pictures
Eletric system
-Imported eletric elements (eg. Mitsubishi) to ensure high reliablity & low failure.
-Low voltage start, multi-protection for short circuit, overloading, failure warning.
-Automatic-controlling technology for engine throttle.
Driven System
Diesel engines, under famous brand Germany Deutz, Weichai Deutz, Weichai Style.
Lubrication System
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
Cooling System
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60ºC,that ensures the whole hydraulic system works at normal status.
Cleaning Device
Customers can choose to equip water pump to make the cleaning and maintaining an easy job.
Shipping and delivery
