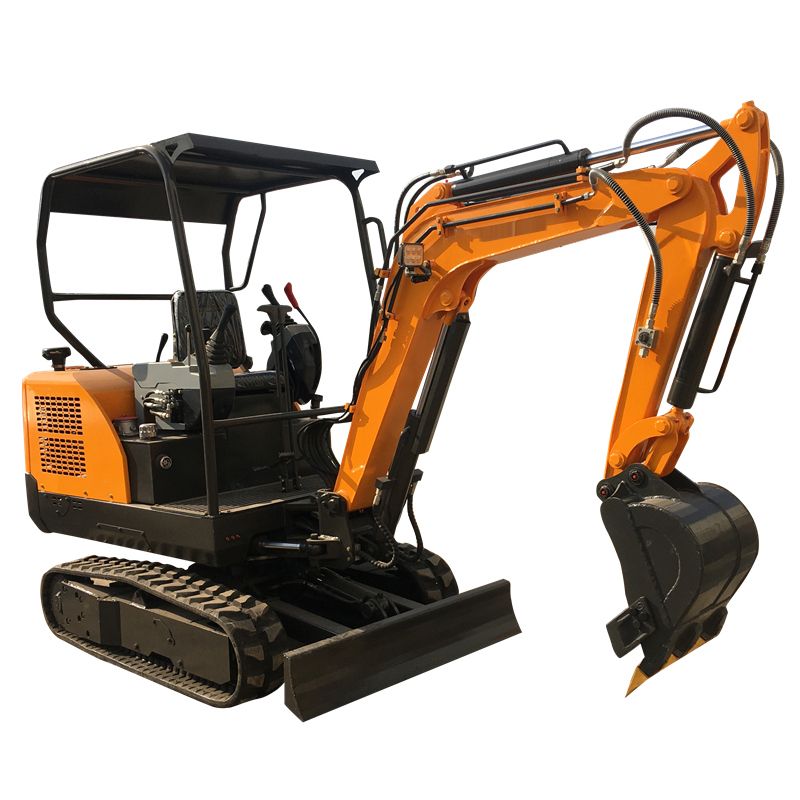

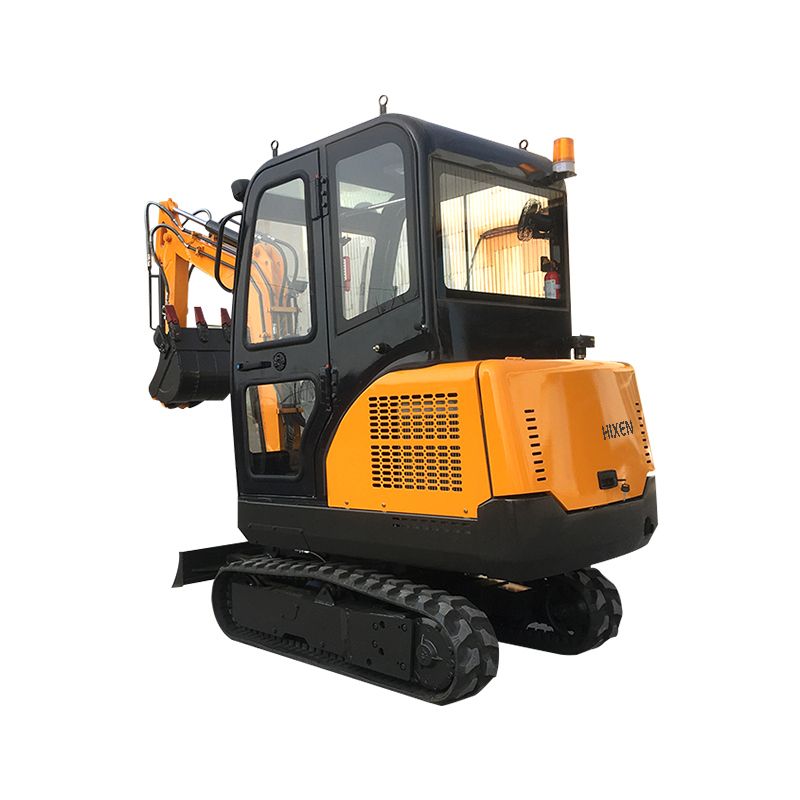

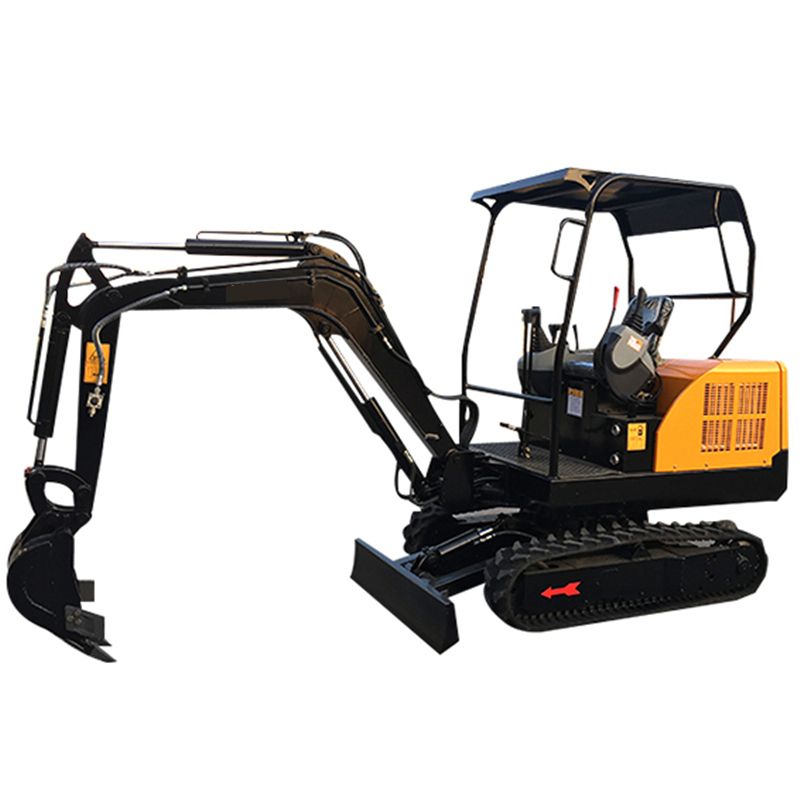

CE Mini Digger Farm Construction Excavating Machine Crawler Track Excavator
CE Mini Digger Farm Construction Excavating Machine Crawler Track ExcavatorParameter Applications1Name Crawler Excavator2ModelTX223Bucket capacity0.06m³4Engine Laidong 22.1KW/ Yanmar 19.6KW5Pump 18 Mpa, 2500rpm6Walking speed2.5 Km/h7Rotation speed10r/min8Total length3850 mm9Total width120......
Send Inquiry
Product Description
CE Mini Digger Farm Construction Excavating Machine Crawler Track Excavator
Parameter Applications
TX22 small excavator can operate flexibly in a narrow space and rotate 360 degrees. It can be used for digging drainage ditches, loosening soil, fertilization, etc. in orchards and farms; It can also be used in small projects such as tap water pipeline, natural gas pipeline, sewage pipeline, indoor and outdoor crushing, small earthwork and so on. Low fuel consumption and high excavation efficiency. A small excavator is equal to 10 labor, saving time, labor and money.
Feature
1. Mini and flexible: It is compact design, flexible operation even in small spaces.
2. Small horsepower and low fuel consumption.
3. High stability:adpoting solid cast iron to greatly improve the stability of the chassis.
4. Wide use: such as excavation, crushing, bulldozing, drilling, grabbing.(can option different accessories)

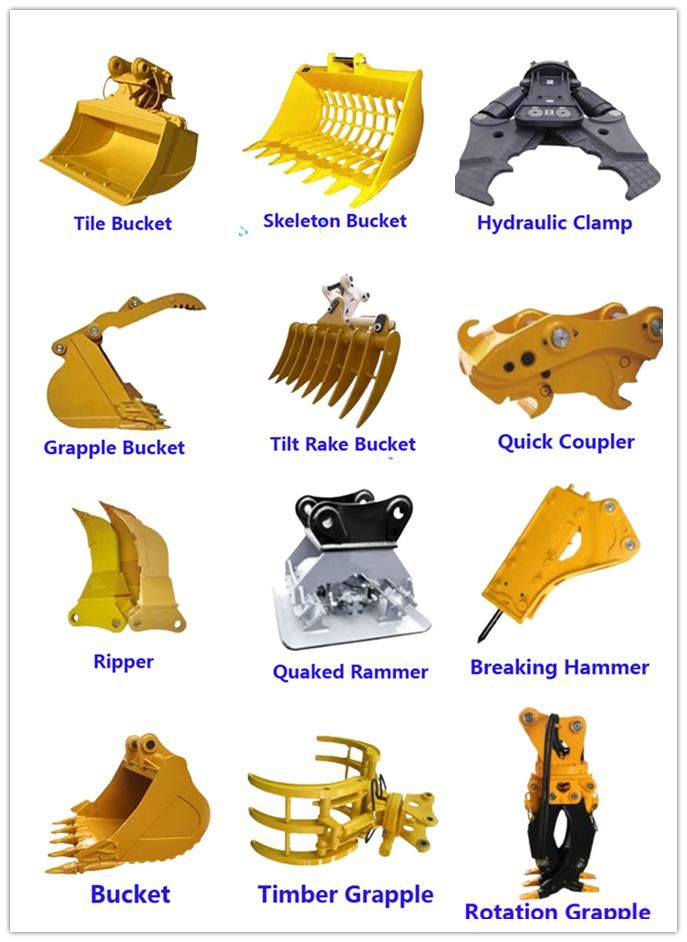

Rich accessories,Rich functions
Auger: a drill hole for planting trees, electric poles, etc
Mechanical rake bucket: scarifying and turning the soil in farmland and orchard, digging medicinal materials, etc
Wood grabber: handling, loading and unloading of wood in forest farms and pastures; It can also be used for handling and loading cotton, sugarcane, palm fruit, scrap iron, etc
Crushing hammer: Mining on the mine, road crushing, indoor demolition, etc
Scarifier: scarifying farmland
It is mainly used for road breaking, river dredging, mountain road reclamation, snatching and transportation, ditch digging, fertilization, weeding, etc

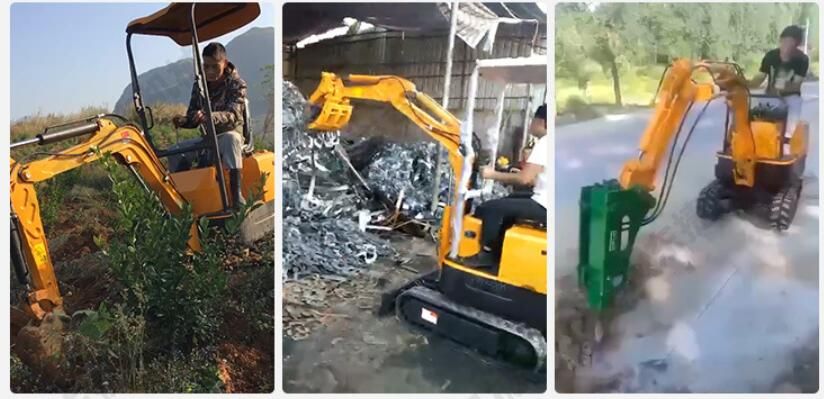

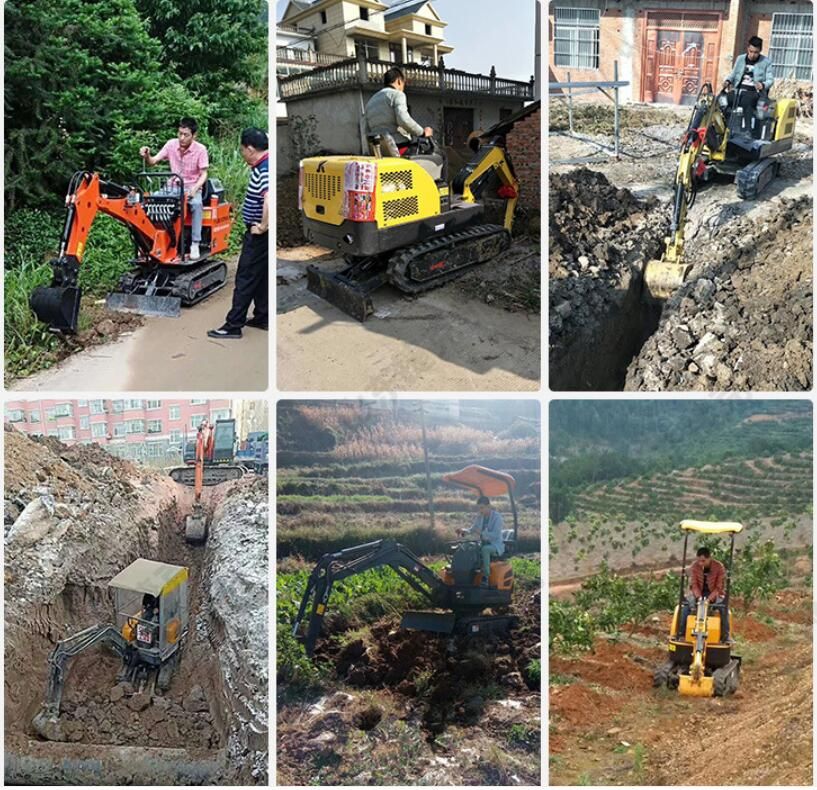

Application

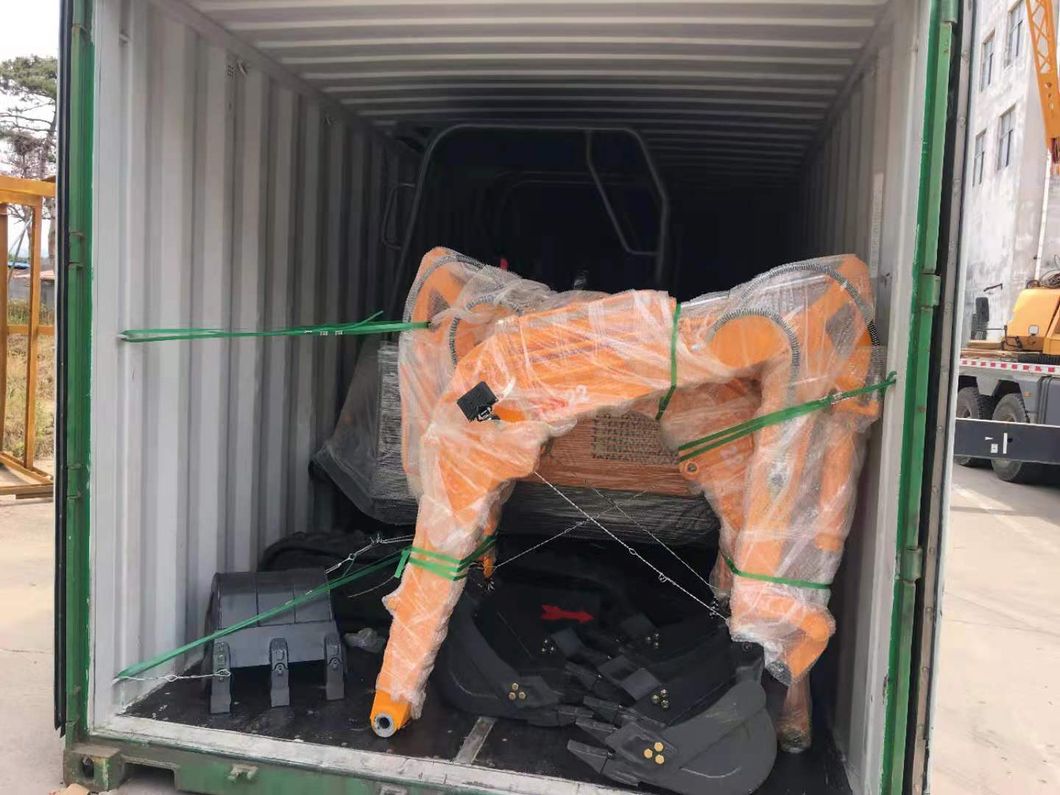

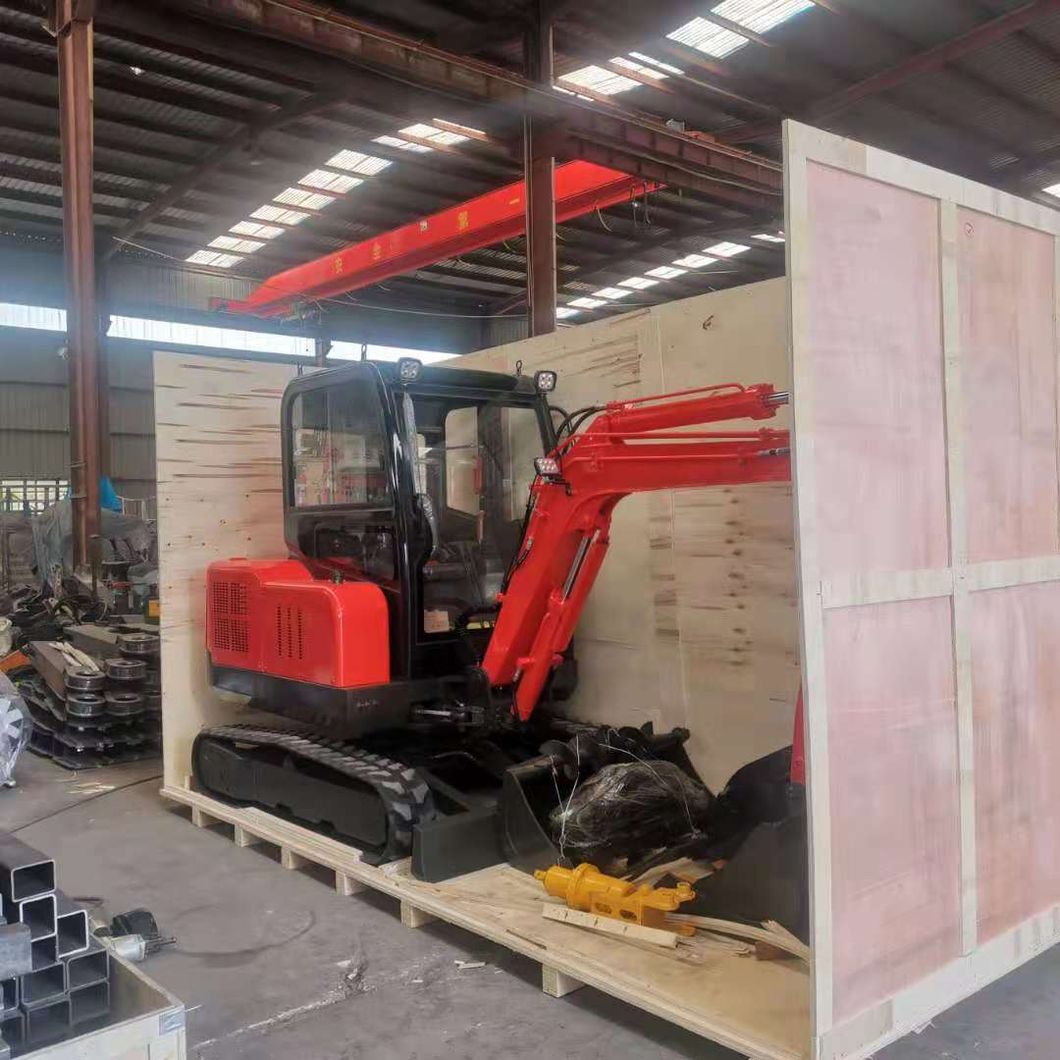

Packaging
LCL: Wooden packing

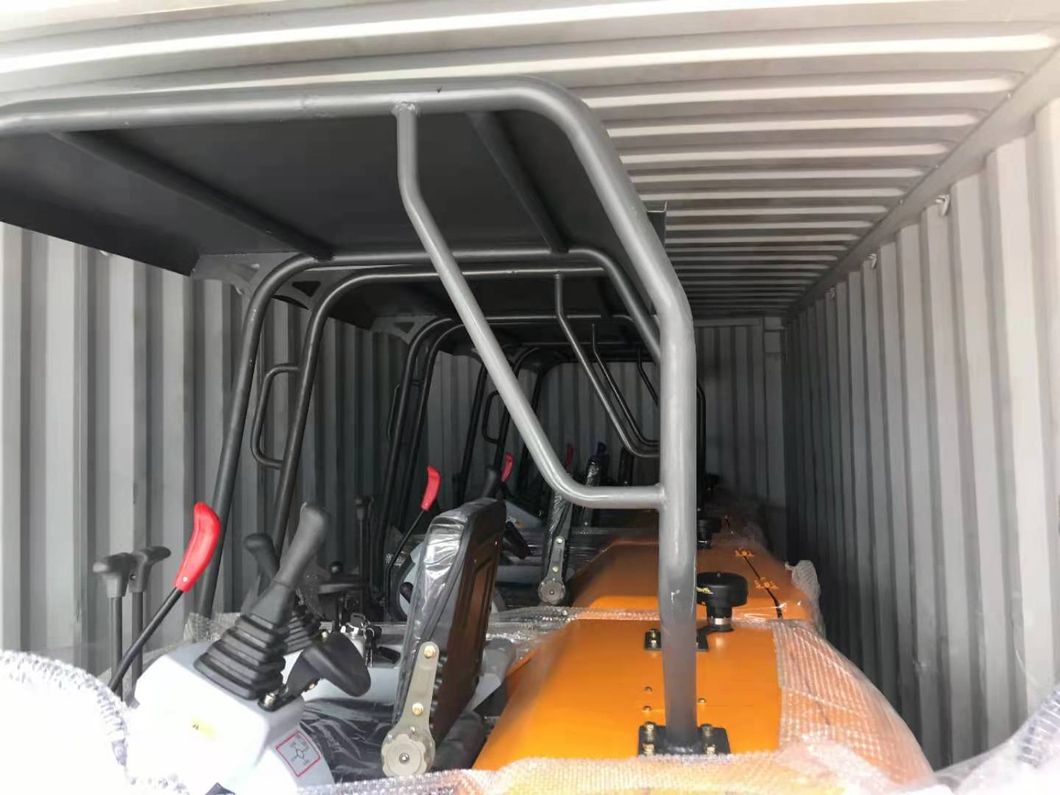

FCL: A 20ft container can load 4pcs.
FAQ
Parameter Applications
| 1 | Name | Crawler Excavator |
| 2 | Model | TX22 |
| 3 | Bucket capacity | 0.06m³ |
| 4 | Engine | Laidong 22.1KW/ Yanmar 19.6KW |
| 5 | Pump | 18 Mpa, 2500rpm |
| 6 | Walking speed | 2.5 Km/h |
| 7 | Rotation speed | 10r/min |
| 8 | Total length | 3850 mm |
| 9 | Total width | 1200 mm |
| 10 | Total height | 2200 mm |
| 11 | Turning radius | 1270 mm |
| 12 | Crawler length | 1900 mm |
| 13 | Crawler width | 230 mm |
| 14 | Body width | 1060 mm |
| 15 | Maximum digging height | 3550 mm |
| 16 | Maximum dumping height | 2450 mm |
| 17 | Maximum digging depth | 2240 mm |
| 18 | Maximum digging radius | 4050 mm |
| 19 | Swing angle | 360° |
| 20 | Climbing gradient | 30° |
| 21 | Bulldozer maximum depth | 275 mm |
| 22 | Bulldozer maximum raising height | 230 mm |
TX22 small excavator can operate flexibly in a narrow space and rotate 360 degrees. It can be used for digging drainage ditches, loosening soil, fertilization, etc. in orchards and farms; It can also be used in small projects such as tap water pipeline, natural gas pipeline, sewage pipeline, indoor and outdoor crushing, small earthwork and so on. Low fuel consumption and high excavation efficiency. A small excavator is equal to 10 labor, saving time, labor and money.
Feature
1. Mini and flexible: It is compact design, flexible operation even in small spaces.
2. Small horsepower and low fuel consumption.
3. High stability:adpoting solid cast iron to greatly improve the stability of the chassis.
4. Wide use: such as excavation, crushing, bulldozing, drilling, grabbing.(can option different accessories)
Rich accessories,Rich functions
Auger: a drill hole for planting trees, electric poles, etc
Mechanical rake bucket: scarifying and turning the soil in farmland and orchard, digging medicinal materials, etc
Wood grabber: handling, loading and unloading of wood in forest farms and pastures; It can also be used for handling and loading cotton, sugarcane, palm fruit, scrap iron, etc
Crushing hammer: Mining on the mine, road crushing, indoor demolition, etc
Scarifier: scarifying farmland
It is mainly used for road breaking, river dredging, mountain road reclamation, snatching and transportation, ditch digging, fertilization, weeding, etc
Application
Packaging
LCL: Wooden packing
FCL: A 20ft container can load 4pcs.
FAQ
1. Are you a manufacturer or a trade company?
We are an integration of industry and trade, we produce excavators by myself and produce many parts for better cost and quality control.
2.How do you guarantee your product quality?We have standard production line with experienced engineers and mechanics. We have many customers to provide professional advices, and we constantly update and upgrade.
3.Can I put label/logo on your product?
Yes ,we welcome any kinds of cooperation.
4.What is the payment terms?
We accept T/T,L/C, usually 30% payment for deposit and balance before shipment. We will send customer detailed photos and videos for loading container and shipping advice for shipment.
5.How about your delivery time?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on your quantity.
6.Do you test your goods before delivery?
Yes ,each excavator will be strictly tested before delivery.
