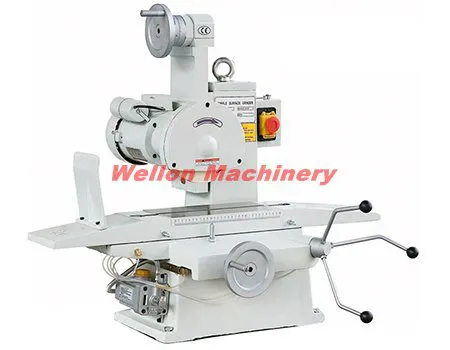

Manual Surface Grinding Machine (MJ7115) Manual Surface Grinder

Performence Features:MJ7115 surface grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively.It can also grind contoured workpieces with shaped wheel or craftsmanship apparatus.With small dimensions, lig......

Send Inquiry

Product Description

Performence Features:
MJ7115 surface grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively.
It can also grind contoured workpieces with shaped wheel or craftsmanship apparatus.
With small dimensions, light wight, smoothly safe operation and convenient maintenance, etc.,
It can be used in small enterprises, repairing shops, household industry, lab, teaching demonstrations, etc.
Integrated grinding head of high quality, high rigidity and accuracy, small size and light weight, easy operation and maintenance, centralized lubrication for oil pump
Technical parameter:

SPECIFICATIONS	MJ7115
Longitudinal stroke	340mm/14"
Cross stroke	170mm/7"
Vertical stroke	210mm/8"
Table size(W*L)	152304mm/6"12"
Width of T-slot	1-12mm/1-0.47"
Cross feed per graduation	0.02mm/0.001"
Cross feed per round	2.54mm/0.1"
Vertical feed per graduation	0.025mm/0.001"
Vertical feed per round	1.25mm/0.05"
Size of grinding wheel	18031.7513mm
Motor power	0.55kw
Roughness	1.6μm
N.W. / G.W. of machine	210/260kg
N.W. / G.W. of stand	30/54kg
Overal dimensions of machine	930780730mm
Case dimensions of machine	1100760860mm
Case dimensions of stand	720550550mm

STANDARD CONFIGURATION
grinding wheel, grinding wheel adaptor,
grinding wheel dresser, pad irons, tools, etc.
SPECIAL CONFIGURATION
stand, permanent magnetic chuck, precision flat
vise, ball leadscrew model
