500L Homogenizer Mixer Homogenizing Tank Mixer High Shear Mixer Emulsifying Mixer for Sanitizer Machine

Product Description

high speed mixing tank 500L electric heating mixing tank
Stainless steel Mixing Tanks with high speed mixer (mixing disperse) is widely used in dairy and chemical production. The mixing speed can be 36rpm, 60rpm or any other higher mixing speed. Widely used speed of mixing tank shown as below 500L electric heating mixing tank
500L Homogenizer Mixer Homogenizing Tank Mixer High Shear Mixer Emulsifying Mixer for Sanitizer Machine

500L Homogenizer Mixer Homogenizing Tank Mixer High Shear Mixer Emulsifying Mixer for Sanitizer Machine

36rpm mixing tank (Stainless steel mixing tank with fixed mixing speed)
60rpm mixing tank (Stainless steel mixing tank with fixed mixing speed)
100rpm mixing tank (fixed mixing speed)
960rpm disperser mixing tank

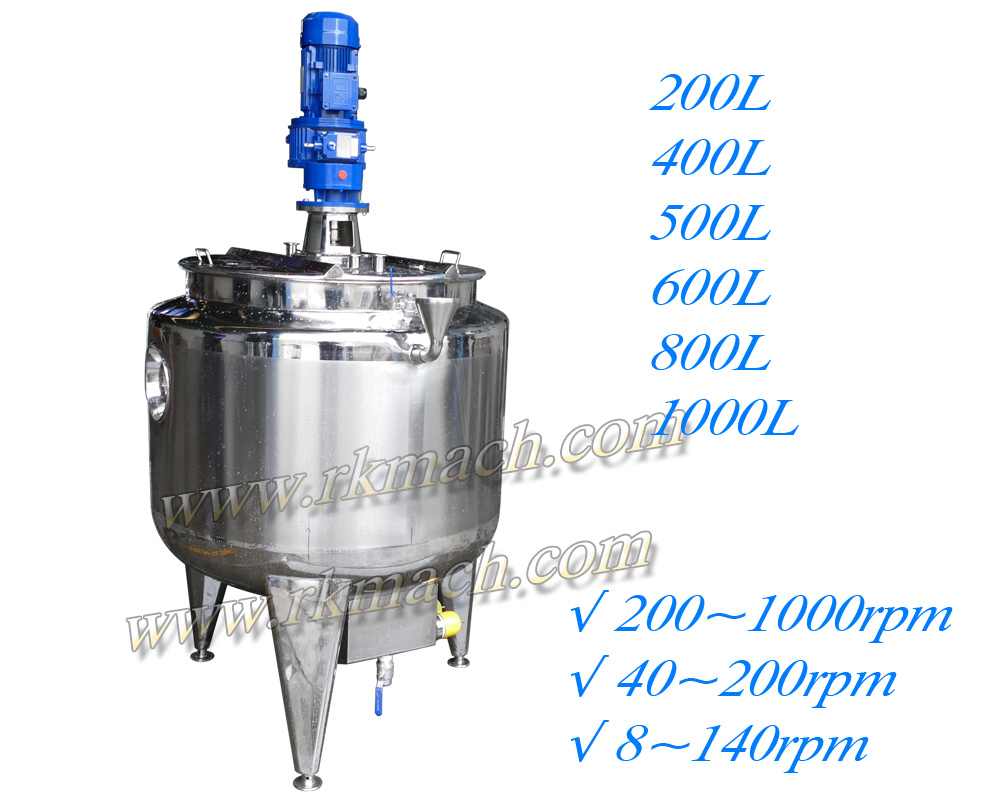

20~100rpm adjustable speed mixing tank
40~200rpm adjustable speed mixing tank
200~1000rpm adjustable speed mixing tank

Adjustable speed mixing tank use variable speed motors or frequency converter (VFD Controller by Inverter) 500L electric heating mixing tank

2000L high speed mixing tank 500L electric heating mixing tank

High Speed mixing tank can be designed with different structure: 500L electric heating mixing tank

Conical bottom High Speed mixing tank high speed mixing tank

This kind of High Speed mixing tank can be steam heating type, electric heating type or simply single wall mixing tank with a High Speedagitator on the tank top. 500L electric heating mixing tank

Dish end High Speed mixing tank high speed mixing tank

This High Speed mixing tank have a dish end. Steam heating and electric heating tanks are all available. In this High Speed mixing tank, the High Speed mixer usually fixed on the bottom of the tank. For sticky liquid, such as shampoo and cosmetic, buyers usually want us add scraping agitator to the High Speed mixing tank in order to improve the mixing efficiency. 500L electric heating mixing tank

Vacuum mixing tank with High Speed mixer 500L electric heating mixing tank

This High Speed tank usually used for washing liquid and skin care lotion which have a lot of bubbles when mixing. The tank comes with a sealed top (conical tank top or dome top). The High Speed mixer can be fixed on the tank top or tank bottom.

Multifunctional High Speed mixing tank 500L electric heating mixing tank

High Speed mixer can be used on scraping type mixing tank, vacuum mixing tank and heating mixing tanks. Under special request, a High Speed mixing tank can be equipped with double motor, three motor. A widely used design is High Speed mixer used together with high speed dispenser (or scattered disc agitator) and a side scraping agitator. 500L electric heating mixing tank

500L Homogenizer Mixer Homogenizing Tank Mixer High Shear Mixer Emulsifying Mixer for Sanitizer Machine

500L electric heating mixing tank

High Speed mixing tank can be many different structure for different product and production request. The main tank capacity ranging from 200Liter to 2000liters. Here below we list out all the hot sell High Speed mixing tanks' specification 500L electric heating mixing tank

No.	Item	Specification & explanations
1	Tank capacity	200L ~ 2000L
2	Material	Stainless steel 304 / SS316
3	Function	High Speed mixer + steam heating /electric heating
4	Optional Structure	Double layer with dish top flange connection Single wall with bottom High Speed mixer High Speed mixing tank with steam jacket and insulated wall Oil jacketed High Speed mixing tank Directly heating type high speed mixer
5	Diameter	Φ600 ~ Φ1800
6	Height	800 ~ 2500 mm
7	Heating type	Electric (oil) heating / steam heating / hot water heating
8	Heating elements	Made of SS304, 3~36KW
9	High Speed motor	1.1~15KW use 3phase electricity
10	Mixing speed	Customized 25~2800rpm
11	Discharge	Drainage from tank bottom with 1~2" thread pipe
12	Liquid inlet	Inlet from dish top with 1~2" thread pipe
13	Spare hole	A spare hole available on the dish top with 1~2" pipe thread
14	Cleaning	CIP cleaning ball with 1" clamp connection on dish top
15	Unit price	Please contact us directly for the High Speed mixing tank price

high speed mixing tank 500L electric heating mixing tank

High Speed mixing tanks are used throughout the chemical process industries, wherever it is necessary to produce standardized mixtures of ingredients that do not naturally mix. These include:

Pharmaceuticals, preparations of suspensions and granular products high speed mixing tank
Paper manufacture, bleaching and preparation of paper pulp high speed mixing tank
Food preparation, emulsions for condiments, sauces and dressings high speed mixing tank
Manufacture of cosmetics high speed mixing tank

high speed mixing tank 500L electric heating mixing tank
High Speed mixing tank's price listed in this site may not the suitable one for you. Please get in touch with us directly for an accurate offer. high speed mixing tank
