China Horizontal Fertilizer Powder Plow Plough Shear Mixer Machine

Product Description

High Speed Horizontal Plough Shear Industrial Powder Ploughshare Mixer

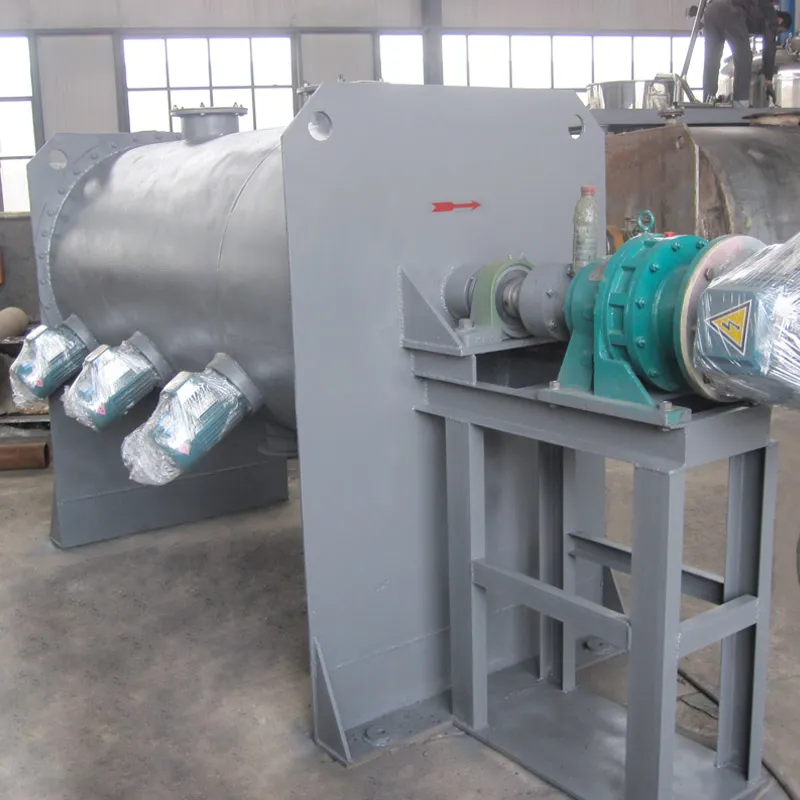

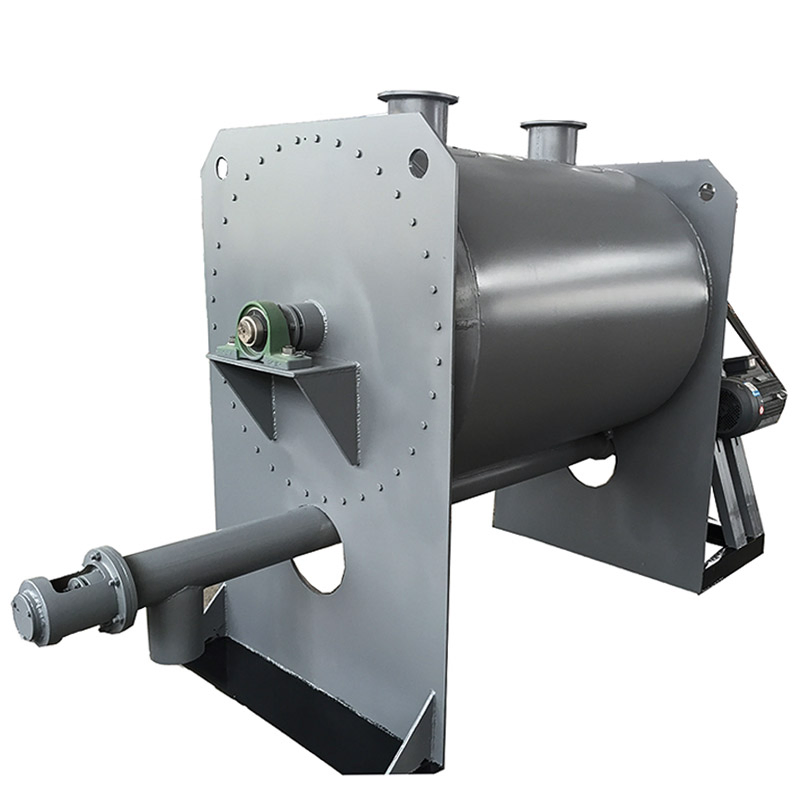

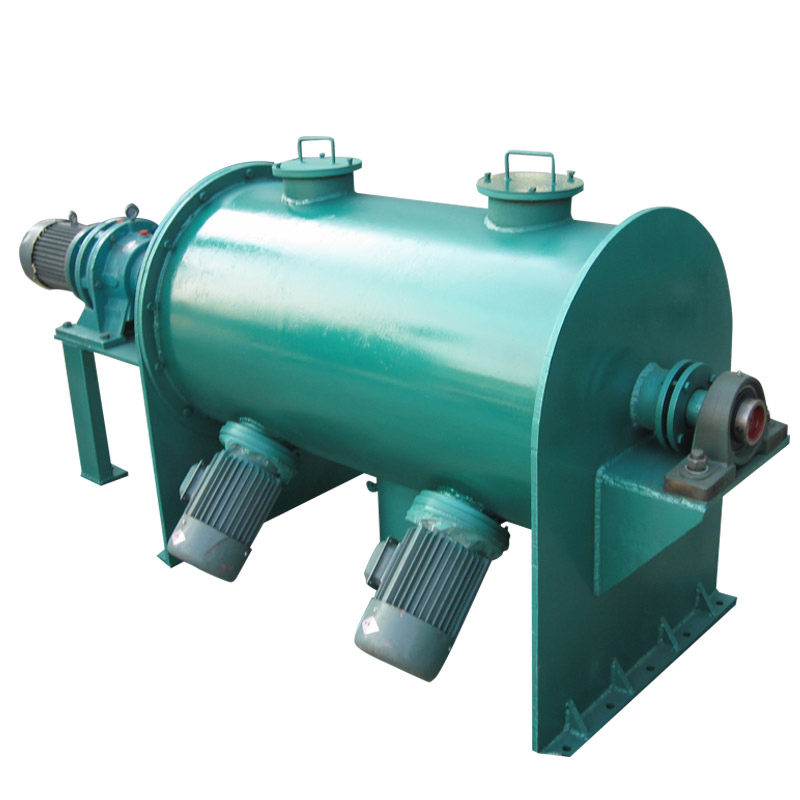

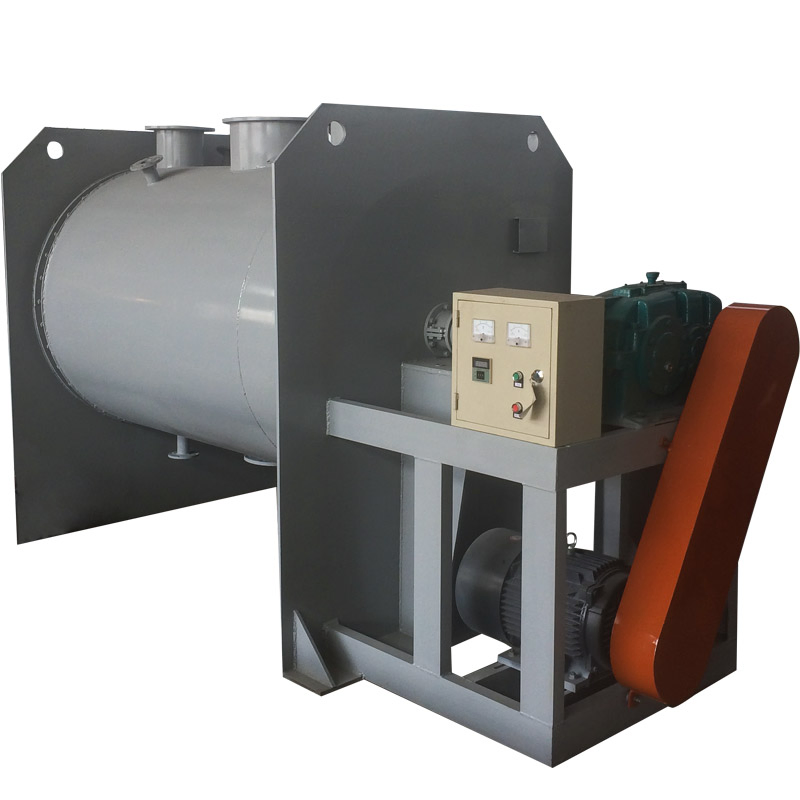

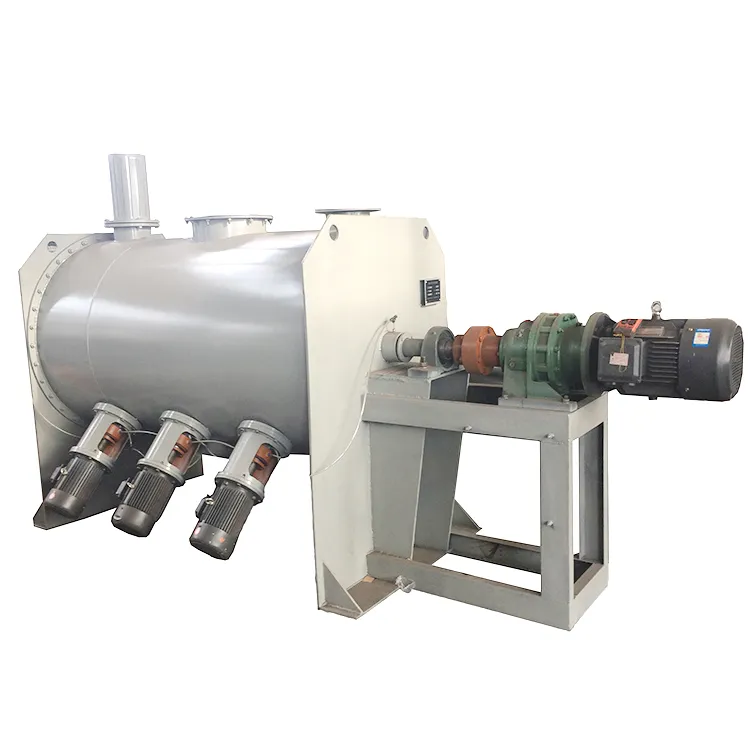

Plough shear mixer is formed circular cylinder barred, drive mechanism, plough shears ,discharging vent and other devices ; plough share inside mixer is rotating with main axial so that the materials along with the cylinder cantilever radial circumferential turbulence, at the same time the radial material through shear group, was scattered by the high speed sheer ,constant alternation, compound, the materials is mixed uniformity in short time.

Horizontal Fertilizer Powder Plow Plough Shear Mixer Machine

Features of plough mixing machine :

1. It is high speed to the materials for cutting , crushing ,blending.
2. It is with attractive appearance under advance processing technology , there is smaller gap between plough shear and barrel .
3. Main shaft seal with PETP seal and air -purged seal .
4. It can be added heating or cooling jacket device if necessary

Plough Mixer Parameters

Model	Total Volume	Effective Volume	Motor Power(KW)
KDH-0.1	100L	40-60L	3
KDH-0.3	300L	120-180L	4
KDH-0.5	500L	200L-300L	7.5
KDH-1	1000L	400L-600L	11
KDH-1.5	1500L	600L-900L	15
KDH-2	2000L	800L-1200L	18.5
KDH-3	3000L	1200L-1800L	18.5
KDH-4	4000L	1600L-2400L	22
KDH-6	6000L	2400L-3600L	30
KDH-8	8000L	3200L-4800L	45
KDH-10	10000L	4000L-6000L	55
KDH-12	12000L	4800L-7200L	55
KDH-15	15000L	6000L-9000L	75
KDH-20	20000L	8000L-12000L	120

Optional Features:
1.Carbon Steel, Stainless Steel 304, Stainless Steel 316L

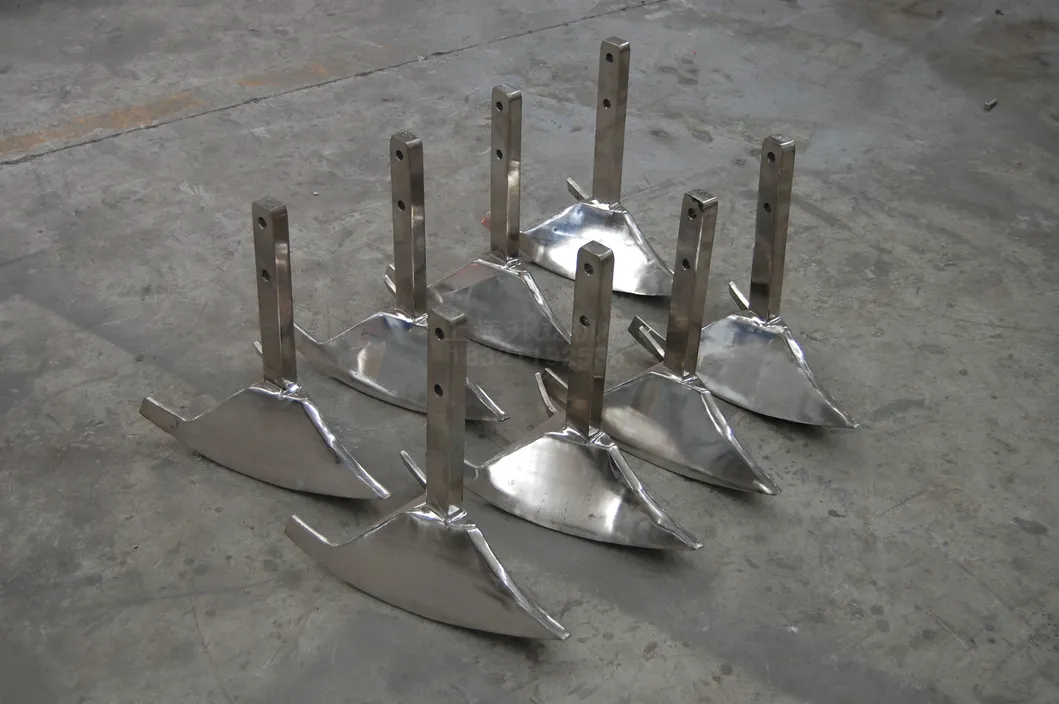

2.Different type of plough according to material characteristics
3.Internal pressure
4.Sanitary type construction
5.Flap valve, butterfly valve, slide gate valve, ball valve
6.Horsepower to suit higher density materials
7.Explosion-proof motors
8.Controls such as variable frequency drives, motor starters and operator stations are available
9.Spray nozzles for liquid introduction
10.Jacket for heating or cooling
