Horizontal Ribbon Mixer (WLDH Series)

Product Description

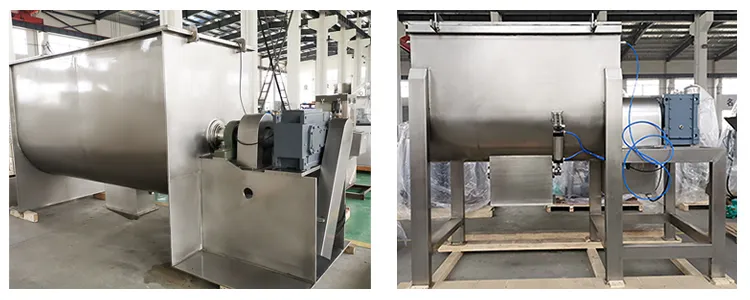

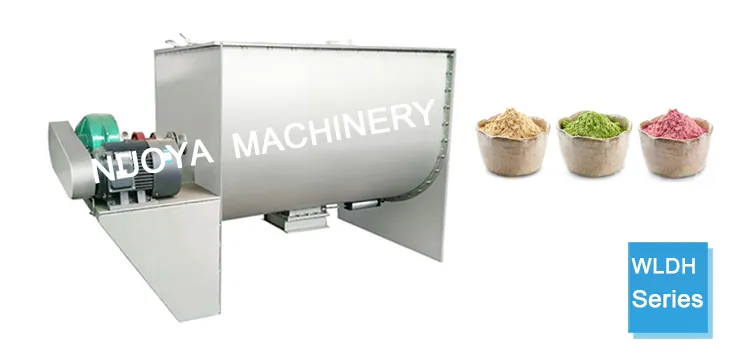

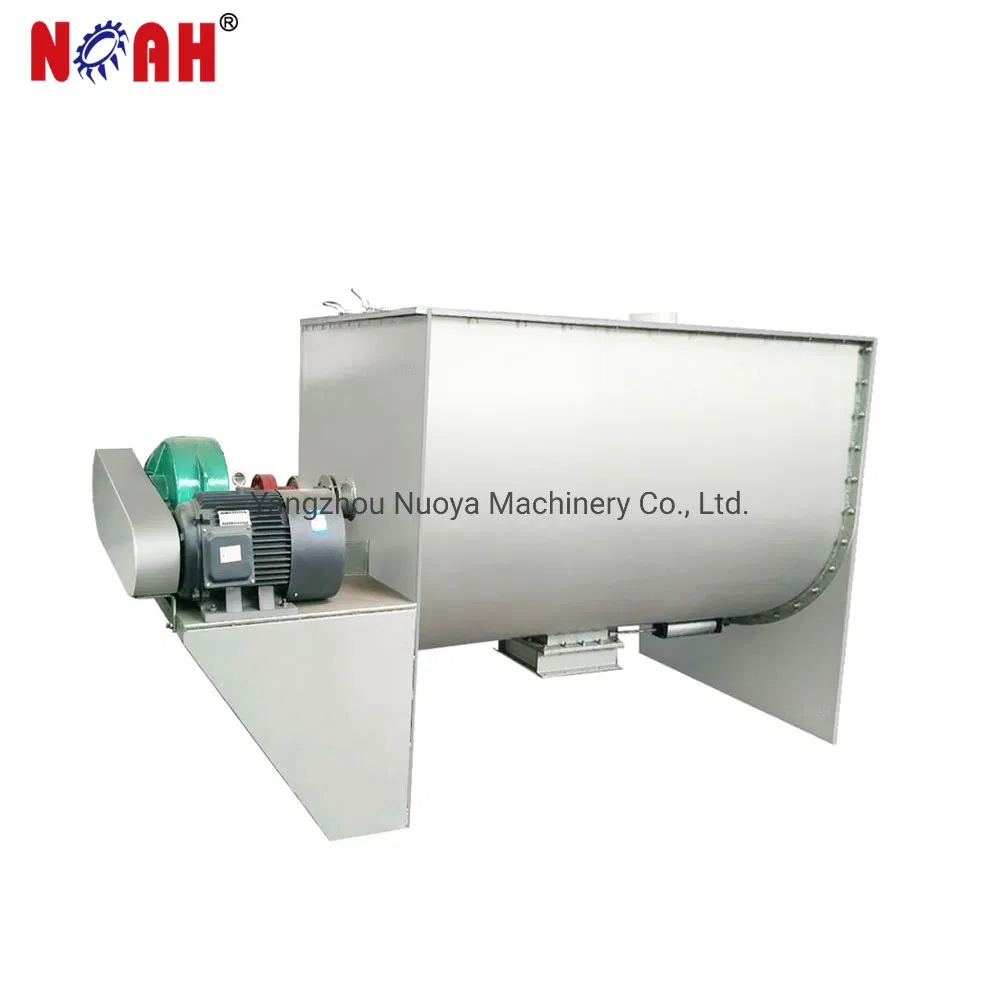

WLDH Series Horizontal Ribbon Mixer

Product Description:
Our machine is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material.
Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.

Characteristic :
1, It is a high efficiency horizontal ribbon mixer.
2, Big coefficient of loading, small occupied area.
3, The cylinder cover can be fully open so as to clean and change the device.
4, It has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder

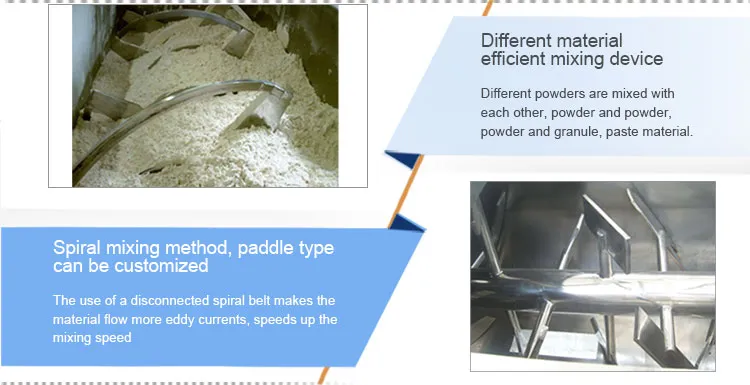

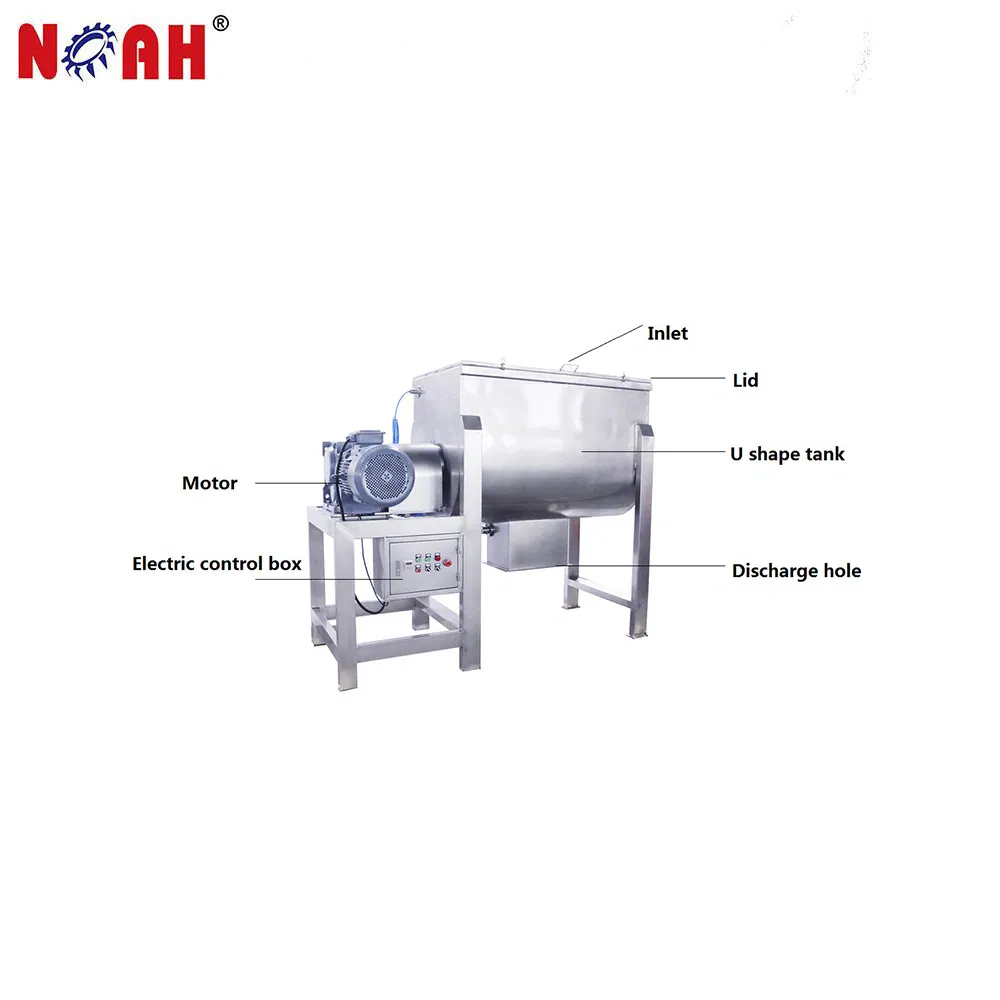

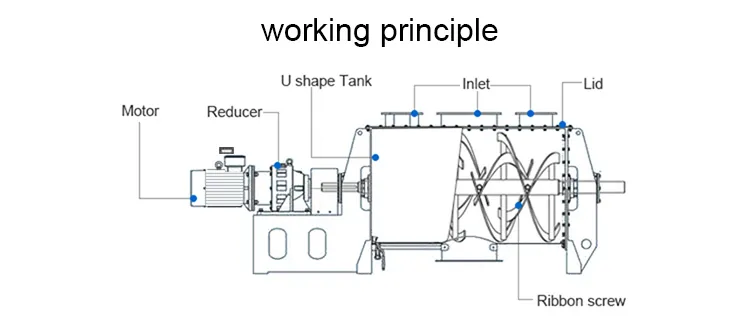

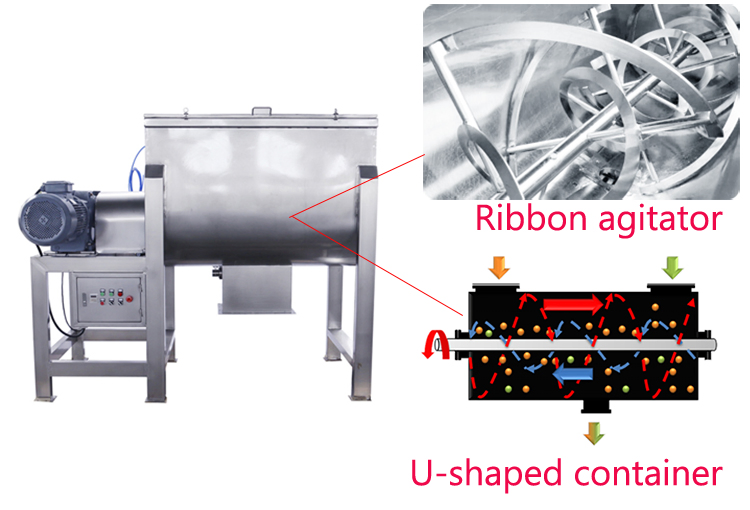

5, It comprises of U-shaped container, transmission parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix.

Model/Project	All Volume (M3)	loads coefficient	Power (kw)	Size(mm)	Weight (kg)
WLDH -0.1	0.1	0.4-0.6	3	1190×740×770	330
WLDH -0.3	0.3		4	2030×630×980	720
WLDH -0.5	0.5		7.5	2320×730×1130	980
WLDH -1	1		11	2800×920×1320	1700
WLDH -1.5	1.5		11	3180×1020×1550	1800
WLDH -2	2		15	3310×1120×1640	2100
WLDH -3	3		18.5	3750×1290×1820	3000
WLDH -4	4		22	4220×1400×1990	3980
WLDH -5	5		22	4220×1500×2100	4620
WLDH -6	6		30	4700×1610×2260	6180
WLDH -8	8		37	4420×2150×2470	8200
WLDH -10	10		45	5520×2960×2720	8920
WLDH -12	12		45	5720×3010×2840	9520
WLDH -15	15		55	5840×3540×2940	9950
