Natural Gas Burner Conveyor Belt Control System Baghouse Asphalt Mixing Plant Lb2000

Product Description

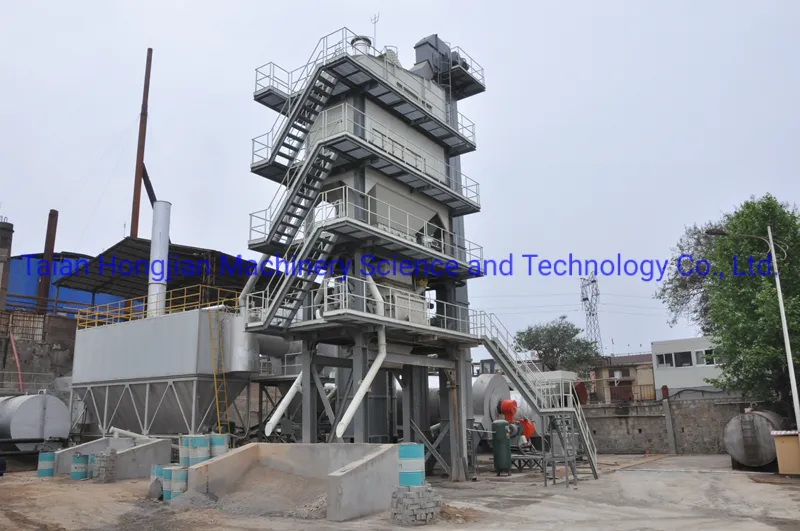

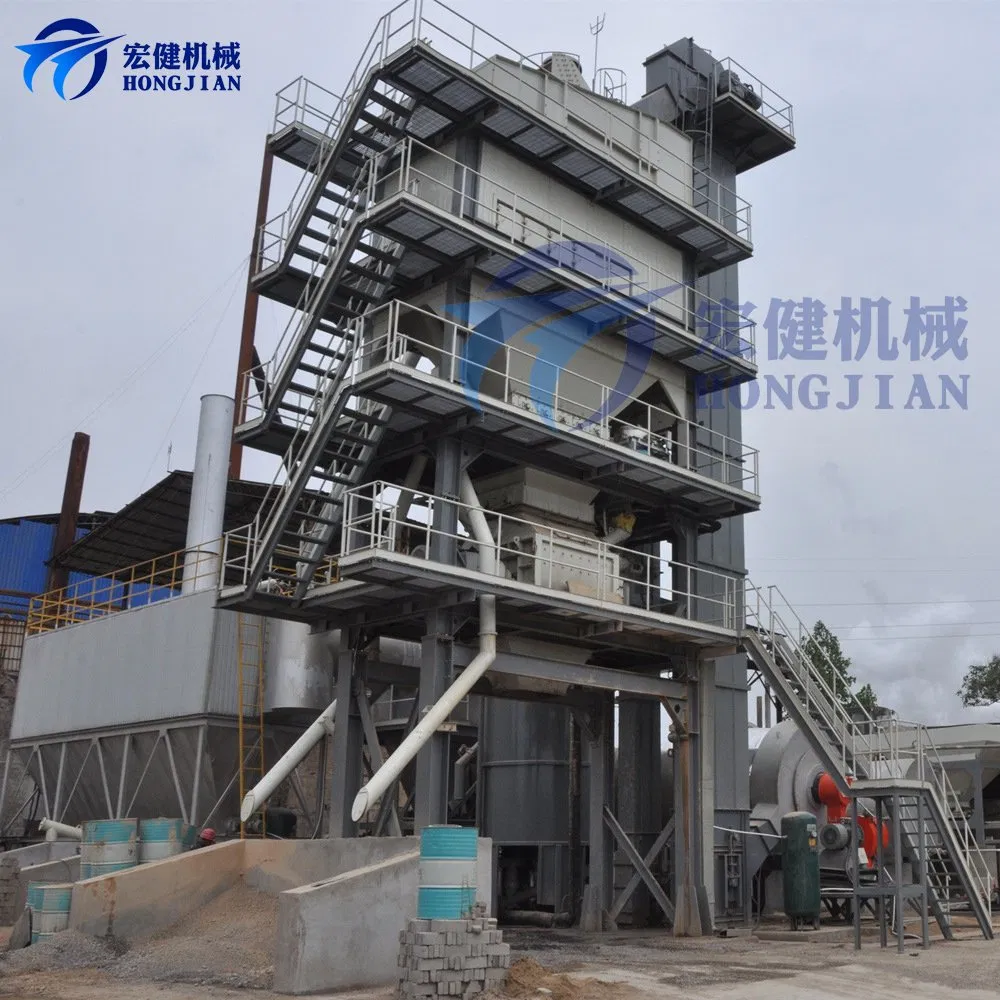

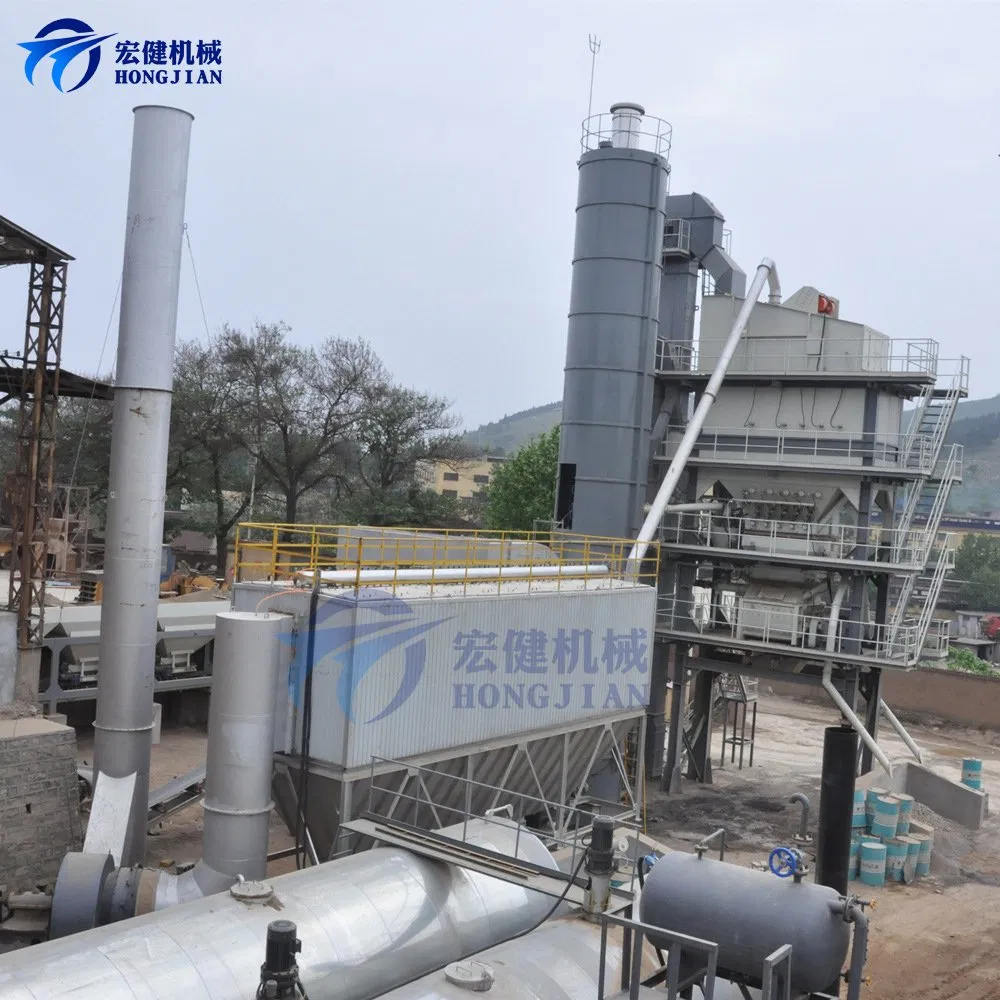

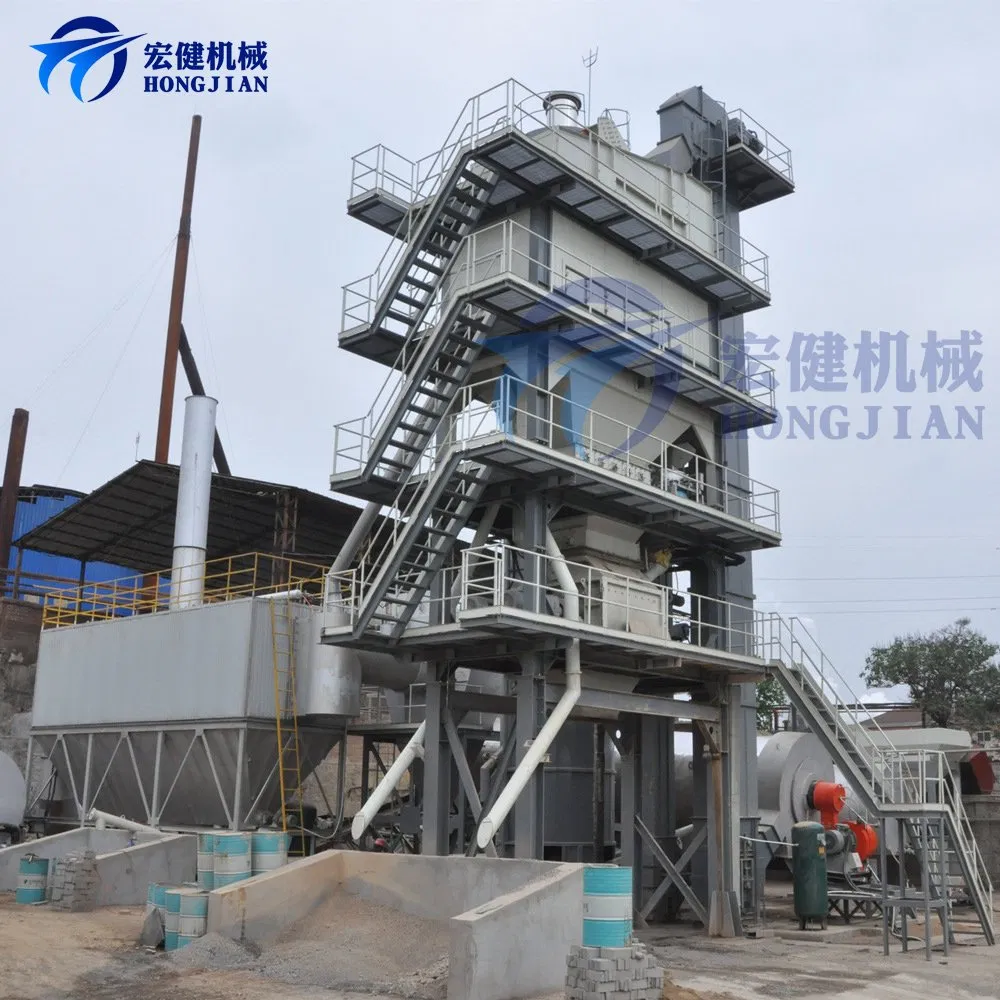

Natural Gas Burner Conveyor Belt Control System Baghouse Asphalt Mixing Plant LB2000

How Does An Asphalt Plant Work?
It is utilized to heat, dry cold aggregates, and blend them with bitumen, RAP, and other binders as per diverse recipes to produce different final mixtures for road surface paving.

Asphalt batching plant is a set of equipment that produces final mixture batch by batch and characterized by intermittent pauses between batches. Due to the accurate weighing system for dosing the aggregates, bitumen, and other admixtures, the products of it are of high quality.

The Working Principle Of Asphalt Plants:
1. Feed cold aggregates into different bins according to the particle size.
2. The collection conveyor belt below bins and an inclined conveyor belt successively transfer them to the drying drum.
3. After dried, the hot materials come out and enters the elevator, which transports them up to the screening system.
4. The hot aggregates get separated by multiple-layer vibrating screens.
5. They enter into temporary storage bins, the number of which is equal to that of screens.
6. They are released to the mixer below in accordance with the dosing weights set on the control panel.
7. Simultaneously, bitumen and optional mineral fillers are also weighed and released into the mixer.
8. After mixed for less than 20 seconds, the final mix is discharged into the waiting truck or the special storage silo.

LB Series Asphalt Mixing Plant Parameter Seletion Table:

Model	LB500	LB800	LB1000	LB1500	LB2000	LB3000	LB4000	LB5000
Production Capacity(t/h)	40	64	80	120	160	240	320	400
Main Power(Kw)	150	185	245	350	450	650	750	900
Mixer Capacity(Kg)	500	800	1000	1500	2000	3000	4000	5000
Dedusting Method	Wet	Wet	Wet/Bag	Wet/Bag	Wet/Bag	Bag	Bag	Bag
Measuring Accuracy	Aggregate ±0.5%, Bitumen ±0.25%, Powder ±0.25%
Heating Burner	Coal/Diesel/Heavy oil/Natural gas
Bitumen Tank	25T-200T

Natural Gas Burner Conveyor Belt Control System Baghouse Asphalt Mixing Plant Lb2000

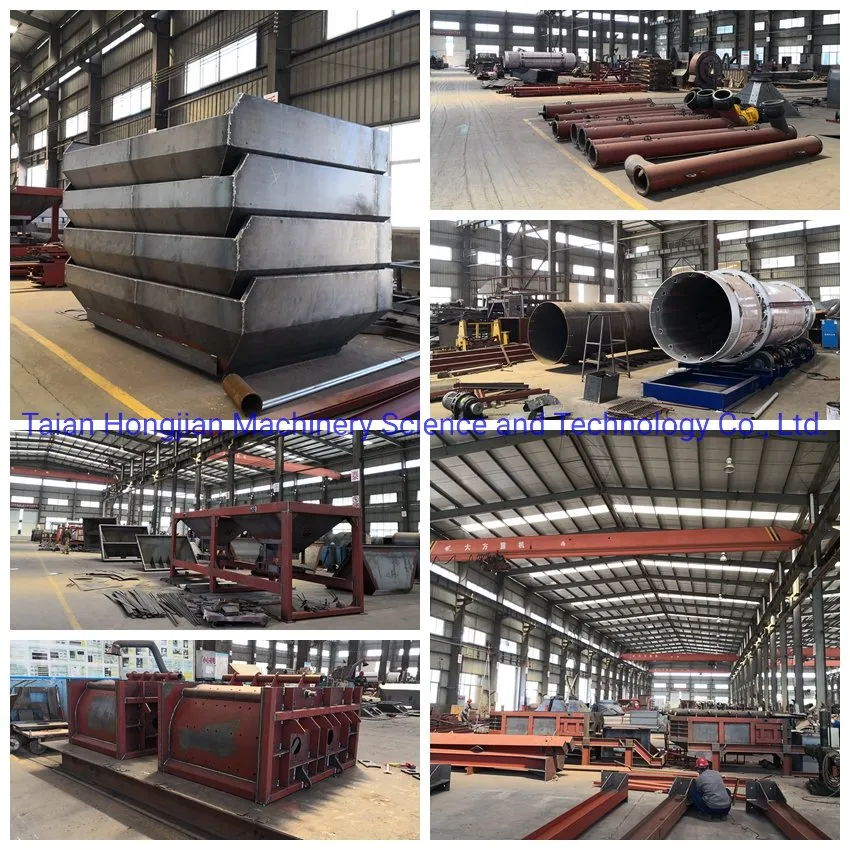

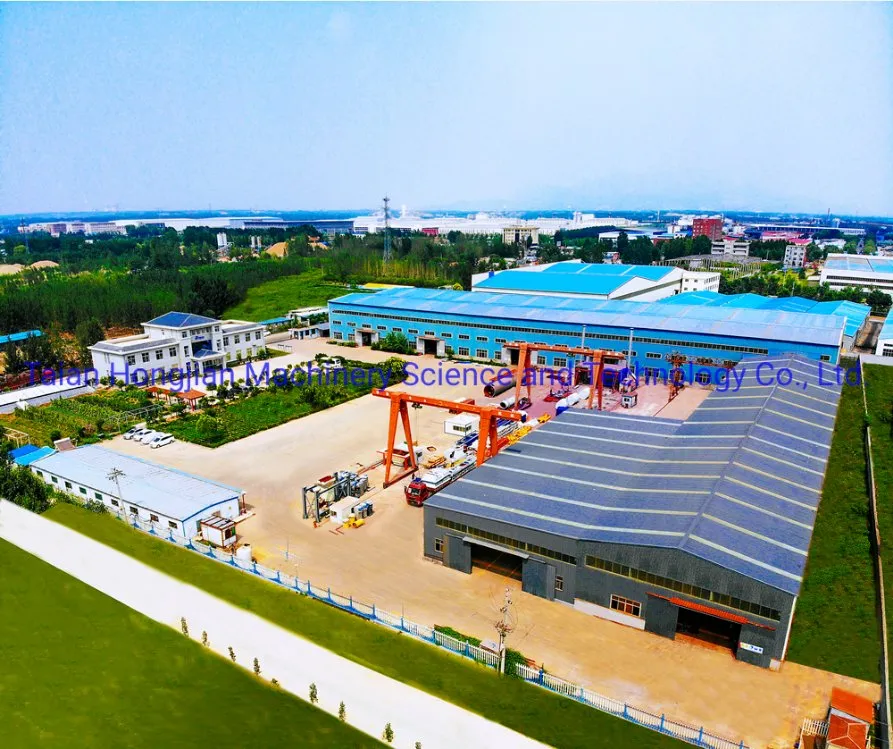

Taian Hongjian Machinery Science and Technology Co.,Ltd is an enterprise specializing in design, produce, sales and service of construction machines. Our company covers an area of 60,000m2, with more than 200 employees.

Our main products are Concrete Mixing Plant, Asphalt Mixing Plant and Stabilized Soil Mixing Plant. Establish a good reputation in the industry.
.

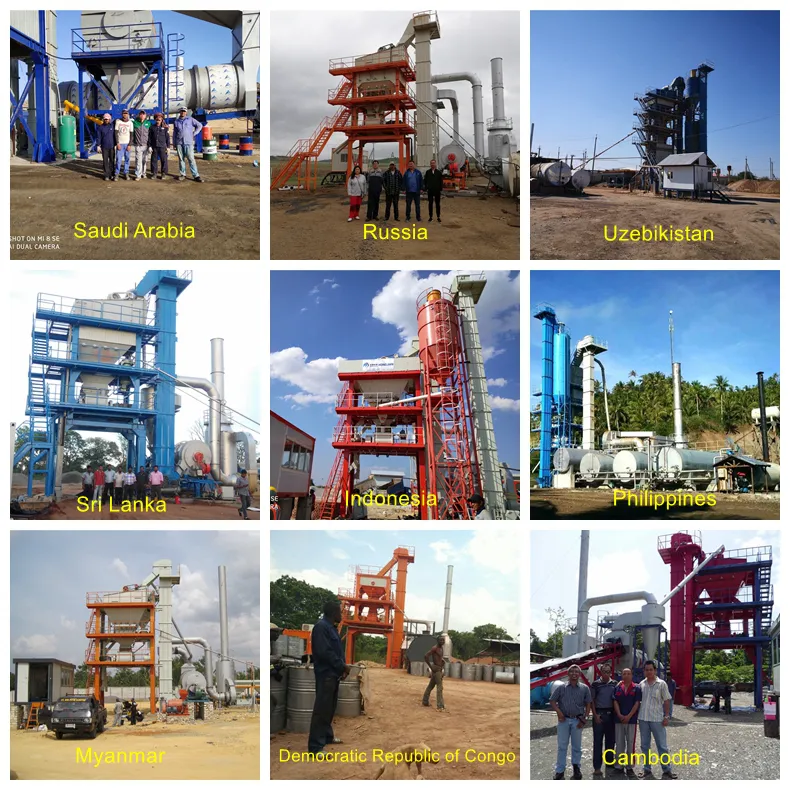

The main countries that we have been export to are: Russia, Kazakhstan, Uzbekistan, Saudi Arabia, Indonesia, Philippines, Cambodia, Myanmar, Nigeria, Ethiopia, Zambia, Mongolia, UAE, Yemen and so on.

Our management idea is survival relies on integrity , develop relies on quality, strictly on producing and rigorous on service installation. We supply perfect solutions for customers before and after sales

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Wearing parts supply

Natural Gas Burner Conveyor Belt Control System Baghouse Asphalt Mixing Plant Lb2000

Q: How about your products quality ?
A: We are professional manufacture since year 2007 and experience for mixing plants over 30years. Our products are produced according to the national and international standards, we will test each equipment before delivery.

Q: How is the price?
A: We are factory, we export by ourselves, we can offer you the best price .

Q:How many days of the production cycle of stationary asphalt batch hot mixing plant machinery?
A: usually 15days is enough, but in the hot season or during Chinese New Year, it will be 30-40days.

Q:How many days are used for installation of one set asphalt plant?
A: About 20-30 days,according to local situation,for example,the crane, power supply, electric welding equipment and other necessary instruments, material used for installation.

Q:How many workers are needed operating the stationary asphalt batch hot mixing plant machinery?
A:1 loader operator, 1 mechanical, 1 electrician, 1 the operator of the control system and 1 manager for the whole asphalt plant.

Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory at any time.

Q:Which service can you provide if I buy your products?
A:One year warranty, Assist customer for worksite layout and planning, Guide customer for foundation making, Guide customer for equipment installation, Training for operator and maintenance personnel, Provide life-time service, Provide spare parts timely, Professional service engineer regular return visit.
