55tons Electric Mickey Mouse Plug Making Machine Plastic Injection Machine

Product Description

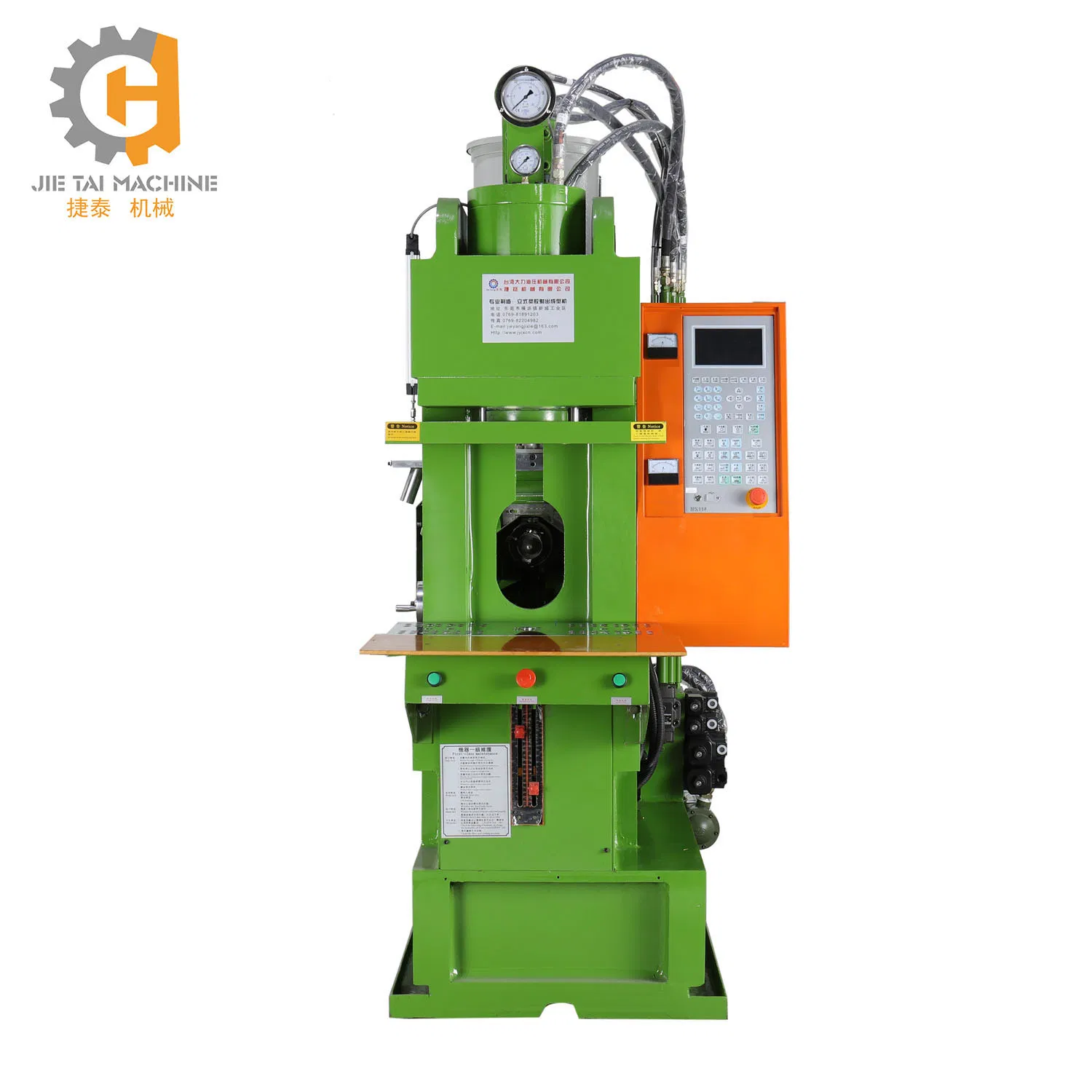

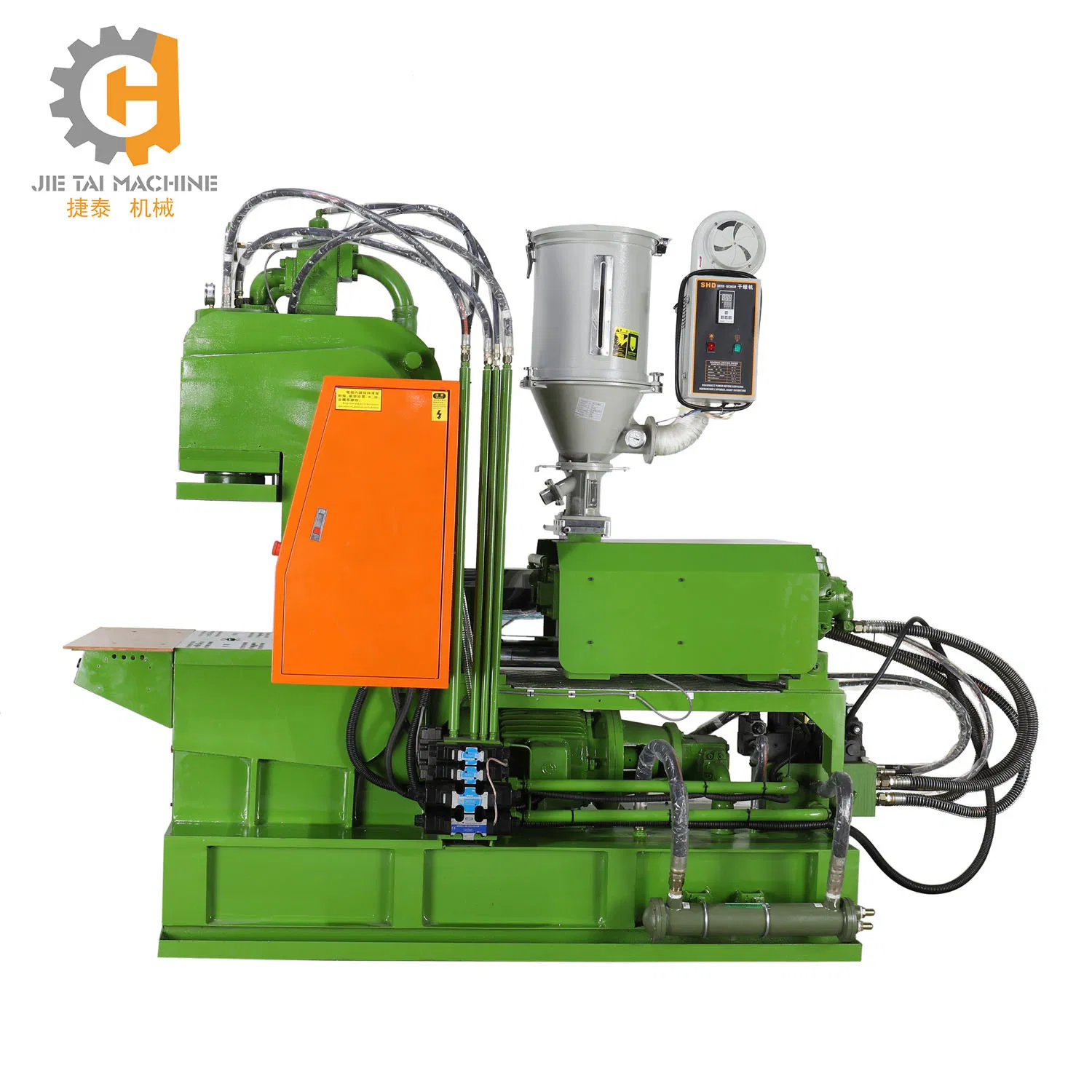

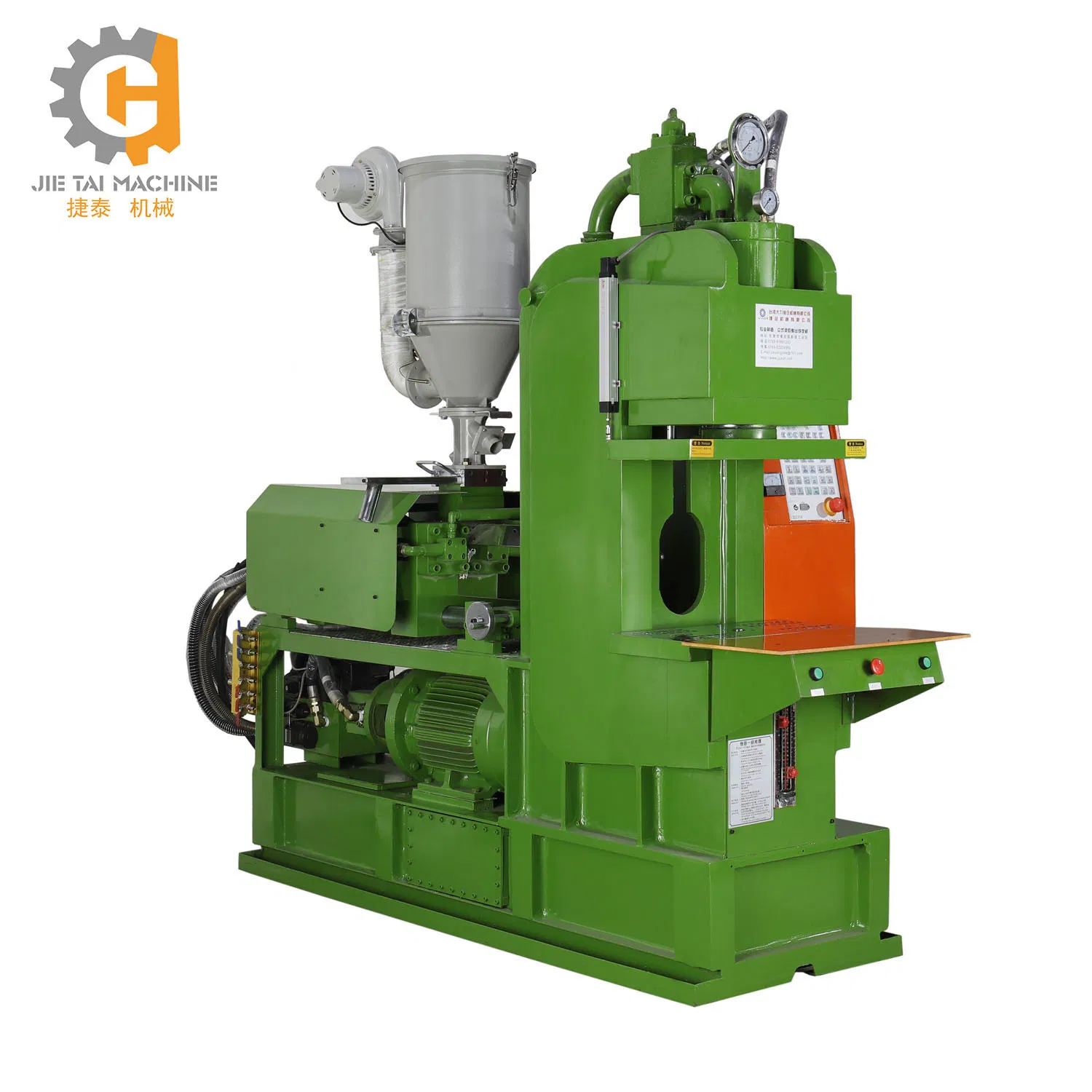

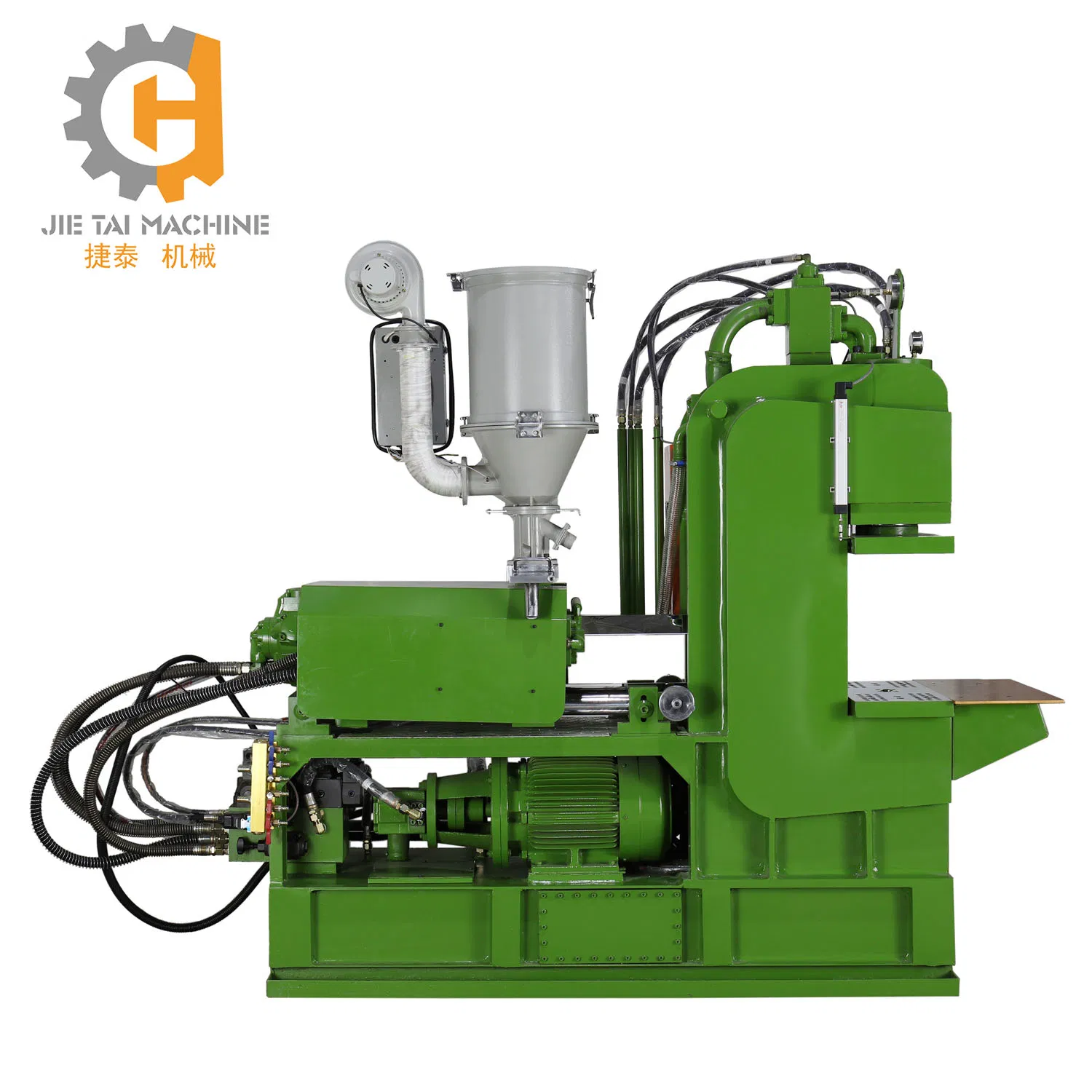

55Tons Electric Mickey Mouse Plug Making Machine Plastic Injection Machine

Product Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.

Main Features(JT-C)
1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confection.
3) Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipped with an ejector for finished products.
4)Low-pressure closed die assembly can protect the safety of die.

Specification:

	Model	Unit	JT-550C			JT-850C
Injection Unit	Screw Barrel Diameter	mm	32	38	42	40	45	50
	Injection Pressure	kg/cm	1506	1063	870	2396	1842	1533
	Theoretical Shot Volume	cm	153	215	263	251	318	393
	Max. Shot Weight	gram	139	196	239	228	289	357
	Safe Shot Weight	ounce	4.89	6.9	8.4	8	10.2	12.6
	Max. Shot Weight	cm/second	52	75	92	39.2	49.7	61.4
	Screw Barrel Route	mm	190			200
	Screw Barrel Rotary Speed	rpm	0-175			0-160
	Nozzle Contact Force	Tons	1.5			1.76
	Nozzle Retraction Nozzle	mm	170			180
	Number of Temperature Control	pcs	4			4
Clamping Unit	Clamping Force	Tons	55			85
	Platen Size	mm	480x280			580x330
	Min. Mold Height	mm	215			285
	Opening Stroke	mm	200			280
	Max. Opening Distance	mm	415			565
	Ejetor Force	Tons	1.5			2.2
	Ejetor Stoke	mm	135			135
Power/Heading Unit	Max. Hydraulic Pressure	kg/cm	140			140
	Pump Output	L/minute	40			47
	Oil Resservoir Capacity	L	280			300
	Cooling Water Consumption	L/hr	800-1000			1000-1200
	Pump Motor Power	KW/HP	7.5/10HP			11/15HP
	Barrel Heating Power	KW	4.35			8.5
	Total Power	KW	13			23
Other	Machine Weight	Tons	3.5			4.65
	Machine Dimension(LxWxH)	m	3x1.2x2.1			3.4x1.4x2.5
	Shipping Weight	Tons	4			6.5
	Shipping Measurements(LxWxH)	m	3.1x1.3x2.3			3.6x1.5x2.7

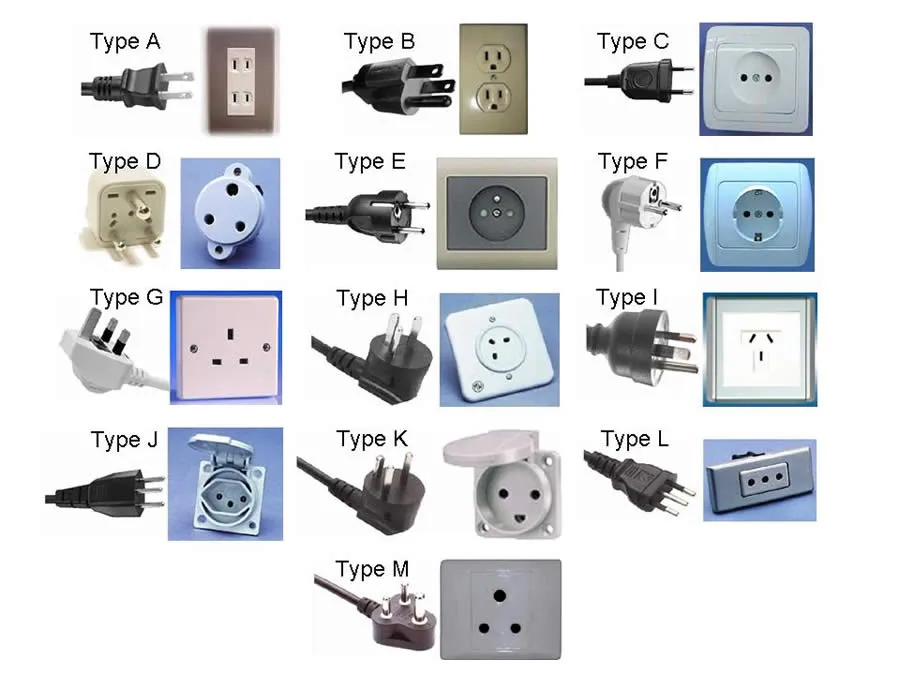

Products:
55tons Electric Mickey Mouse Plug Making Machine Plastic Injection Machine

Our Services
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ:

1.Q: Are you manufacturer or trading company?
A: We are a manufactures for vertical injection molding machine and all machines are made by ourselves.

2.Q: What's your guarantee or the warranty of the quality if we buy your machine
A: We offer you high quality machines with high quality after-sale service. Also we have one year warranty of the spare parts, free of charge.

3.Q:Can you find the mold for us?
A:We could find the mould factory to make mould for you.And then we could test the machine and mould for you.

4.Q:Can I be an agent in my market ?
A: Welcome. We need talk details about the agent agreement .
