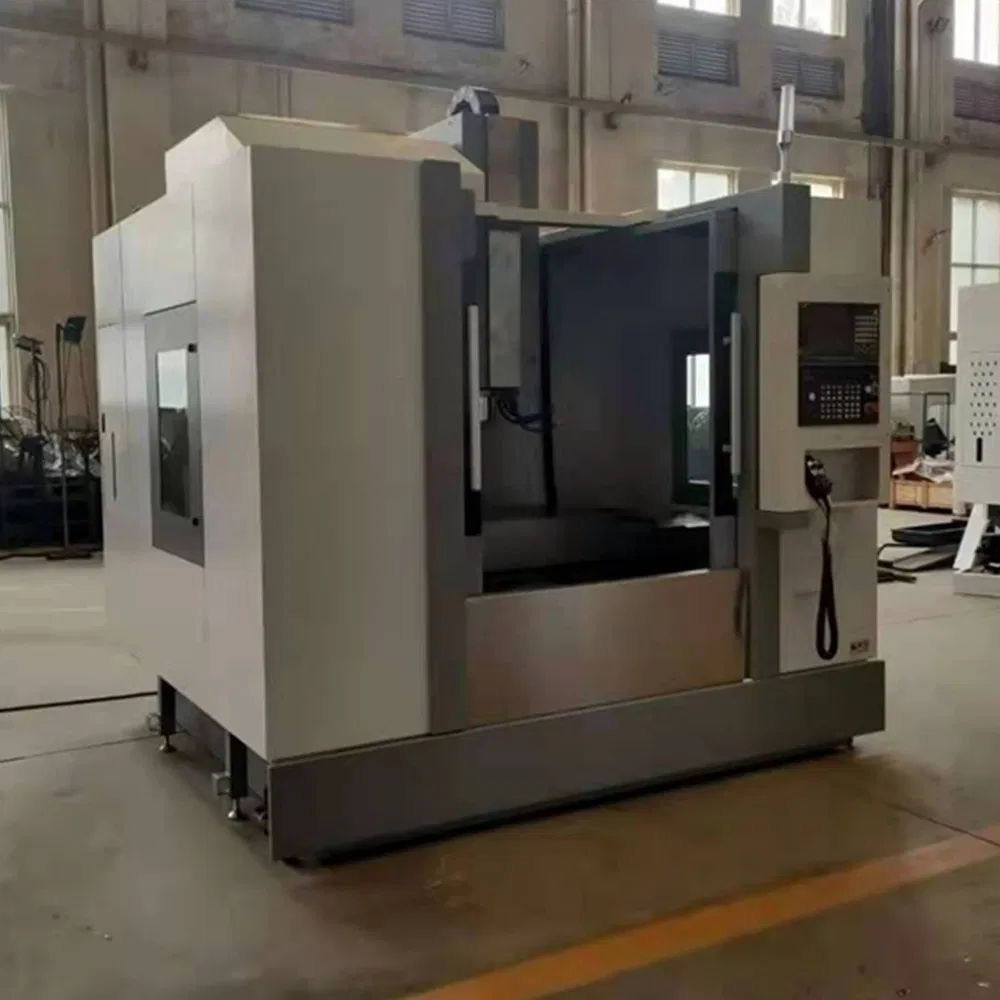

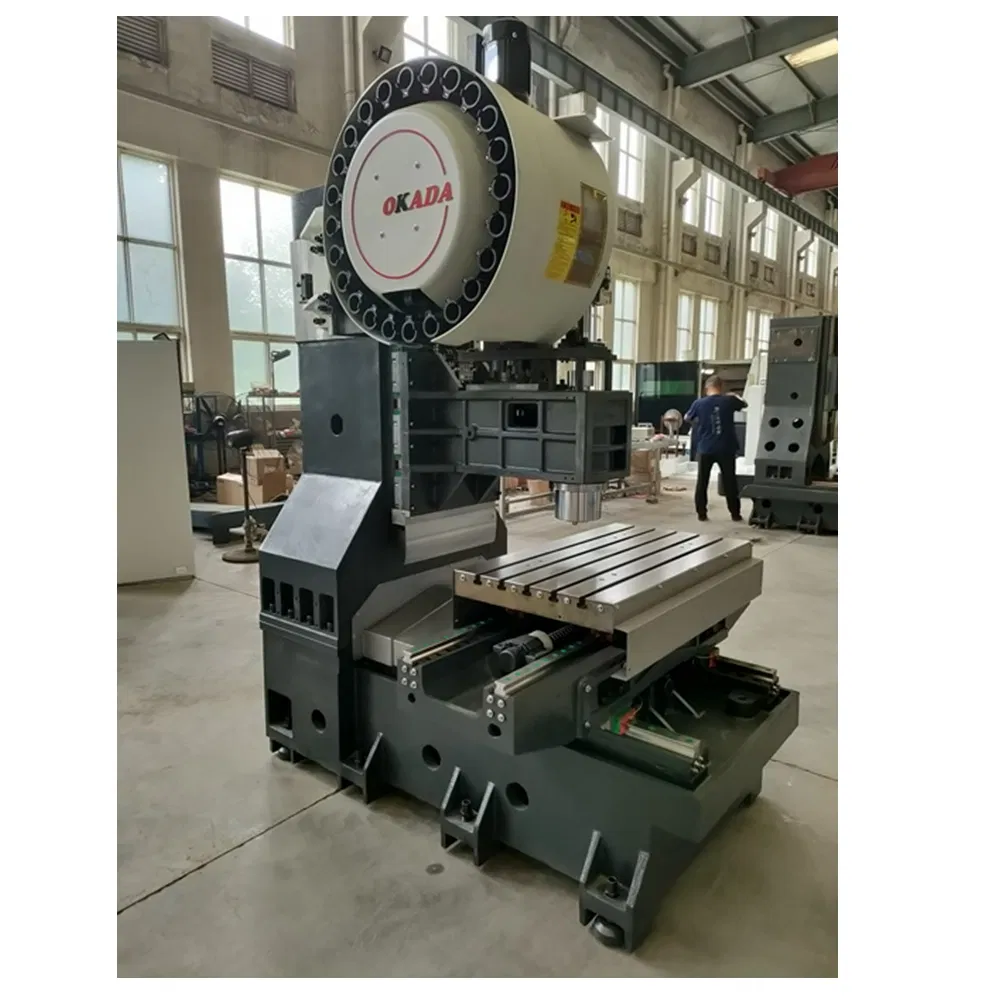

Center Vmc CNC Vertical Machining Center CNC Milling Machine for Metal Processing Price
Center Vmc CNC Vertical Machining Center CNC Milling Machine for Metal Processing PriceSpecification :Machine Parameters:Unit VMC640VMC850VMC1060VMC1160VMC1580VMC1890X/Y/Z axis travel size : mm650/400/480800/500/5001000/600/6001100/600/6001500/800/7001800/900/680Distance from spindle nose to worktab......
Send Inquiry
Product Description
Center Vmc CNC Vertical Machining Center CNC Milling Machine for Metal Processing Price
Specification :
Specification :
| Machine Parameters: | Unit | VMC640 | VMC850 | VMC1060 | VMC1160 | VMC1580 | VMC1890 |
| X/Y/Z axis travel size : | mm | 650/400/480 | 800/500/500 | 1000/600/600 | 1100/600/600 | 1500/800/700 | 1800/900/680 |
| Distance from spindle nose to worktable | mm | 80-560 | 105-655 | 180-780 | 115-715 | 170-870 | 160-840 |
| Distance from spindle center to column surface | mm | 480 | 550 | 600 | 700 | 800 | 1000 |
| Worktable (L×W) | mm | 800×420 | 1050×500 | 1300×600 | 1200×600 | 1700×800 | 2000×900 |
| Max.loading capacity of worktable | kg | 600 | 600 | 1000 | 600 | 1500 | 1600 |
| T-Slot (slot width ×number of slot ×pitch ) T | mm | 18*3*135 | 18*3*150 | 18*5*120 | 18*5*105 | 22*5*150 | 22*5*165 |
| Main spindle speed | rpm | 60-8000 | 60-8000 | 60-8000 | 60-8000 | 60-6000 | 60-6000 |
| Tool holder model (type /dia) (/) | BT40/Ф150 | BT40/BT50 | BT40/BT50 | BT40/BT50 | BT40/Ф190 | ||
| Drive manner of main spindle | BELT DRIVE | ||||||
| Motor power of spindle | kw | 5.5/7.5(30Min) | 7.5/11(30Min) | 11/15(30Min) | 11/15(330in) | 18.5/22(30Min) | 18.5/22(30Min) |
| CNC control system | FANUC /MITSUBISHI / SIEMENS | ||||||
| X,Y axis guide screw X,Y | mm | 3206 | 4010 | 4010 | 4012 | 6317 | 5508 |
| Z-axis guide screw Z axis | mm | 3206 | 4010 | 4010 | 4012 | 6317 | 5508 |
| Drive connection way | Direct connection | ||||||
| rapid moving speed of X,Y Z axis X,Y,Z | m/min | 16/24 | 16/24 | 20/24 | 30/24 | 20/24 | 16/24 |
| Max. cutting feed speed | mm/min | 5-5000 | 5-5000 | 5-5000 | 5-6000 | 5-5000 | 5-5000 |
| Motor power of Three axis | kw | 1.2/1.8 | 1.4/1.8 | 2.5 | 2.5 | 4-7 | 4-7 |
| Standard tool capacity | pc | 16/16 | 20/20 | 24/24 | 24/24 | 24/24 | 24/24 |
| Max.tool diameter /length / | mm | Disc:Ф78/250, hats-style:Ф90/300 | Ф112/350 | ||||
| Max.tool diameter( no neighbor tool ) () | mm | Ф120 | Ф200 | ||||
| Max.tool weight | kg | 7,8 | 18 | ||||
| Tool exchange manner | Pneumatic | ||||||
| Clamping and loosening of tool | Automatic (four claws) | ||||||
| Average tool exchanging time | sec | DISC-style :2-3, Hats-style :6-8 | |||||
| Positioning accuracy of X,Y,Z XYZ | mm | 0.022/0.025/0.022 | 0.025/0.025/0.025 | 0.025/0.032/0.025 | 0.032/0.042/0.025 | 0.032/0.042/0.025 | |
| Repeated positioning accuracy of X,Y,Z | mm | 0.012/0.015/0.012 | 0.015/0.015/0.015 | 0.015/0.018/0.015 | 0.018/0.020/0.015 | 0.018/0.020/0.015 | |
| Power supply | kva | 16 | 16 | 16 | 16 | 40 | |
| Power input | 3phase 380V 50Hz | ||||||
| Requirement for air compressing | kg/cm² | ≥6 | |||||
| Air supply slow | m3/min | ≥0.5 | |||||
| Machine weight | ton | 3.4/3.8 | 4.8/5.2 | 7.8/8 | 6.5/7.1 | 11.5/12.5 | 14/14.6 |
| Machine dimension (length ×width×height ) | mm | 2330×2180×2350 | 2600×2200×2600 | 3250×2700×2700 | 3000×2400×2800 | 4260×3545×3200 | 4800×3400×3800 |
