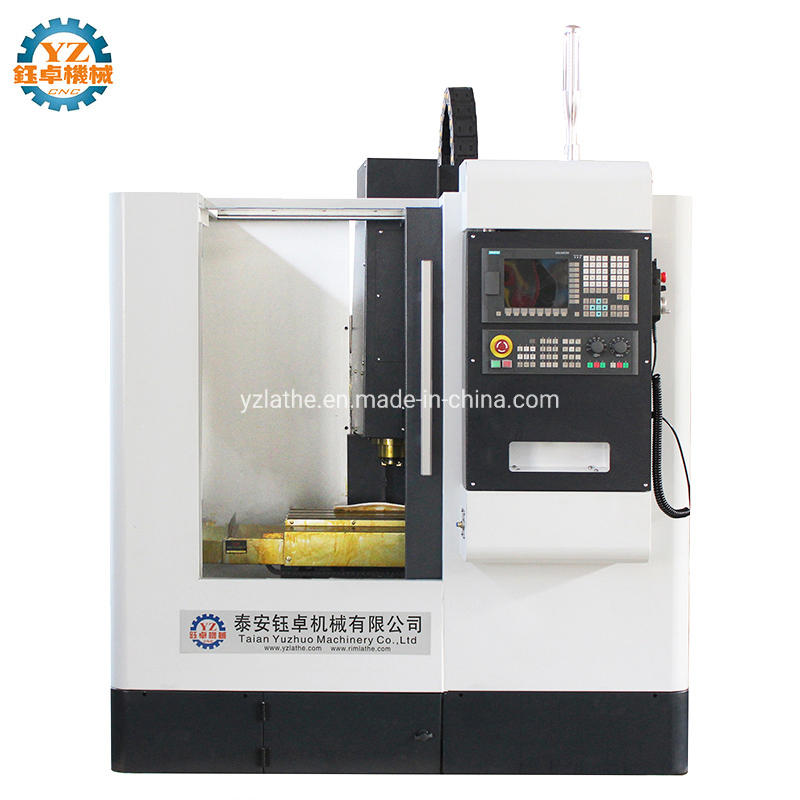

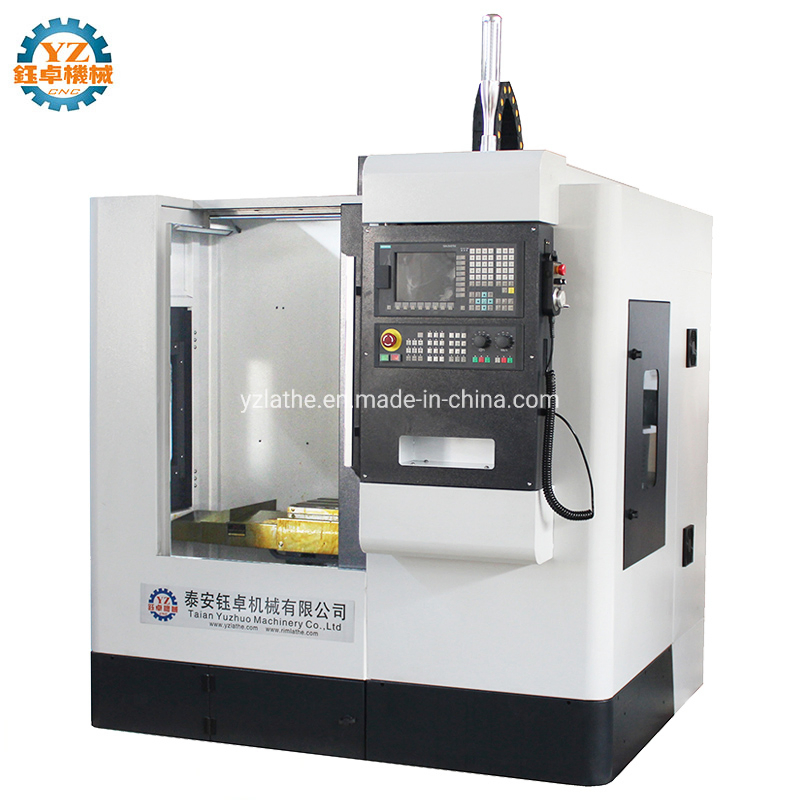

Vmc300 Small Vmc Machine Ce Approved Vmc Vertical CNC Machine Center

Product Description

VMC300 Small CNC Milling Machine Mini Small VMC Machine Vertical CNC Machining Center

Specifications

Travel
X axis	300mm
Y axis	200mm
Z axis	300mm
Distance from spindle nose to worktable	80-380mm
Distance from spindle center to column guide slot	205mm
Feed
Rapid feed in X axis	12m/min
Rapid feed in Y axis	12m/min
Rapid feed in Z axis	10m/min
Cutting feed	1-3000mm/min
Worktable
Area of worktable	600X200mm
Max. bearing capability	100kg
Height from worktable surface to bottom of bed	720mm
T-slot	3-16-80mm
Spindle
Rotating speed	100-4000rpm
Spindle taper	BT30
Pin bolt	MAS-P30T-I
Coolant pump	180w
Spindle belt	HTD520-8M
Cutter force	580kg
Main motor power	1.5/2.2kw
Miscellaneous
Size	1525x1520x1811mm
Weight	600kg
Capacity of water tank	100L

Standard Configurations:
1. Funnel type tool changer
2. Spindle blowing system
3. Cooling system
4. Air conditioning
5. Automatic lubrication system
6. Full enclosure machine guard
7. Lighting system
8. Three-color alarm light
9. KND or GSK cnc controller
10. Leveling pads & bolts
11. Air gun

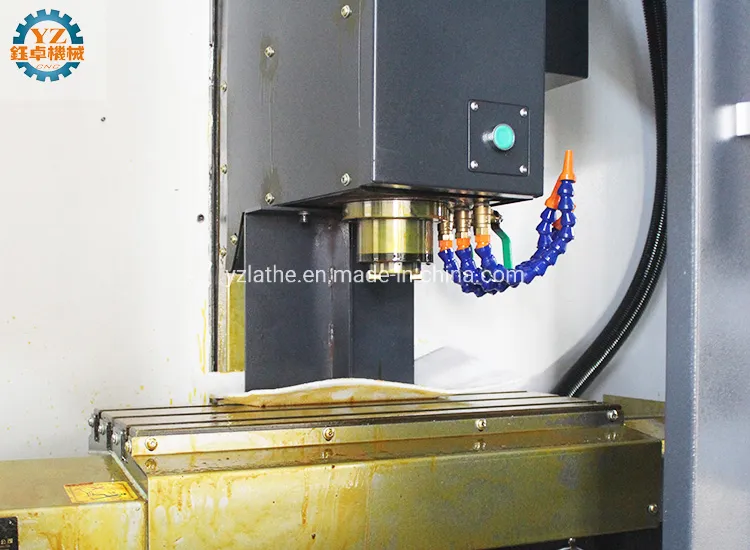

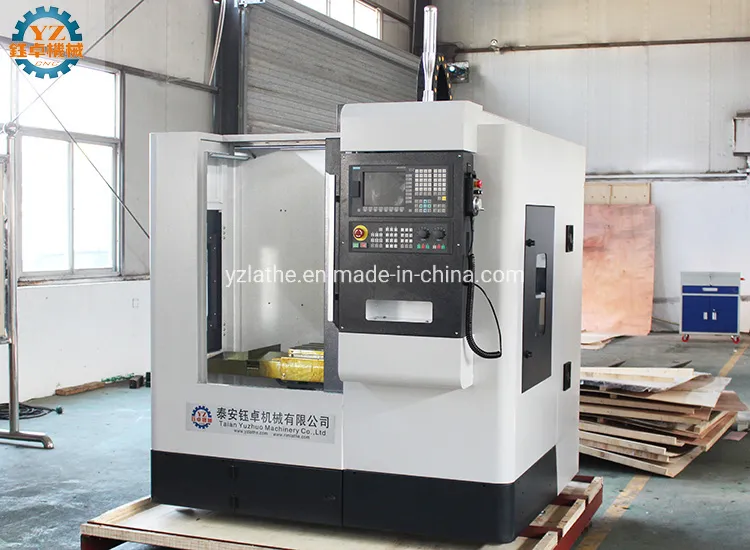

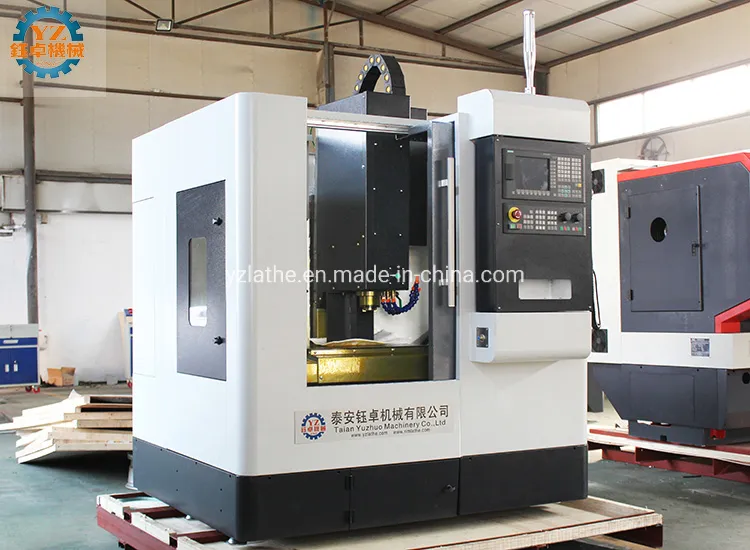

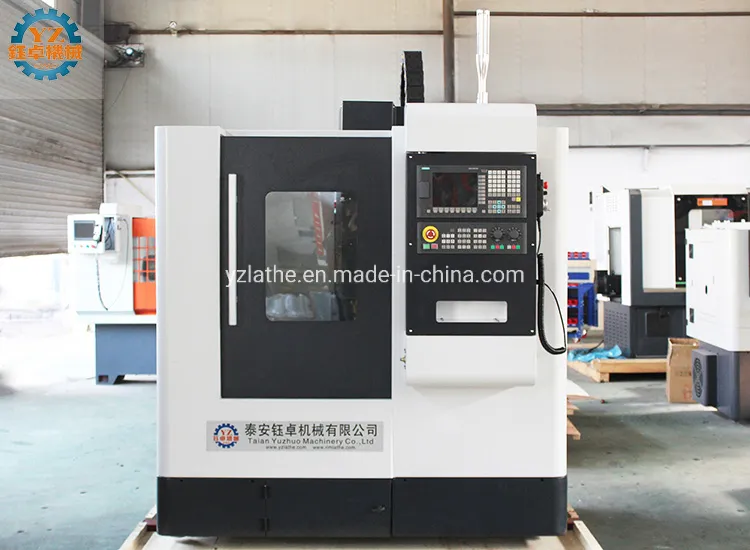

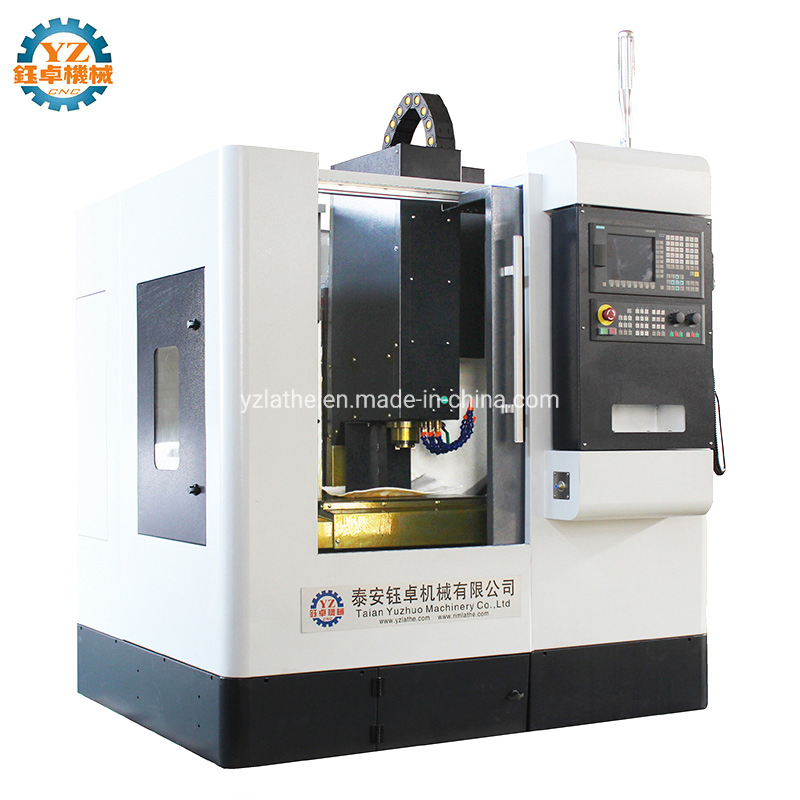

Machine Images
Vmc300 Small Vmc Machine Ce Approved Vmc Vertical CNC Machine Center

Vmc300 Small Vmc Machine Ce Approved Vmc Vertical CNC Machine Center

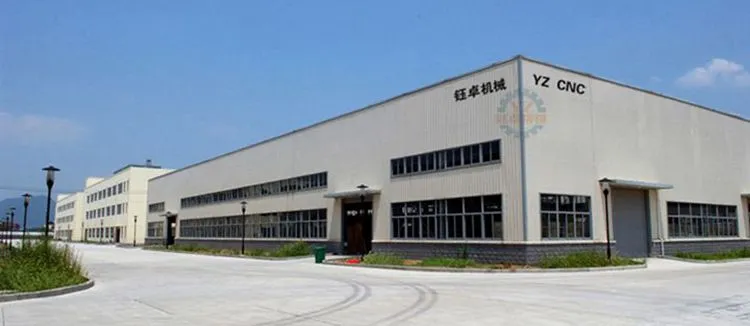

Company Infomation
Vmc300 Small Vmc Machine Ce Approved Vmc Vertical CNC Machine Center

Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.

Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.

Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.

CE Certifications
Vmc300 Small Vmc Machine Ce Approved Vmc Vertical CNC Machine Center

Foreign Customers
Vmc300 Small Vmc Machine Ce Approved Vmc Vertical CNC Machine Center

Contact Us
If any interest about our cnc lathe, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
