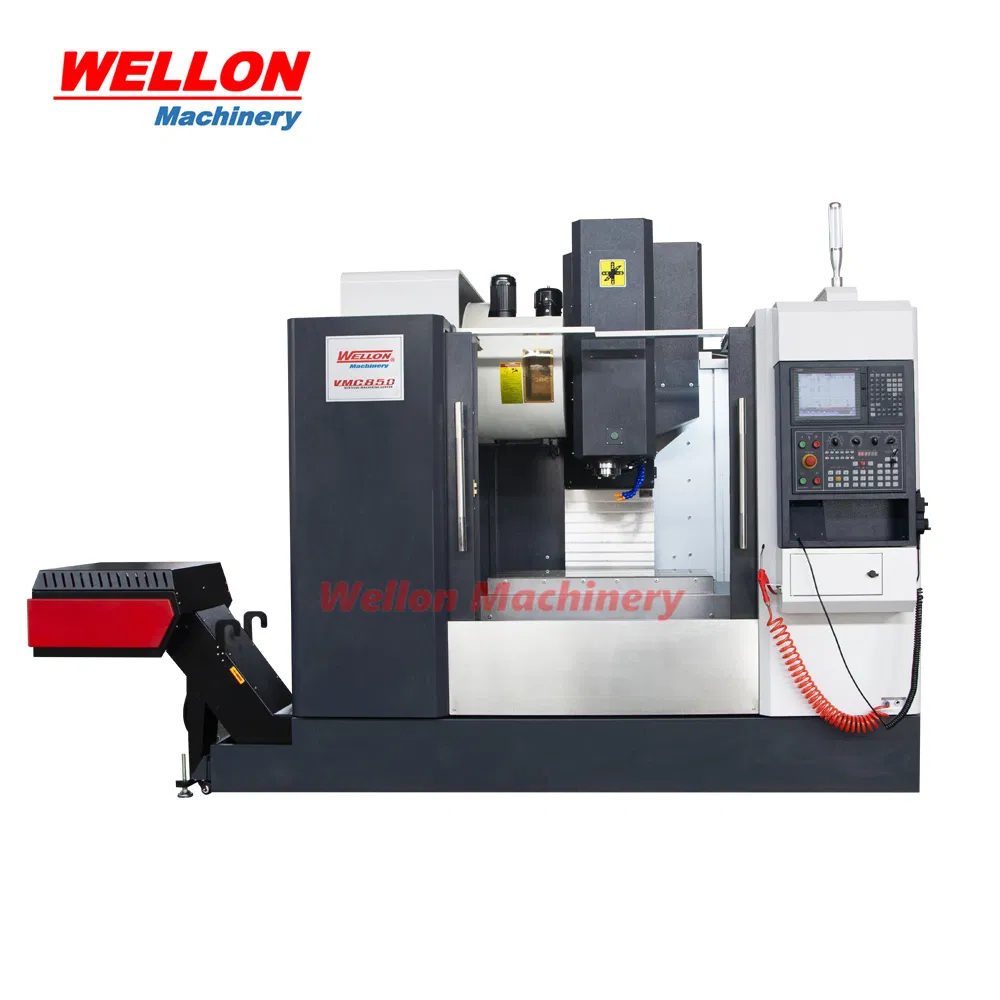

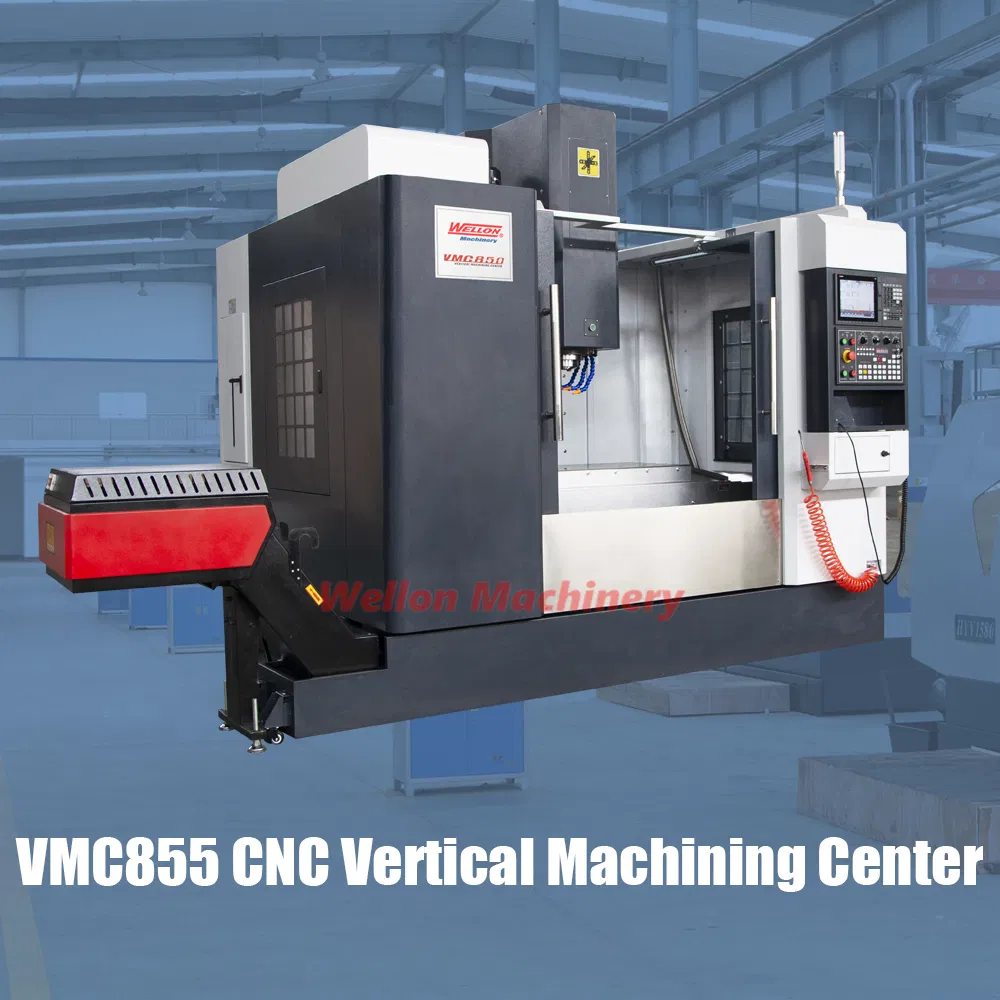

Hot Sales CNC Vertical Machining Center Vmc855 Economic CNC Vertical Milling Machine
Products Description:Main configuration & accessories:1. Resin sand casting, Meehanite HT-300;3. X, Y, Z rails adopt stainless steel telescopic cover;4. Roller type linear guideway from Taiwan5. Ball lead screw from Taiwan6. Standard with belt driven spindle, optional for direct driven spindle;7......
Send Inquiry
Product Description
Products Description:
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:
Standard Accessories:
Fanuc 0i MF control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Fanuc servo drive motor
Main motor: Fanuc spindle motor

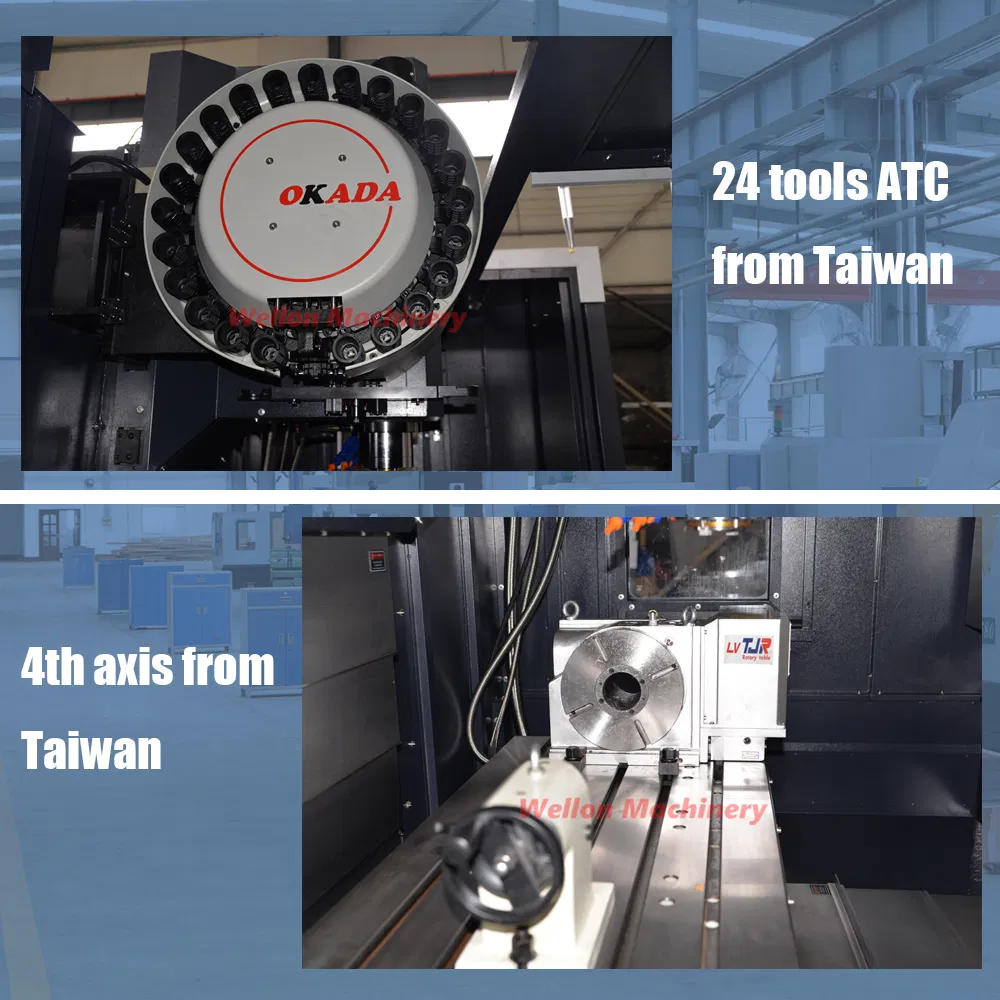

24 tools Disc type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system,
work lamp,
Tri-color indication lamp,
Air gun,
Heat exchanger in cabinet,
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from taiwan Hiwin,
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
Nitrogen balance cylinder
Air conditioner for electricity cabinet
4th Axis or 5th Axis

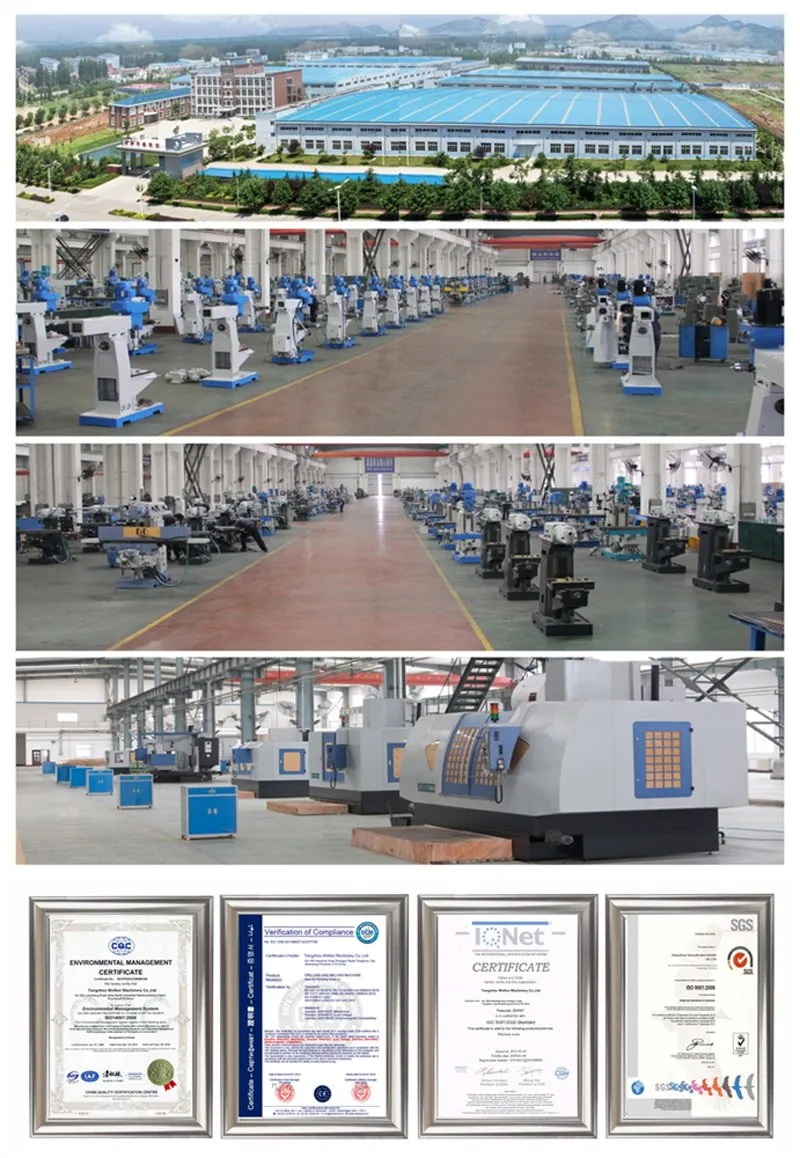

Company Information:
Contact Us:
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:
| Item | Unit | VMC855 |
| Capacity | ||
| X axis travel | mm | 800 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 550 |
| Spindle nose to worktable | mm | 150-650 |
| Spindle center to column | mm | 550 |
| Leadscrew and guideway size | ||
| Leadscrew diameter X,Y,Z | mm | Φ40 |
| Linear guideway width X,Y,Z | mm | 35/35/35(Roller) |
| Worktable size | ||
| Worktable Length | mm | 1000 |
| Worktable width | mm | 500 |
| Max loading capacity | kg | 500 |
| Spindle | ||
| Spindle taper | BT40-150 | |
| Spindle speed | rpm | 8000 |
| Main motor power | kw | 7.5/11 |
| Feeding system | ||
| Fast moving speed (X/Y/Z) | m/min | 48/48/48 |
| Cutting speed | mm/min | 1-10000 |
| Feed motor power | N/M | 12/12/22 |
| Tool Magazine | ||
| Capacity | pcs | Arm type 24 |
| Max tool diameter | mm | 120 |
| Max tool weight | kg | 8 |
| Max tool length | mm | 300 |
| Accuracy | ||
| Positioning accuracy | mm | 0.008 |
| Repeat accuracy | mm | 0.005 |
| Machine dimensions | ||
| Length | mm | 3000 |
| Width | mm | 2300 |
| Height | mm | 2900 |
| Weight | kg | 5400 |
Standard Accessories:
Fanuc 0i MF control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24 tools Disc type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system,
work lamp,
Tri-color indication lamp,
Air gun,
Heat exchanger in cabinet,
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from taiwan Hiwin,
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
Nitrogen balance cylinder
Air conditioner for electricity cabinet
4th Axis or 5th Axis
Company Information:
Contact Us:
