Hmc630d Horizontal Machining Center with Fanuc System
Product DescriptionHMC630D Heavy Cutting Single Position Inverted T Structure CNC Horizontal Machining Center Performance CharacteristicsHorizontal machining center has an inverted T structure with high spindle speed, high rigidity and large torque. This series of machines has perfect performance, s......
Send Inquiry
Product Description

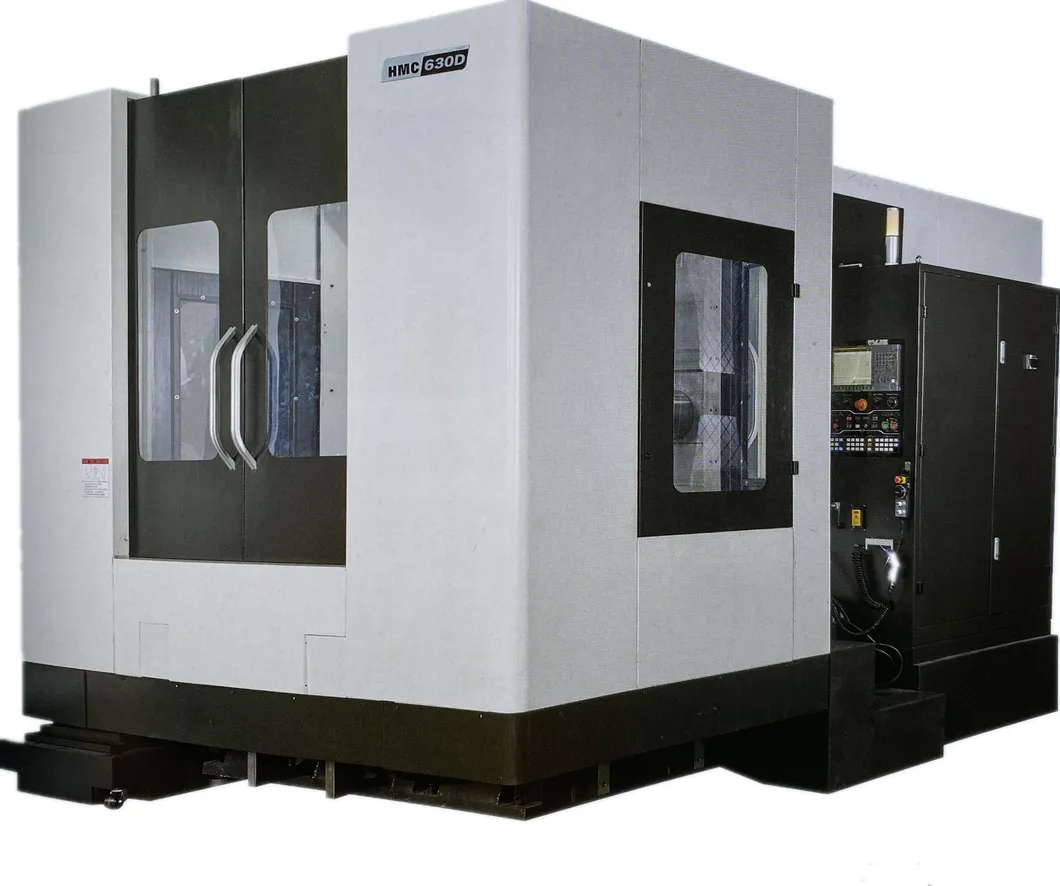

HMC630D Heavy Cutting Single Position Inverted T Structure CNC Horizontal Machining Center
Performance Characteristics
Horizontal machining center has an inverted T structure with high spindle speed, high rigidity and large torque. This series of machines has perfect performance, stable precision, It is suitable for processing various of box parts and 2D and 3D hook surfaces. It is a key equipment for machining box parts in machinery, automobile, ship, textile machinery, printing machinery, agricultural machinery and other industries.
Model | unit | HMC630D (inverted T type) |
Table travel (X.Y.Z) | mm | 1000x800x800 |
Table size | mm | 630x630 |
Max.load of worktable | kg | 1200 |
Worktable indexing | 1°x360° | |
Worktable positioning accuracy | arc-sec | 10" |
Worktable re-positioning accuracy | arc-sec | 2" |
Repid feed speed | m/min | 24/24/24 |
Spindle speed | rpm | 30-3000 |
Torque of spindle | N.m | 660(gear) |
Tool shank type | BT50 | |
Main motor power | kw | 15/18.5 |
Tool magazine capability | qty | 24 (arm type) |
Tool weight | kg | 25 |
Positioning accuracy(X.Y.Z) | MM | ±0.005/300 JIS |
Repeat positioning accuracy (X.Y.Z) | MM | ±0.003/300 JIS |
Machine weight | kg | 13000 |
Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there?
Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
