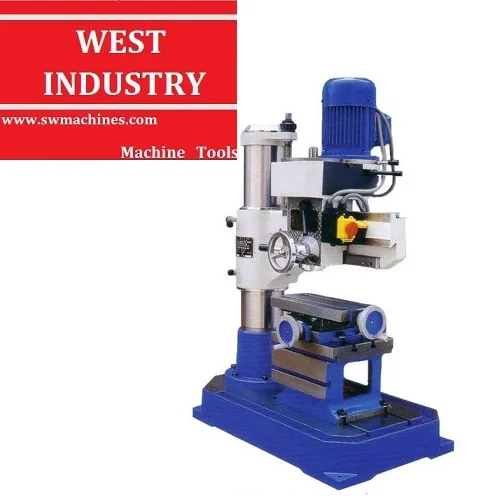

Bench Type Drilling and Milling Machine with CE

Product Description

Product Name: Drilling and Milling Machine DM20

Performance:

·  Light universal drilling and milling machine;
·  Milling, drilling, tapping, boring, reaming;
·  Rocker swivels 360 degree;
·  Micro feed precision;
·  Headstock parallel movement on rocker;
·  Heavy-duty tapered roller bearing spindle
·  Positive spindle lock;
·  Adjustable gibes on table.

Standard Accessories:

·  Drawbar
·  Adapter
·  Mandrel
·  Drilling chuck
·  Arbor
·  T slot bolt
·  Tilted wedge
·  Oil gun
·  Hexagonal wrenches

Optional Accessories:

·  End mill(tool steel)
·  DRO
·  End mill(carbide cutter)
·  Spring collect
·  Flat nose pliers
·  Milling collect 8pcs/set
·  Milling clamp 58-PC
·  Cooling pump
·  Lamp

Main Technical Data of the Drilling and Milling Machine:

Model		DM20
Max. drilling capacity	Iron	20 mm
	Steel
Max. milling capacity	Face	63 mm
	End	12 mm
Spindle taper		MT3
Spindle stroke		90 mm
Radial rise-fall stroke		370 mm
Spindle speed(rpm)	50Hz	210.380.710.1200.2000 rpm
	60Hz
Max track		500mm
Power and speed of motor		0.75kw / 910 rpm
Net/Gross weight		354 Kg / 400 Kg
Package size		1130 x 560 x 1225mm
