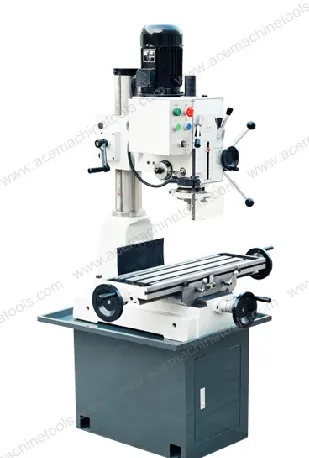

China Drilling and Milling Machine (DM7020G/DM7032G/DM7040G/DM7045G)

Product Description

Drilling And Milling Machine
DM7020G DM7032G DM7040G DM7045G

Items: DM7020G DM7032G DM7040G DM7045G

1. Max face mill capacity: 20/32/40/45mm

2. Max end mill capacity: 63/63/80/80mm

3. Spindle travel: 85mm and 130mm

Features:
1. Geer-driven and round column

2. Milling, drilling., tapping, boring and reaming

3. Head swivels ± 90° Vertically

4. Micro feed precision

5. Adjustable gibs on table precision.

6. Strong rigiditypowerful cutting and precisely positioning

ITEM	DM7020G	DM7032G	DM7040G	DM7045G
Drilling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Distance from spindle nose to table	439mm	440mm	440mm	440mm
Min.distance from spindle axis to column	197.5mm	272.5mm	272.5mm	272.5mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angle of headstock(horizontally/perpendicularly)	360°/±90°	360°/±90°	360°/±90°	360°/±90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/gross weight	130kg/190kg	315kg/365kg	318kg/368kg	320kg/370kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	48pcs/20 ' container	36pcs/20 ' container	36pcs/20 ' container	36pcs/20 ' container
