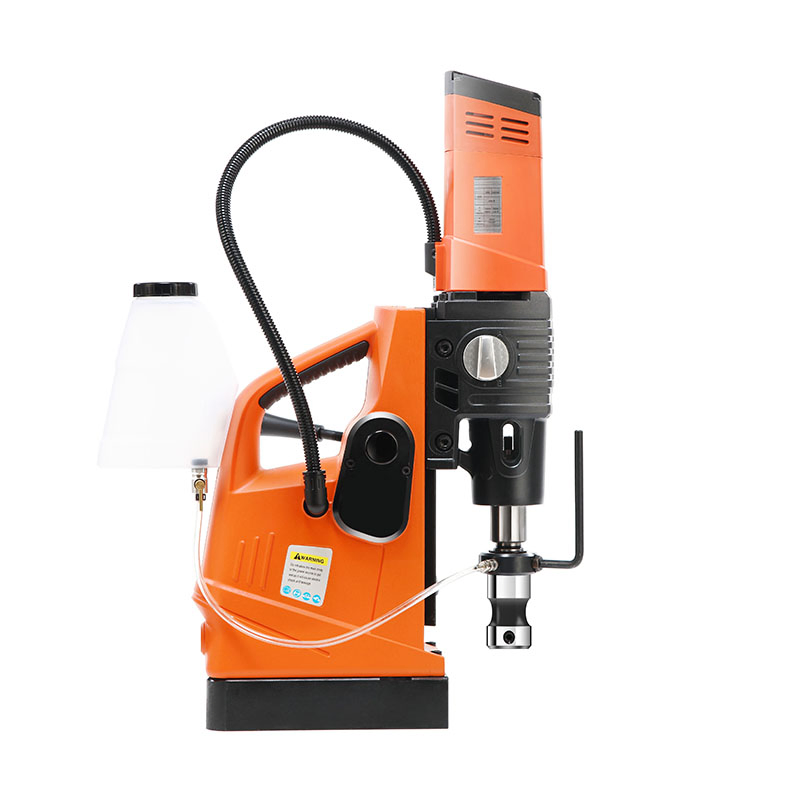

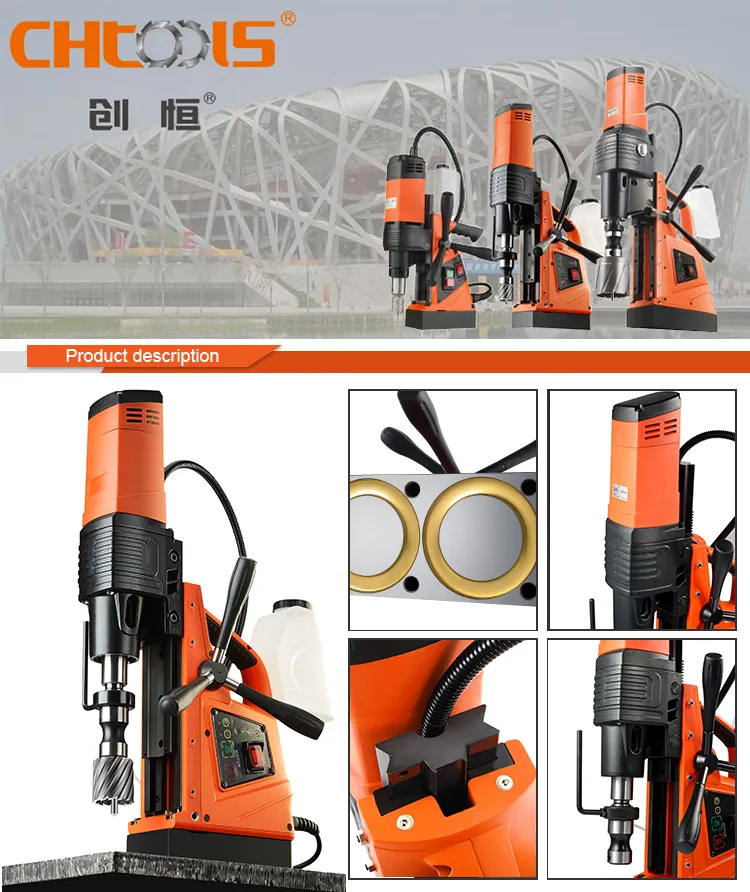

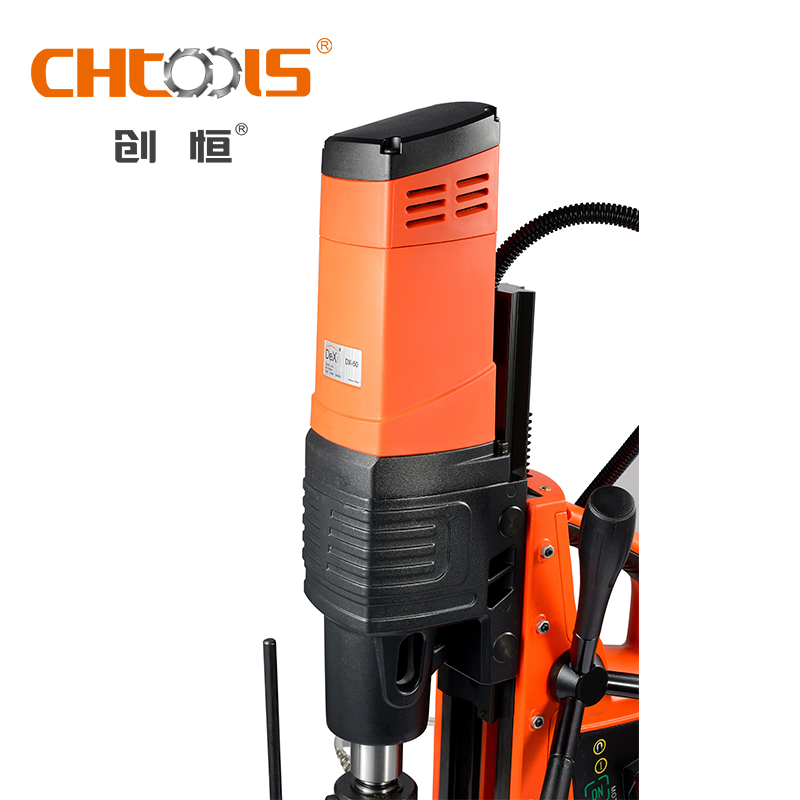

Dx- 50 220V 1500W 15000n Mt3 Magnetic Base Drill
Product TypeDX-50Motor rated power1500WLoad speed250/450rpmTool holderMT3Magnetic adhesion15000NThe max cutter capacity 50mm (2")The max cutting depth75mm (3")The max diameter of twist drill31.5mm (1-1/4")The min cutter depth10mmStroke170mmMotor can adjust the height to130mmMagnetic d......
Send Inquiry
Product Description
| Product Type | DX-50 |
| Motor rated power | 1500W |
| Load speed | 250/450rpm |
| Tool holder | MT3 |
| Magnetic adhesion | 15000N |
| The max cutter capacity | 50mm (2") |
| The max cutting depth | 75mm (3") |
| The max diameter of twist drill | 31.5mm (1-1/4") |
| The min cutter depth | 10mm |
| Stroke | 170mm |
| Motor can adjust the height to | 130mm |
| Magnetic drill machine dimension | 375*230*450mm |
| Magnetic base size | 210*100*45mm |
| Total weight | 25.4kg |
| Countersunk drilling | 10-50mm |
Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool
supplier.
