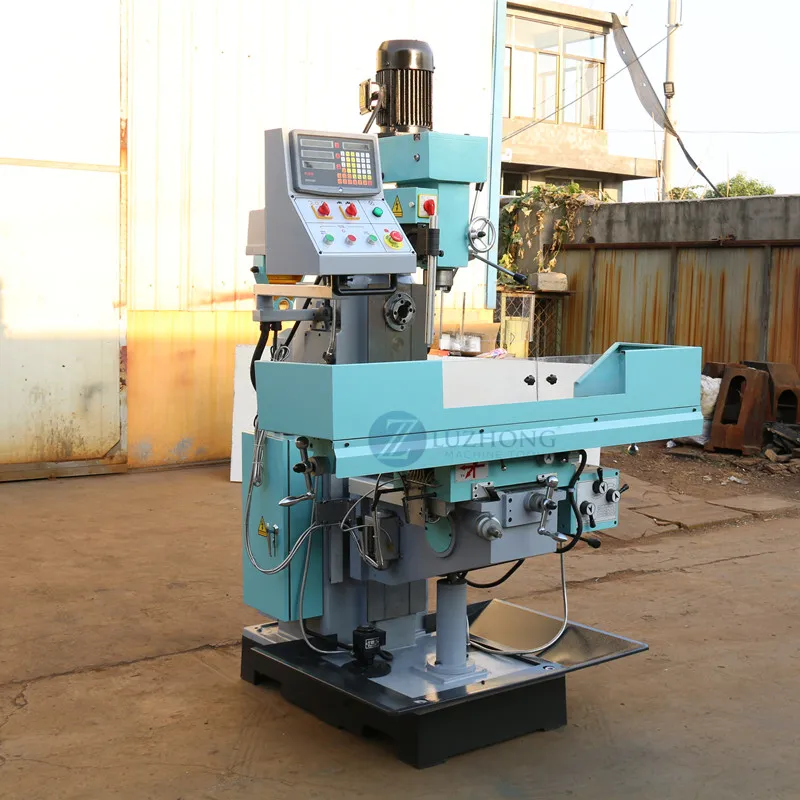

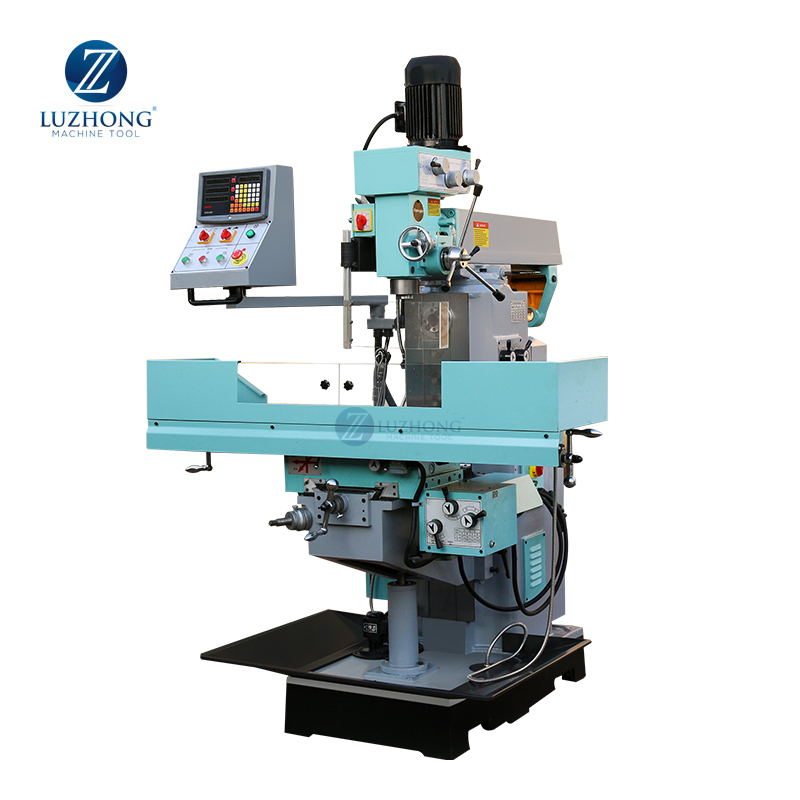

China factory Price drilling and milling machine ZX6350D lifting milling machine
China factory Price drilling and milling machine ZX6350D lifting milling machineProduct DescriptionDetailed PhotosProduct ParametersThe main performance characteristics:1.Gear transmission for vertical/hozizontal milling head2.ZX6350C :X axis auto feed,Y/Z axis manual feedZX6350D :X/Y axis auto feed......
Send Inquiry
Product Description
China factory Price drilling and milling machine ZX6350D lifting milling machine
The main performance characteristics:
1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
ZX6350D :X/Y axis auto feed,Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:
| Specifications | Units | ZX6350D |
| Table size | mm | 1120x280 |
| T Slot number/width/pitch | mm | 5/14/50 |
| Longitudinal travel | mm | 630 |
| Cross travel | mm | 240 |
| Vertical travel | mm | 430 |
| Vertical milling capacity | mm | 32 |
| Face milling capacity | mm | 120 |
| Drilling capacity | mm | 50 |
| Longitudinal feeds range | Mm/min | 15.1-266.5 ,6steps |
| Cross feeds range | Mm/min | 15.1-266.5 ,6steps |
| Vertical milling spindle travel | mm | 120 |
| Spindle nose to table surface | mm | 100-530 |
| Travel of movable arm | mm | 360 |
| Vertical milling spindle taper | MT4 | |
| Horizontal milling spindle taper | MT4 | |
| Vertical milling spindle speeds | R/min | 115-1750 ,8 steps |
| Horizontal milling spindle speeds | R/min | 32-1320 ,12 steps |
| Vertical milling motor | kw | 1.5/0.85 |
| Main motor | kw | 2.0/2.4 |
| Overall dimensions | mm | 1400x1300x2100 |
| Net weight | Kg | 1300 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
