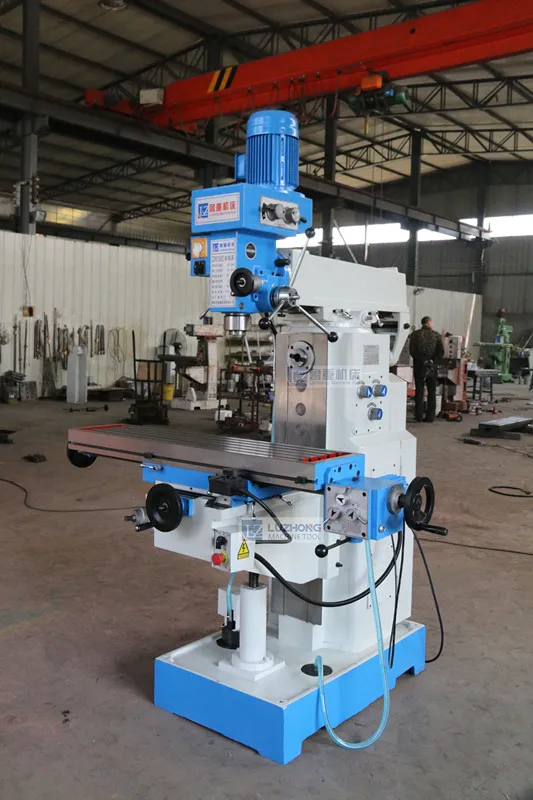

Multi-Functin Gear Drive Vertical Milling ZX6350C ZX6350D Drilling and Milling Machine

Product Description

Multi-Functin Gear Drive Vertical Milling ZX6350C ZX6350D Drilling and Milling Machine

Multi-Functin Gear Drive Vertical Milling ZX6350C ZX6350D Drilling and Milling Machine

The main performance characteristics:
1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
ZX6350D :X/Y axis auto feed,Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:

Specifications	Units	ZX6350C	ZX6350D
Table size	mm	1120x280	1120x280
T Slot number/width/pitch	mm	5/14/50	5/14/50
Longitudinal travel	mm	630	630
Cross travel	mm	280	240
Vertical travel	mm	430	430
Vertical milling capacity	mm	32	32
Face milling capacity	mm	100	120
Drilling capacity	mm	50	50
Longitudinal feeds range	Mm/min	24-720	15.1-266.5 ,6steps
Cross feeds range	Mm/min	-	15.1-266.5 ,6steps
Vertical milling spindle travel	mm	120	120
Spindle nose to table surface	mm	140-570	100-530
Travel of movable arm	mm	360	360
Vertical milling spindle taper		MT4	MT4
Horizontal milling spindle taper		MT4	MT4
Vertical milling spindle speeds	R/min	115-1750 ,8 steps	115-1750 ,8 steps
Horizontal milling spindle speeds	R/min	32-1320 ,12 steps	32-1320 ,12 steps
Vertical milling motor	kw	1.5/0.85	1.5/0.85
Main motor	kw	2.0/2.4	2.0/2.4
Overall dimensions	mm	1400x1300x2100	1400x1300x2100
Net weight	Kg	1300	1300

Multi-Functin Gear Drive Vertical Milling ZX6350C ZX6350D Drilling and Milling Machine

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
