High Quality Hot Sale Small Hole EDM Drilling Machine Dd703z
High quality hot sale small hole EDM drilling machine DD703Z1.The machine can process hole diameter of Φ 0.3 ~ Φ 3.0mm, and the maximum depthdiameter ratio can reach more than 300:1.2.The processing speed can be up to 5-40mm per minute, the servo stroke is 300, the ultra long electro......
Send Inquiry
Product Description

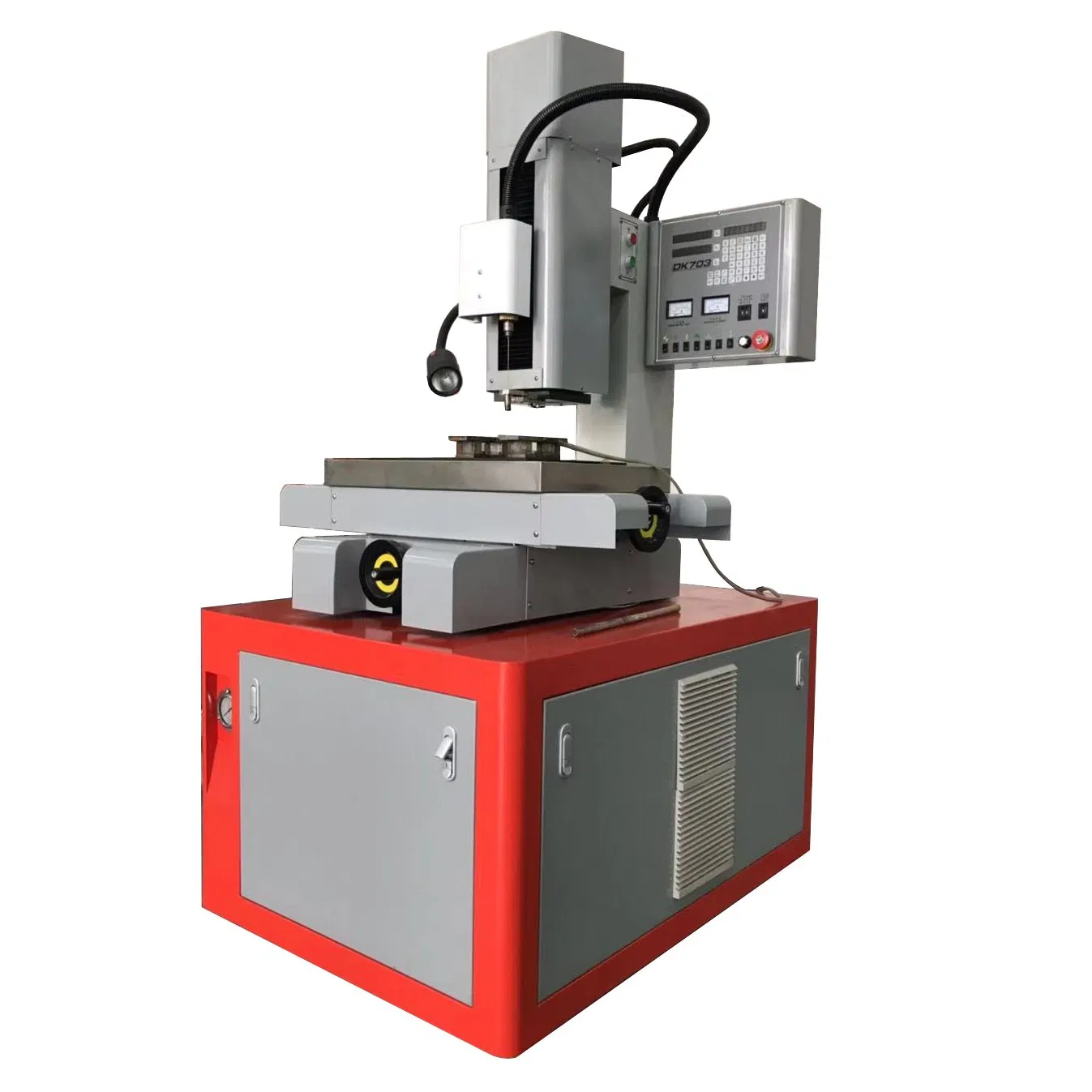

High quality hot sale small hole EDM drilling machine DD703Z
1.The machine can process hole diameter of Φ 0.3 ~ Φ 3.0mm, and the maximum depth
2.The processing speed can be up to 5-40mm per minute, the servo stroke is 300, the ultra long electrode tube can be used, and the drug saving electrode tube is 15%.
3.The machine be able to process various conductive materials such as stainless steel, quenched steel, hard alloy, copper, aluminum, etc.
4.The machine can penetrate directly from inclined plane and curved surface3.The machine be able to process various conductive materials such as stainless steel, quenched steel, hard alloy, copper, aluminum, etc.
5.The servo lifting adopts double linear guide rail and electric lifting to ensure the processing accuracy and speed of the product
6.Spindle height 300mm
7.The machine bed is equipped with a water pump pressure observation window, which makes it more convenient and simple to observe and adjust the water pump pressure.

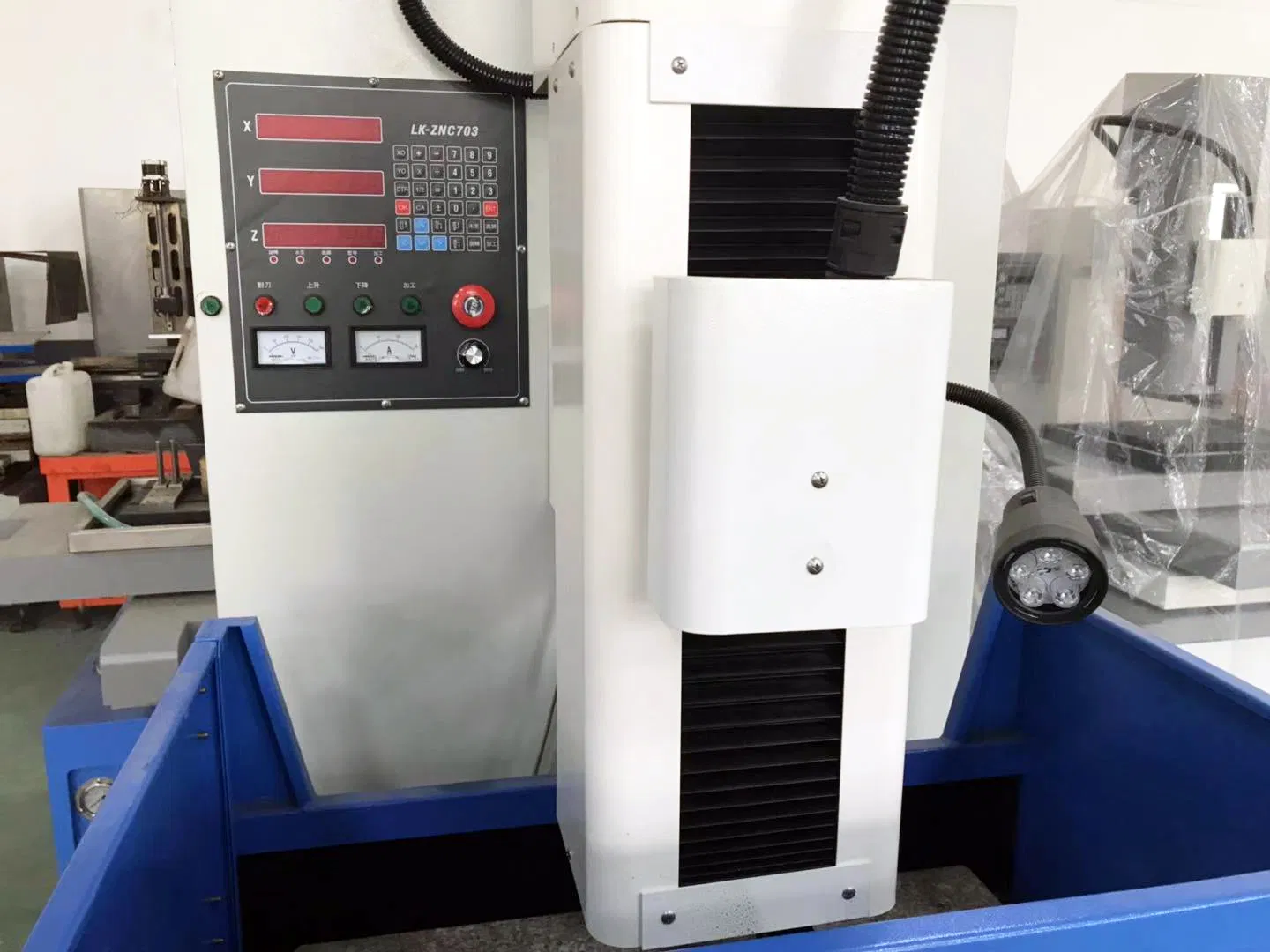

8.x-axis and Y-axis of worktable are equipped with grating digital display, with accurate operation
High quality hot sale small hole EDM drilling machine DD703Z
| Parameters | DD703Z |
| Worktable | 360*420 mm |
| Worktable travel | 300*400 mm |
| Spindle head travel | 300 mm |
| Servo stroke | 400 mm |
| Electrode diameter | 0.3-6.0 mm |
| Maximum processing speed | 5-40 |
| Rotating head speed | 20-120 |
| Maximum depth diameter ratio | 300:1 |
| Working pressure | 7 |
| Maximum processing current | 50A |
| Maximum power consumption | 5 KVA |
| Control mode | Z axis automatic |
| Worktable Weight bearing | 250-300 kg |
| Working tank | 25 L |
| Working fluid | Water,saponification liquid |
| Working fluid filtration mode | Shallow gap |
| Machine tool power supply | 380V50Hz |
| Secondary stroke control mode | Motor-driven |
| DRO | Three axis digital display |
| Overall dimensions | 1300*1200*2120 mm |
| Machine weight | 750 kg |
