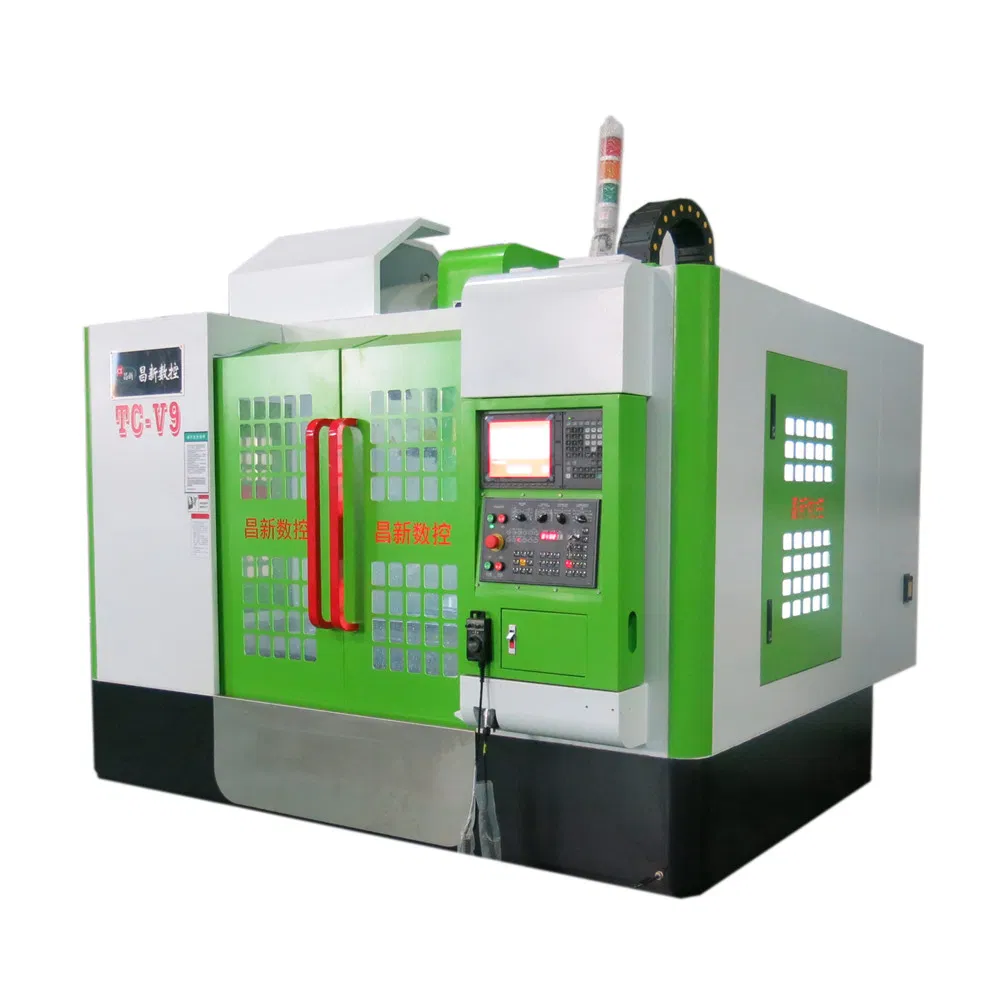

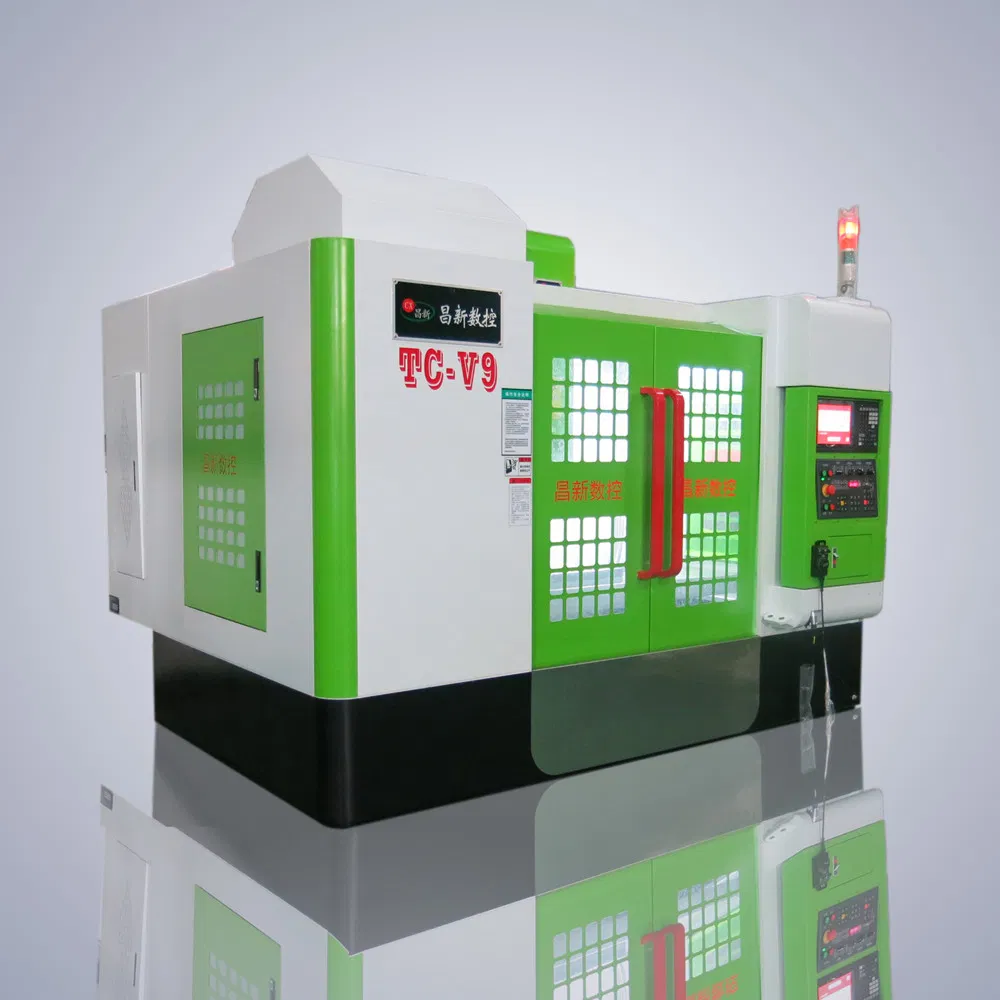

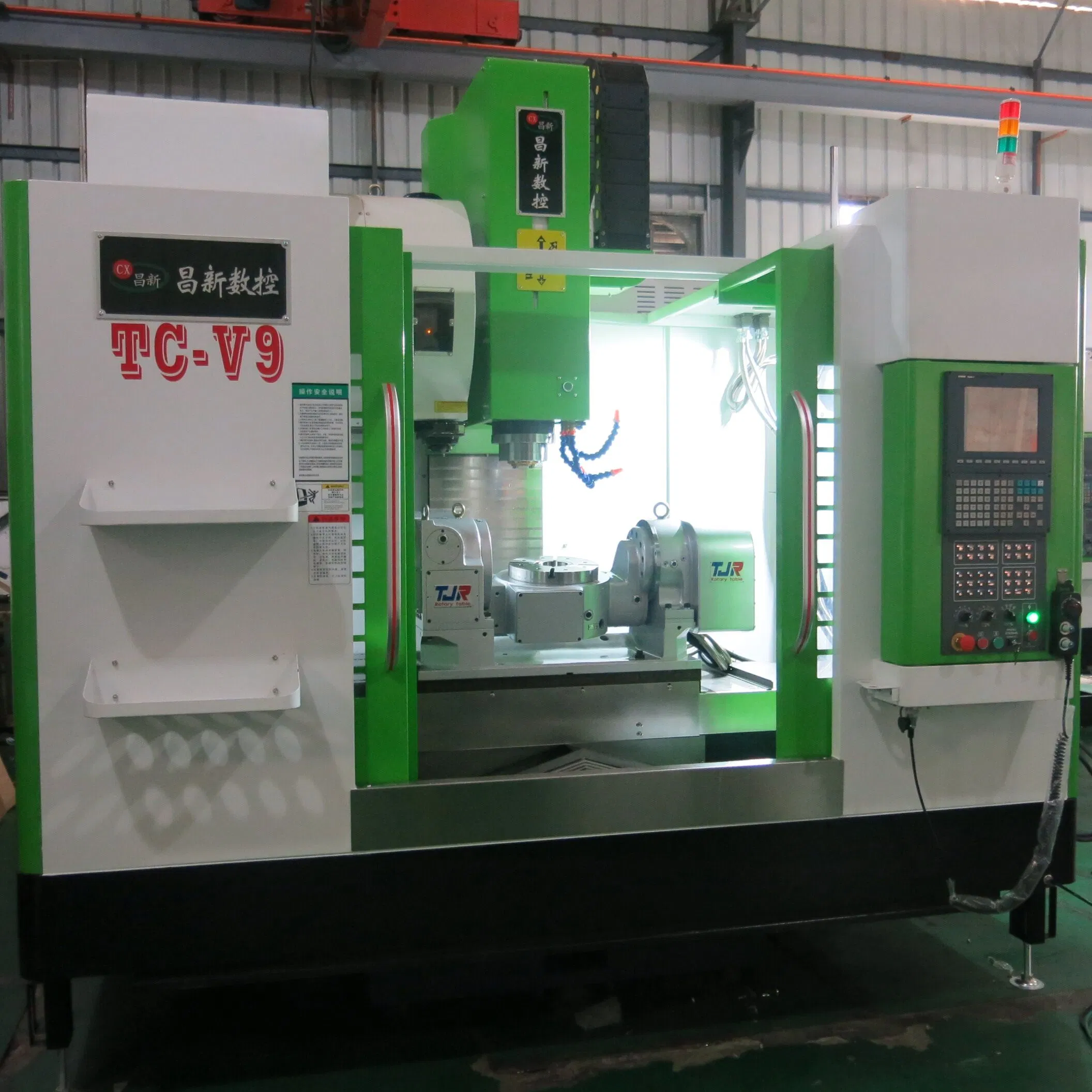

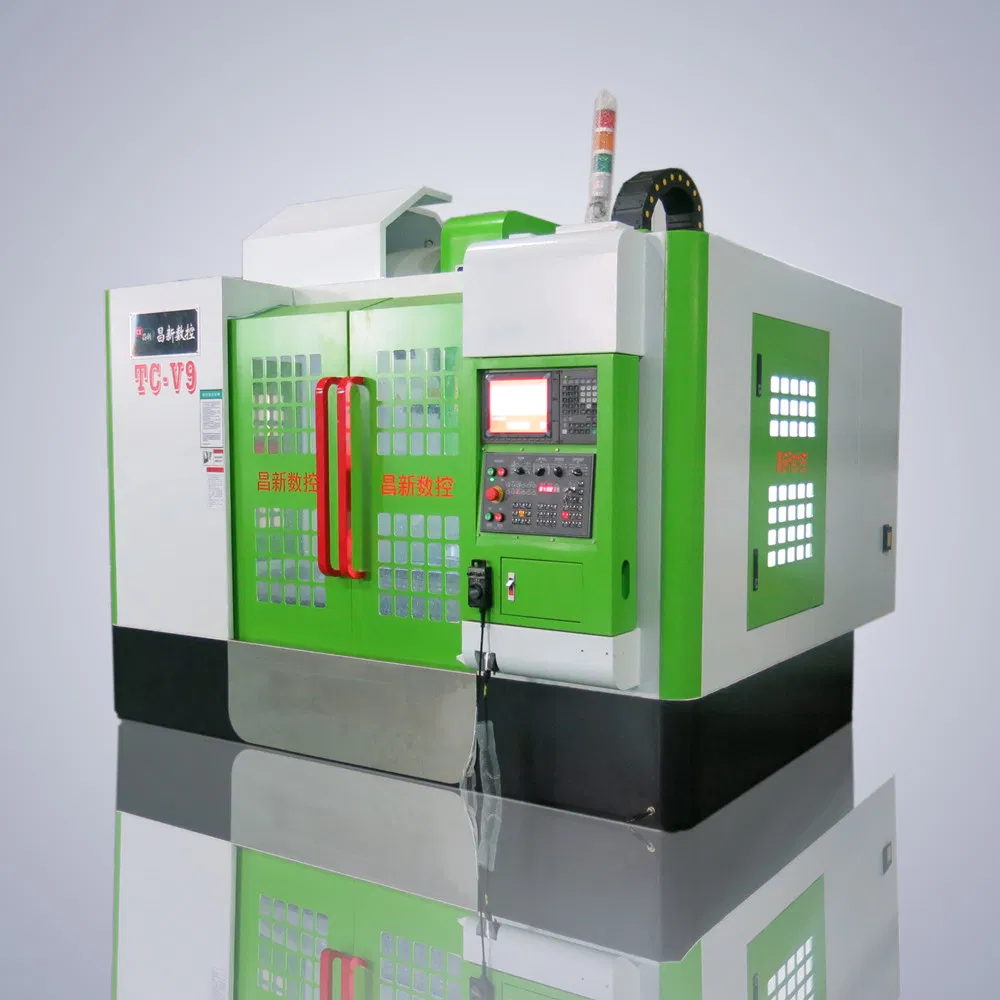

New Condition After Sales Service Overseas Provided Vmc 960 CNC Milling Machine Center Vertical with Fanuc System 3axis/4 Axis/5 Axis Tc-V9
New condition after sales service overseas provided Vmc 960 CNC Milling Machine center vertical with Fanuc system 3axis/4 Axis/5 Axis Tc-V9Specifications of TC-V9:X/Y/Z-Axis Travel900/600/600mmDistance from Spindle Nose to Table120-720mmDistance from Spindle Center to Column Guide Rail620mmWorking......
Send Inquiry
Product Description
New condition after sales service overseas provided Vmc 960 CNC Milling Machine center vertical with Fanuc system 3axis/4 Axis/5 Axis Tc-V9
Specifications of TC-V9:
Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
4th/5th rotary table optional:
Our certificates:
Our Customers:
Specifications of TC-V9:
| X/Y/Z-Axis Travel | 900/600/600mm |
| Distance from Spindle Nose to Table | 120-720mm |
| Distance from Spindle Center to Column Guide Rail | 620mm |
| Working Table Size | 600*1000mm |
| Table Max Load | 500kg |
| T Slot | 5-18T*130 |
| Spindle Speed | 12000rpm |
| Spindle Motor Power | 5.5-7.5kw |
| Tool changing time | 2.3sec |
| Maxmum Tool weight | 12kg |
| Maxmum tool diameter | Φ120mm |
| X/Y/Z-Axis Motor Power | 1.8/1.8/3.0kw |
| Rapid Traverse(X/Y/Z) | 48000mm/48000mm/48000mm/min |
| Cutting Speed | 0-12000mm/min |
| Spindle Taper Diameter | BT40/150mm |
| Positioning Accuracy (Japan JIS standard) | ±0.005mm/300mm |
| Repeat Positioning Accuracy (Japan JIS standard) | ±0.003mm/300mm |
| Total Electricity Demand | 20kw |
| Machine Size (L*W*H) | 3100mm*2600mm*2800mm |
| Machine Weight | 6.5ton |
| Accessories |
|

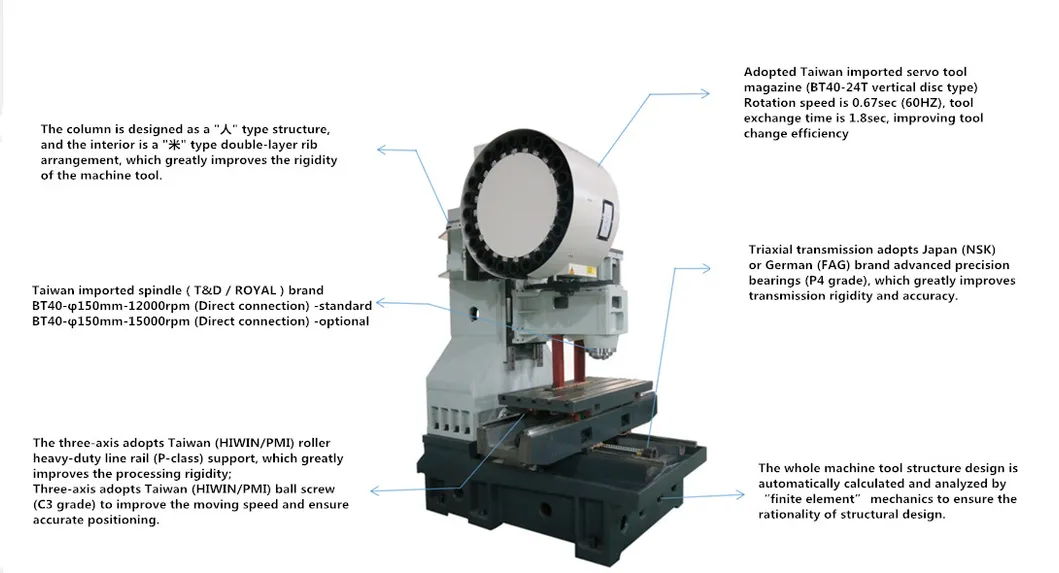

| Machine Body | Casting three linear guide ways high-strength body |
| Spindle | original import Taiwan WLT / TD, 12000 rpm ,direct/belt connection |
| System | Original Japan imported control system the latest version Mitsubishi M80A |
| Spindle motor | Imported Japan Mitsubishi servo motor 5.5-7.5KW |
| Three-axis motor | Imported Japan Mitsubishi servo motor (XY axis:1.8kw , Z axis: 3.0kw) |
| Automatic lubrication system | pressurized volumetric automatic oiler, automatic balance distribution of lubricants (joint venture Baoteng brand oiler) |
| Head balance system | The body comes with a counterweight balancing system |
| High pressure chip system | high pressure motor, high pressure flushing (joint venture Sinaer brand water pump) |
| Screw | original Taiwan imported Hiwin screw |
| Spindle cooling | plus independent oil cooling system (joint venture Ruike brand oil cooler) |
| Tool Magazine | Taiwan Sanjie arm type with 24 BT40 tools capacity |
| Controller | standard Mitsubishi M80A color display |
| X, Y, Z bearings | standard German FAG or Japan NSK |
| Triaxial roller screw | standard Taiwan Taiwan Hiwin / PMI |
| Spindle Knife cylinder | Standard Taiwan North Kui / Hao Cheng |
| Couplings | Standard Germany BK3 SW*J |
| Wind system combined with solenoid valve (triple) | standard joint venture Ogreut |
| The main electrical accessories | standard Germany Schneider, Merlin Gerin |
| Other air pressure components | standard joint venture Ogreut |
| Circuit breakers, relays | standard Germany Schneider, Merlin Gerin |
| Electric box air fan | standard joint venture FuRuize |
| Transformer | standard joint venture AoHengda |
| Work LED lamp | standard Taiwan Ou Si |
| Hand control electronic hand wheel | standard Taiwan NEMICON |
| Three-axis telescopic shield | standard joint venture Zhenfei |
| Full cover | standard joint venture Jiancheng |
Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.

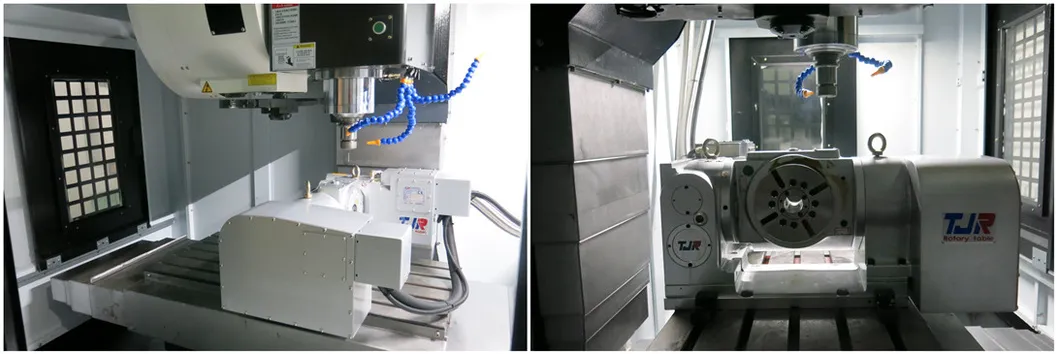

4th/5th rotary table optional:
Our certificates:
Our Customers:
