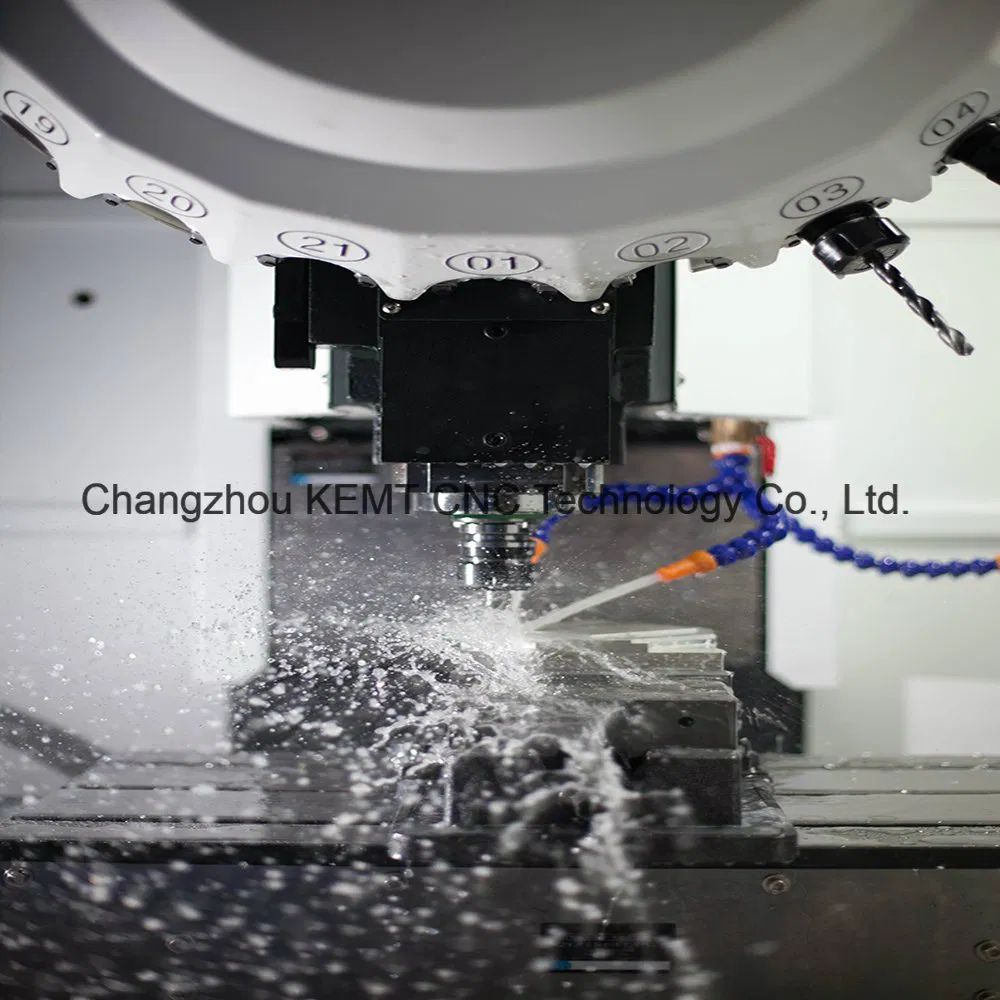

Tx600 High Speed CNC Milling Machine Tool for Auto Industry with Bt30
1. SpecificationItemsUnitSpecificationTX600TravelX-axis travel (left and right spindle)mm600Y-axis travel (front and rear)mm400Z-axis travel (upper and lower spindle)mm330Spindle nose to table distancemm150-480WorktableWorktable (length * width)mm700*400Worktable maximum loadkg300T-slotmm14*3*125Fe......
Send Inquiry
Product Description
1. Specification
2. Optional Accessories
hydraulic unit/NC rotary table/MPG/transformer/electric cabinet/column block
(100/150/200)mm/spindle cooling system/oil-mist collector/safety door lock/workpiece
online test/watergun

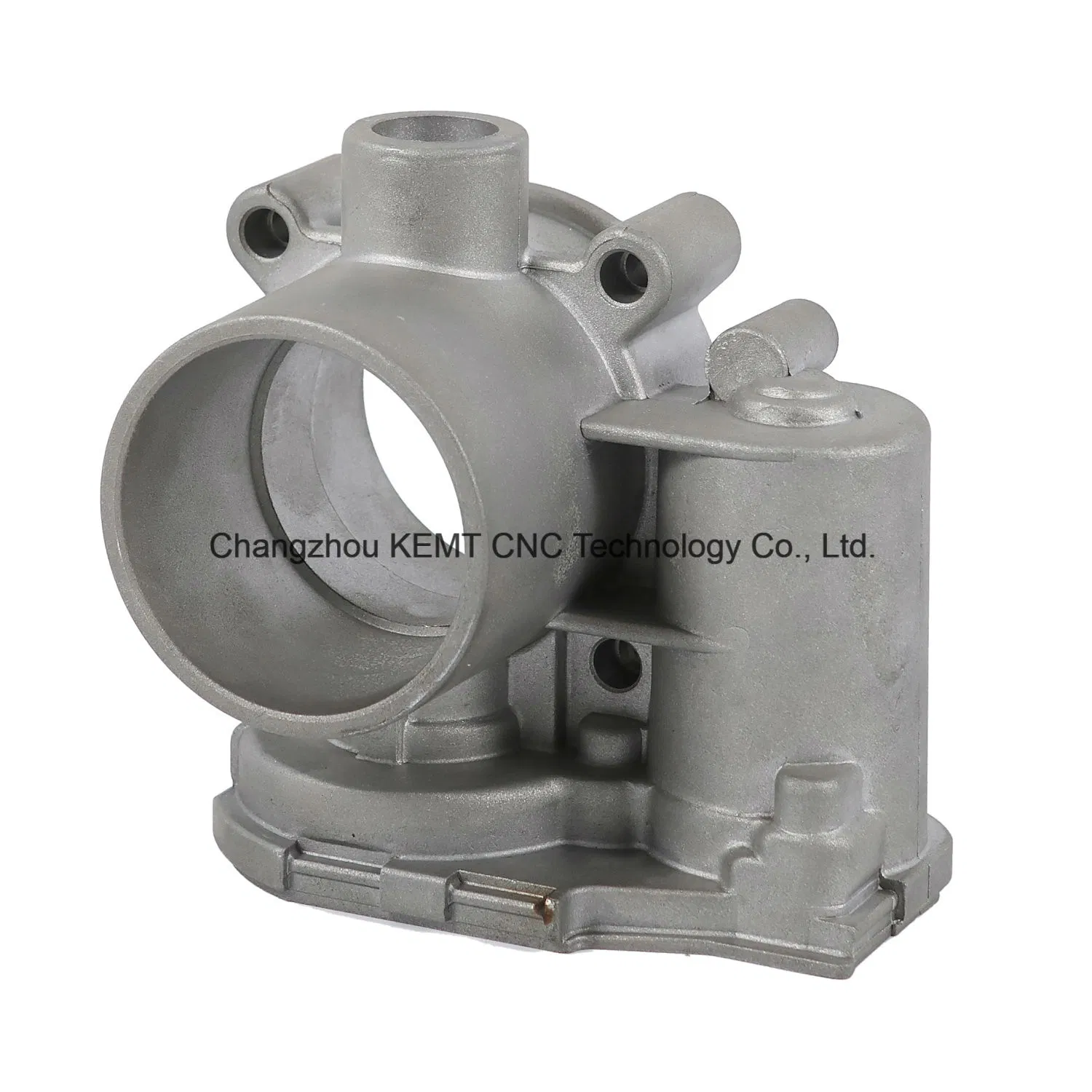

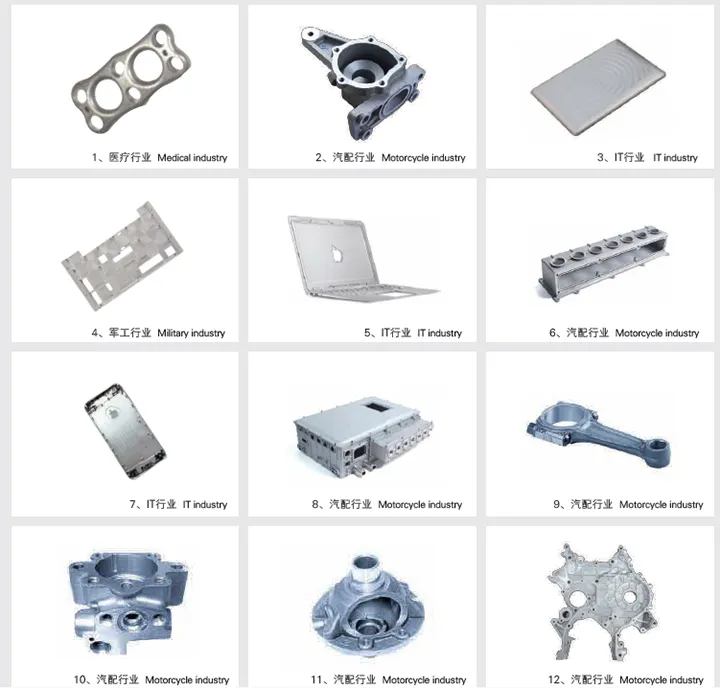

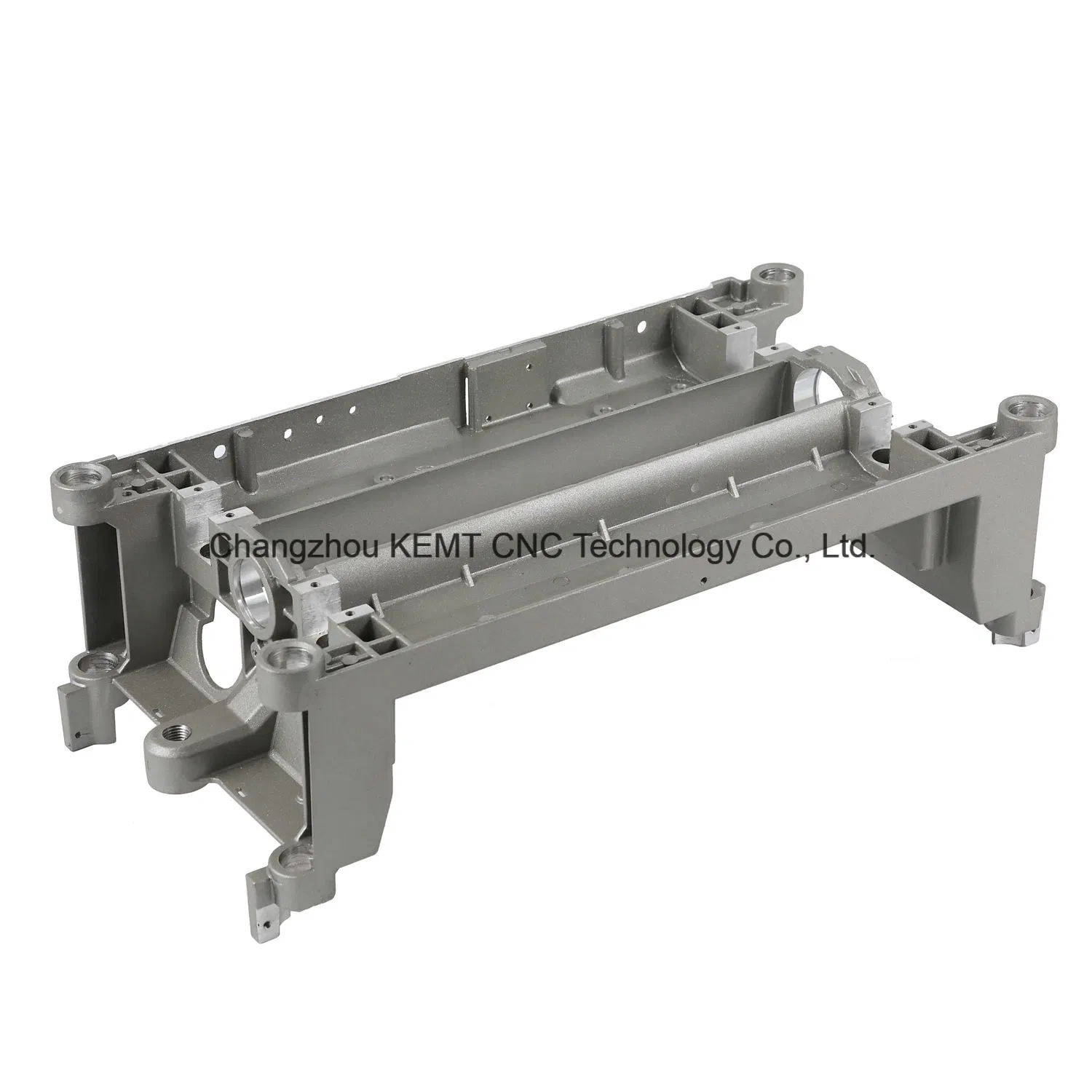

3. Part of applications

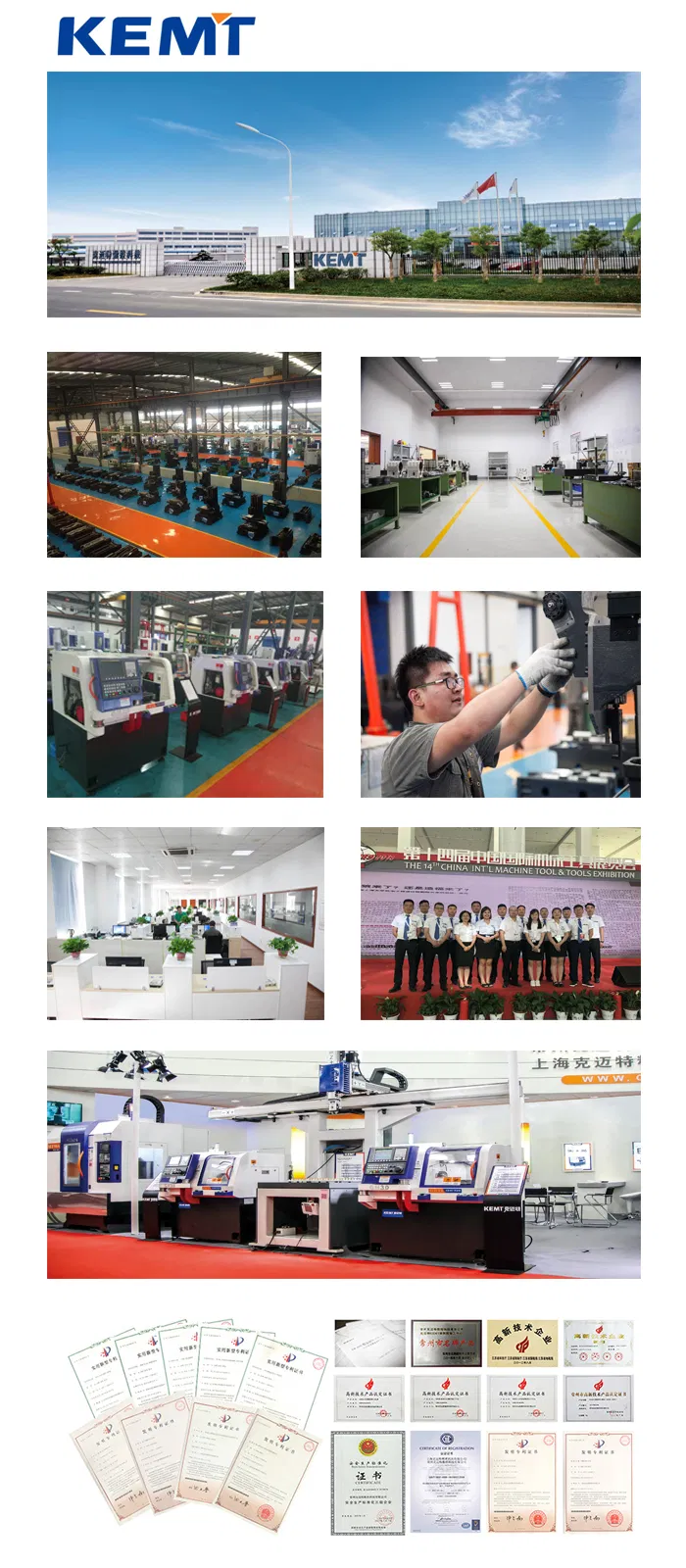

4. Factory Advantages
(1) Annual production: 2000sets.
(2) Spindle and tool changer are produced independently, based on German technology.
(3) R&D center: founded in 2006.
(4) Patents and honors: more than 50 certificates.
(5) Sales network: 9 regions, 23 offices in China; 5 branches around the world.
(6) 3 part warehouse: 1 in Shanghai, 1 in Changzhou and 1 at oveseas.
| Items | Unit | Specification | ||
| TX600 | ||||
| Travel | X-axis travel (left and right spindle) | mm | 600 | |
| Y-axis travel (front and rear) | mm | 400 | ||
| Z-axis travel (upper and lower spindle) | mm | 330 | ||
| Spindle nose to table distance | mm | 150-480 | ||
| Worktable | Worktable (length * width) | mm | 700*400 | |
| Worktable maximum load | kg | 300 | ||
| T-slot | mm | 14*3*125 | ||
| Feeding system | X/Y/Z fast displacement | m/min | 48/48/48 | |
| Cutting feeding rate | mm/min | 1-20000 | ||
| Rail form | X-axis guide-way | mm | 30 Ball liner guide-way | |
| Y-axis guide-way | mm | 30 Ball liner guide-way | ||
| Z-axis guide-way | mm | 30 Ball liner guide-way | ||
| Screw gauge | X-axis screw | mm | 28-16 | |
| Y-axis screw | mm | 28-16 | ||
| Z-axis screw | mm | 32-16 | ||
| Spindle | Spindle type | / | BT30 direct-connected | |
| Spindle speed | rpm | 20000 | ||
| Spindle power | KW | 5.5 | ||
| Spindle outer diameter | mm | 100 | ||
| Tool changer | Tool changer capacity | pcs | 21 | |
| Max. tool length | mm | 250 | ||
| Max. tool diameter | mm | 60 | ||
| Max. tool weight | kg | 3 | ||
| Machine | Use air pressure | kgf/CM2 | 6 | |
| Power supply | v | AC200±10% | ||
| Power capacity | KVA | 15 | ||
| Machine weight | kg | 3500 | ||
| Dimensions | mm | 2467x2050x2215 | ||
| NC system | / | MITSUBISHI M80 ( FANUC 0i-MF) | ||
| Display | / | 8.4 TFT LCD | ||
| Positioning accuracy | mm | 0.005/full travel | ||
| Repeat positioning accuracy | mm | 0.003/full travel | ||
2. Optional Accessories
hydraulic unit/NC rotary table/MPG/transformer/electric cabinet/column block
(100/150/200)mm/spindle cooling system/oil-mist collector/safety door lock/workpiece
online test/watergun
3. Part of applications
4. Factory Advantages
(1) Annual production: 2000sets.
(2) Spindle and tool changer are produced independently, based on German technology.
(3) R&D center: founded in 2006.
(4) Patents and honors: more than 50 certificates.
(5) Sales network: 9 regions, 23 offices in China; 5 branches around the world.
(6) 3 part warehouse: 1 in Shanghai, 1 in Changzhou and 1 at oveseas.
